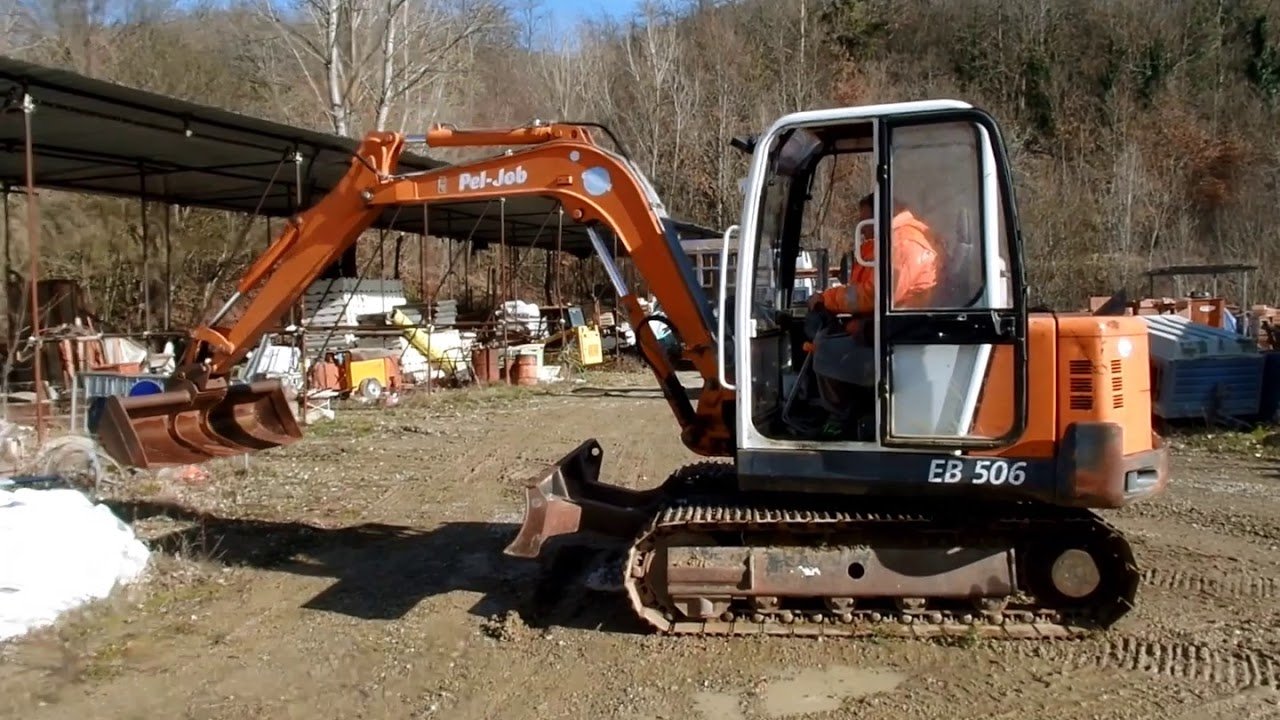

Pel-Job EB506EX

Series: Pel-Job Midi Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EB506EX from Pel-Job is part of the Pel-Job Midi Excavator series. The engine delivers 37.3 hp (25.1 kW), has 4 cylinders, with a displacement of 2,217.2 cm³. Torque is 139.1 Nm. Rated speed is 2,800 rpm. The unladen weight is 5,055 kg. Ground clearance is 371.9 mm. The tank holds 80.3 litres. Maximum torque is reached at 2,050 rpm. The pump delivers 102.6 l/min. Working pressure is 250 bar. The electrical system runs on 12 V. The engine fitted is the 104.22. The Pel-Job Midi Excavator series covers 3 models. Rated output within it ranges from 37.3 to 56.8 hp; the EB506EX sits at the bottom of that range with 37.3 hp. Its immediate neighbours are the EB706 above it with 56.8 hp. 21 Pel-Job models across 2 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine model	104.22correct
Power	37.3 hp (25.1 kW)correct
Rated speed	2,800 rpmcorrect
Torque	139.1correct
Speed at max. torque	2,050 rpmcorrect
Cylinders	4correct
Displacement	2,217.2 cm³correct

Dimensions and weights

Ground clearance	371.9correct
Unladen weight	5,055 kgcorrect

Drivetrain and chassis

System voltage	12 Vcorrect

Working data

Pump flow	102.6 l/mincorrect
Hydraulic pressure	250 barcorrect
Fuel tank capacity	80.3 lcorrect

Other data

Height	2,505.5correct

Where this model stands

Power-to-weight ratio: 5 kW/t (25 kW / 5.1 t)

Stronger than 2% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Pel-Job EB506EX have?

The Pel-Job EB506EX delivers 37.3 hp.

How much does the Pel-Job EB506EX weigh?

The unladen weight is 5,055 kg.

What engine does the Pel-Job EB506EX have?

4 cylinders, 2,217 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
