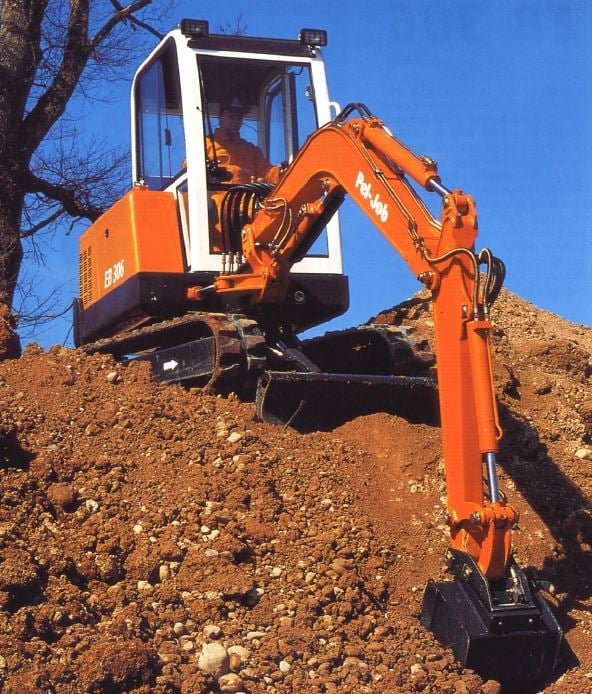

Pel-Job EB306

Series: Pel-Job Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the EB306, Pel-Job offers a model from the Pel-Job Mini Excavator series. The engine delivers 27.6 hp (17.2 kW), has 3 cylinders, with a displacement of 1,319.2 cm³. Torque is 77 Nm. Rated speed is 2,800 rpm. The unladen weight is 3,170 kg. Ground clearance is 280.4 mm. The tank holds 42 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 65.1 l/min. Working pressure is 250 bar. The electrical system runs on 12 V. The engine fitted is the S3L2. The Pel-Job Mini Excavator series covers 18 models. Rated output within it ranges from 19.3 to 42.6 hp; the EB306 sits in the lower part of that range with 27.6 hp. Its immediate neighbours are the Sirius below it with 19.3 hp and the EB25.4 above it with 27.8 hp. 21 Pel-Job models across 2 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelS3L2correct
Power27.6 hp (17.2 kW)correct
Rated speed2,800 rpmcorrect
Torque77correct
Speed at max. torque1,600 rpmcorrect
Cylinders3correct
Displacement1,319.2 cm³correct

Dimensions and weights

Ground clearance280.4correct
Unladen weight3,170 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow65.1 l/mincorrect
Hydraulic pressure250 barcorrect
Fuel tank capacity42 lcorrect

Other data

Height2,392.7correct

Where this model stands

Power-to-weight ratio: 5.4 kW/t (17 kW / 3.2 t)

Stronger than 42% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Pel-Job EB306 have?

The Pel-Job EB306 delivers 27.6 hp.

How much does the Pel-Job EB306 weigh?

The unladen weight is 3,170 kg.

What engine does the Pel-Job EB306 have?

3 cylinders, 1,319 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
