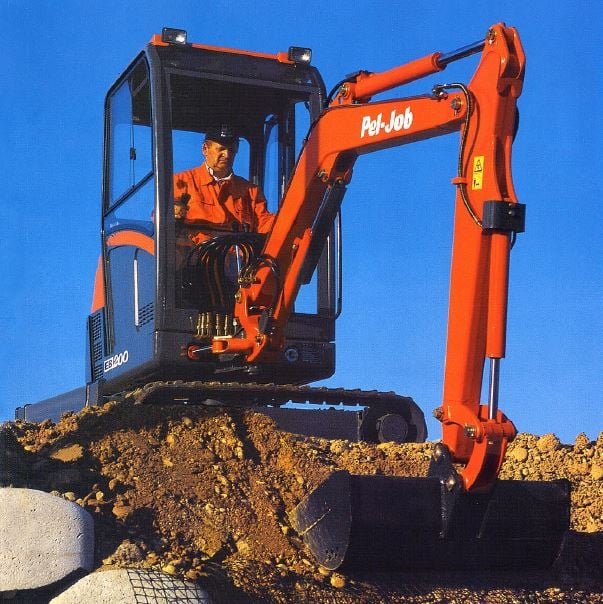

Pel-Job EB200XTV

Series: Pel-Job Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Pel-Job EB200XTV is a model in the Pel-Job Mini Excavator series. The engine delivers 19.3 hp (11.2 kW), with a displacement of 952.1 cm³. Torque is 54.1 Nm. Rated speed is 2,800 rpm. The unladen weight is 1,745 kg. Ground clearance is 240.8 mm. The tank holds 21.2 litres. Maximum torque is reached at 1,850 rpm. The pump delivers 57.2 l/min. The hydraulic tank holds 23.1 litres. Working pressure is 210 bar. The electrical system runs on 12 V. The engine fitted is the L3E. The Pel-Job Mini Excavator series covers 18 models. Rated output within it ranges from 19.3 to 42.6 hp; the EB200XTV sits at the bottom of that range with 19.3 hp. Its immediate neighbours are the EB250 above it with 27.6 hp. 21 Pel-Job models across 2 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelL3Ecorrect
Power19.3 hp (11.2 kW)correct
Rated speed2,800 rpmcorrect
Torque54.1correct
Speed at max. torque1,850 rpmcorrect
Displacement952.1 cm³correct

Dimensions and weights

Ground clearance240.8correct
Unladen weight1,745 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow57.2 l/mincorrect
Hydraulic oil capacity23.1 lcorrect
Hydraulic pressure210 barcorrect
Fuel tank capacity21.2 lcorrect

Other data

Height2,270.8correct

Where this model stands

Power-to-weight ratio: 6.4 kW/t (11 kW / 1.7 t)

Stronger than 12% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Pel-Job EB200XTV have?

The Pel-Job EB200XTV delivers 19.3 hp.

How much does the Pel-Job EB200XTV weigh?

The unladen weight is 1,745 kg.

What engine does the Pel-Job EB200XTV have?

952 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
