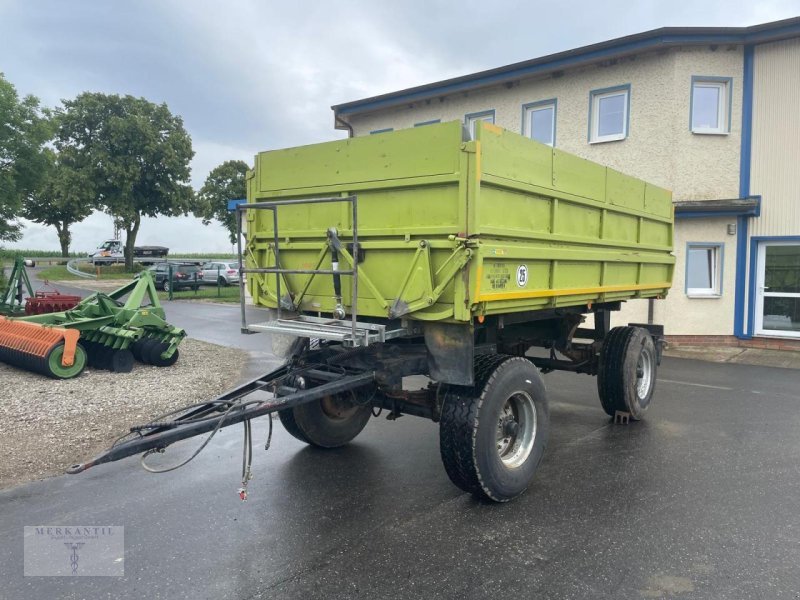

Panav XR021S00
Built: 2022-2022 · Series: Other models
More machines from model year 2022
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Panav – other models: the collective page of the Czech semi-trailers outside the named ranges, flatbed, curtainsider and box versions, unladen weights from 3,730 to 12,990 kg, gross weights up to 39,000 kg
This page gathers the Panav semi-trailers the register could not assign to a named range. Panav, based in Bystřice pod Hostýnem in Czechia, has built semi-trailers for European long-haul transport for decades. Model designations such as PVC30M or TV16 L combine a range code with a figure for length or payload; the collective page runs from the Centre-Axle(s) Trailer Flat Body with a centred axle layout to classic three-axle semi-trailers.
Read on 3 more paragraphs
The register lists here 12 versions with unladen weights from 3,730 to 12,990 kg, gross weights from 18,000 to 39,000 kg, lengths from 8,910 to 14,040 mm and widths from 2,500 to 2,600 mm.
As a Czech maker, Panav chiefly supplies hauliers in central and eastern Europe with flatbed, curtainsider and box semi-trailers for cross-border freight, competing with the large western European semi-trailer makers.
On a used purchase, corrosion on the frame and chassis rails, the condition of axles, brakes and underrun protection, on curtainsiders the curtain and tensioning rails, on flatbeds the load-floor coating, and the inspection history under the relevant national roadworthiness test all count; spares run through the central European commercial-vehicle trade. On the centre-axle version, the distribution of the coupling load on the tow vehicle is also worth checking.
Sources: Kennwerte der Modelle Panav (weitere Modelle), Panav (Hersteller)
Technical data
Dimensions and weights
| Length | 11,800 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,300 mmcorrect |
| Unladen weight | 6,480 kgcorrect |
| Gross vehicle weight | 22,000 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Panav XR021S00 weigh?
The unladen weight is 6,480 kg.
What is the gross vehicle weight of the Panav XR021S00?
22,000 kg.
Up to what speed is the Panav XR021S00 approved?
Approved up to 100 km/h.
What are the dimensions of the Panav XR021S00?
11,800 mm × 2,550 mm.
When was the Panav XR021S00 built?
Production years: 2022.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
