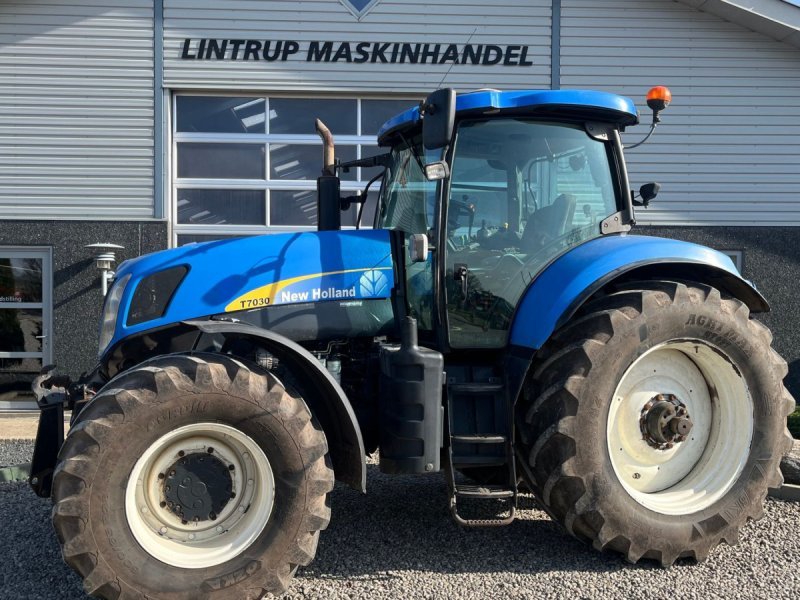

New Holland T7030 (123 kW) 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The New Holland T7030 is a tractor from the New Holland 4WD Tractor series. The six-cylinder engine, displacing 6.8 litres, produces 167 hp (123 kW). Rated speed is 2,200 rpm.
Within the range, rated power spans from 18.8 to 622 hp; with 167 hp, the T7030 sits in the upper third. Directly alongside are the T6080 Elite with 157 hp below and the T8010 with 177 hp above.
New Holland – other models: the collective page of tractors outside the named ranges, from the Fiat heritage (80-66, 110-90) through the Ford 40 and 70 series (7740, 8340, 8670) to the 9x82 and T9, 14 to 457 kW, NEF, Genesis, Iveco and Cummins engines
This page gathers the New Holland tractors the register could not assign to a named range – and it shows the brand's three roots: Fiat of Turin, Ford of Basildon and Versatile of Winnipeg. New Holland, founded in 1895 as a farm-machinery works in Pennsylvania, was joined with Ford Tractor in 1986 into Ford New Holland and bought by Fiat in 1991, which merged with Case as CNH from 1999; the blue tractors of the 1990s therefore carry three type logics. The Fiat types such as 80-66 and 110-90 give the hp class before and the series after the hyphen; the Ford 40 (5640 to 8340) and 70 (8670 to 8970) series from Basildon and Antwerp give the power in the middle digits and the series in the last, with SLE and SL as equipment lines; the articulated 9282 to 9882 and the later T9 come from Winnipeg and Fargo. From 2007 the T logic applies: T4 to T9 as ranges, the following digits as power (T6.140 about 140 hp). The engines are Fiat's 8000 series, Ford's Genesis, FPT's NEF and Cursor and Cummins in the articulated tractors.
Read on 3 more paragraphs
The register lists here 578 versions with 13.8 to 457 kW from three- to six-cylinders of 954 to 15,001 cm³, PTO outputs from 15 to 530 hp, lift capacities from 574 to 8,900 kg, unladen weights from 652 to 25,401 kg, gross weights from 3,000 to 18,000 kg, lengths from 2,700 to 8,005 mm and widths from 1,082 to 4,060 mm.
New Holland is Europe's second-largest tractor brand after John Deere and in the top three in Italy, Spain, France, Britain and Turkey; the brand also carries the specialist tractors from Jesi and the Boomer compact class from Japan.
On used tractors, clutch and shuttle count on Fiat types, electronics and powershift on the Ford 40 and 70 series, transmission and tyres on the articulated tractors, and on the T ranges operating hours, common-rail injection and exhaust aftertreatment; parts run through CNH.
Sources: Kennwerte der Modelle New Holland (weitere Modelle), New Holland Agriculture (Hersteller)
Technical data
Engine
| Power | 167.3 hp (123 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 732 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,751.5 cm³correct |
| Aspiration | Turbocharged/intercooledcorrect |
| Engine oil capacity | 15.1 lcorrect |
Dimensions and weights
| Length | 5,110 mmcorrect |
|---|---|
| Width | 2,135 mmcorrect |
| Height | 3,050 mmcorrect |
| Wheelbase | 2,884 mmcorrect |
| Unladen weight | 8,115 kgcorrect |
Drivetrain and chassis
| Gearbox | 18 V/6 R and 19 V/6 Rcorrect |
|---|---|
| Gearbox type | 18x6 Power command full powershift transmissioncorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Tyre size | 18.4R42correct |
Working data
| Lifting capacity | 5,800 kgcorrect |
|---|---|
| Pump flow | 185.5 l/mincorrect |
| Hydraulic oil capacity | 100.3 lcorrect |
| Fuel tank capacity | 439.1 lcorrect |
Other data
| Cab height | 3,041.9correct |
|---|---|
| Linkage category | Cat IIIcorrect |
| PTO output | 135 hpcorrect |
| PTO speed | 540/540E/1000 rpmcorrect |
| System voltage | 12 Vcorrect |
Where this model stands
Power-to-weight ratio: 15.2 kW/t (123 kW / 8.1 t)
Power class: Large (100–180 hp)
Stronger than 87% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the New Holland T7030 have?
The New Holland T7030 delivers 167 hp.
How much does the New Holland T7030 weigh?
The unladen weight is 8,115 kg.
What engine does the New Holland T7030 have?
6 cylinders, 6,752 cm³ displacement.
What is the PTO output of the New Holland T7030?
PTO output is 135 hp. PTO speeds: 540/540E/1000 rpm.
How much does the rear linkage of the New Holland T7030 lift?
The rear linkage lifts 5,800 kg.
What are the dimensions of the New Holland T7030?
5,110 mm × 2,135 mm × 3,050 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
