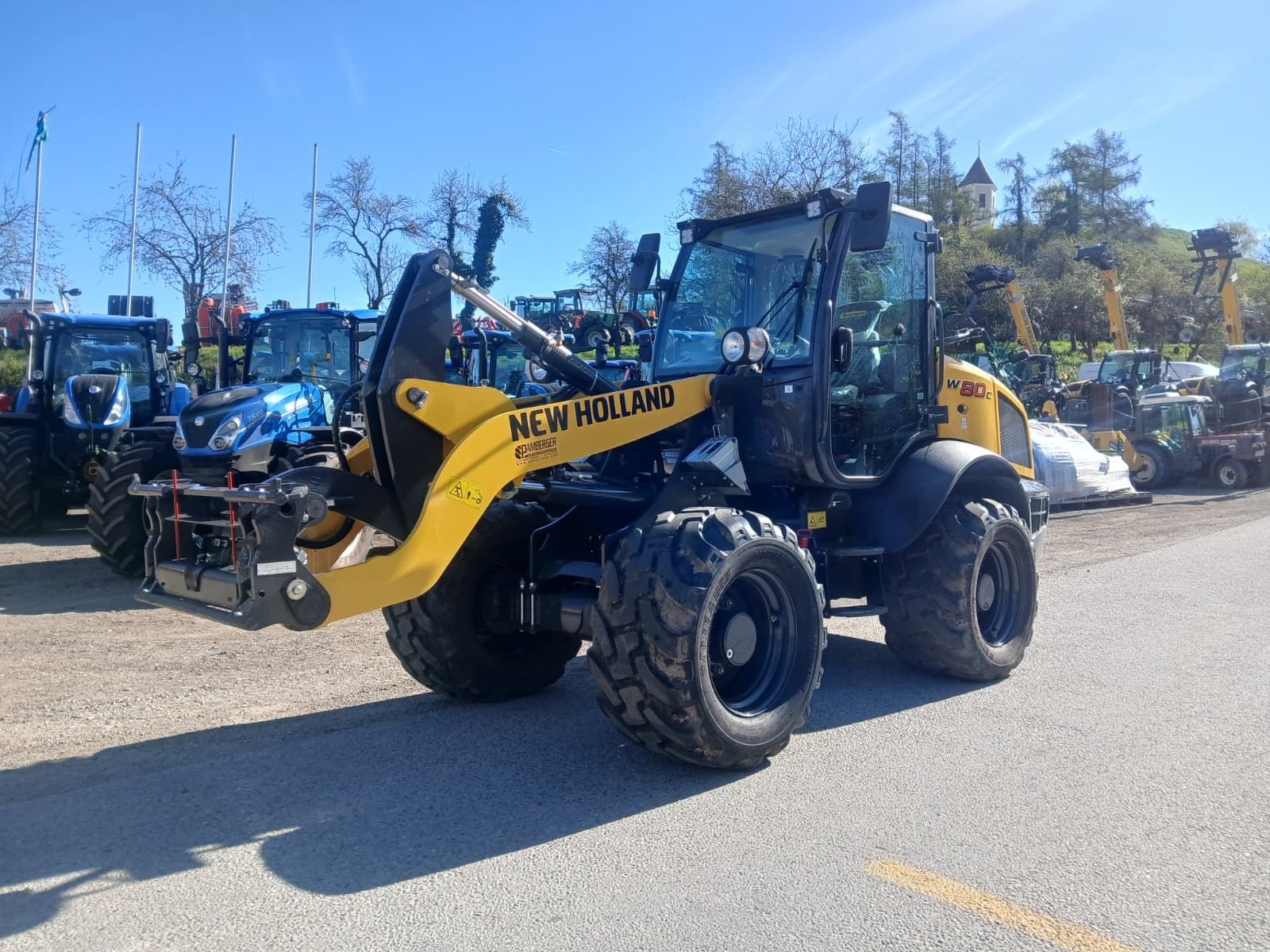

New Holland LW270.B

Series: New Holland Wheel Loader

Source: https://www.landwirt.com/baumaschinen/radlader/new-holland/l

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The New Holland LW270.B belongs to the New Holland Wheel Loader series. The engine delivers 310.2 hp (239.4 kW), has 6 cylinders, with a displacement of 10,800.7 cm³. Torque is 1,478.1 Nm. Rated speed is 1,800 rpm. The unladen weight is 23,470 kg. The wheelbase measures 3,401.6 mm. Ground clearance is 496.8 mm. The tank holds 364.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 199.1 l/min. The hydraulic tank holds 165 litres. The cooling system holds 43.2 litres. The electrical system runs on 24 V. The engine fitted is the Cummins QSM11 668T/M2 A Tier 2 certified. The New Holland Wheel Loader series covers 42 models. Rated output within it ranges from 54.7 to 310.2 hp; the LW270.B sits at the top of that range with 310.2 hp. Its immediate neighbours are the W190B below it with 211.9 hp. 502 New Holland models across 32 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelCummins QSM11 668T/M2 A Tier 2 certifiedcorrect
Power310.2 hp (239.4 kW)correct
Rated speed1,800 rpmcorrect
Torque1,478.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement10,800.7 cm³correct
AspirationTurbocharged, air to air cooledcorrect
Coolant capacity43.2 lcorrect

Dimensions and weights

Wheelbase3,401.6correct
Ground clearance496.8correct
Unladen weight23,470 kgcorrect

Drivetrain and chassis

Gearbox typecountershaft, power shiftcorrect
Forward gears4correct
Reverse gears4correct

Working data

Pump flow199.1 l/mincorrect
Hydraulic oil capacity165 lcorrect
Fuel tank capacity364.2 lcorrect

Other data

Cab height3,587.5correct
System voltage24 Vcorrect

Where this model stands

Power-to-weight ratio: 10.2 kW/t (239 kW / 23.5 t)

Stronger than 92% of the wheel loaders in the register — out of 1,252 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the New Holland LW270.B have?

The New Holland LW270.B delivers 310 hp.

How much does the New Holland LW270.B weigh?

The unladen weight is 23,470 kg.

What engine does the New Holland LW270.B have?

6 cylinders, 10,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
