Start › Wheel loaders › New Holland › LW130.B

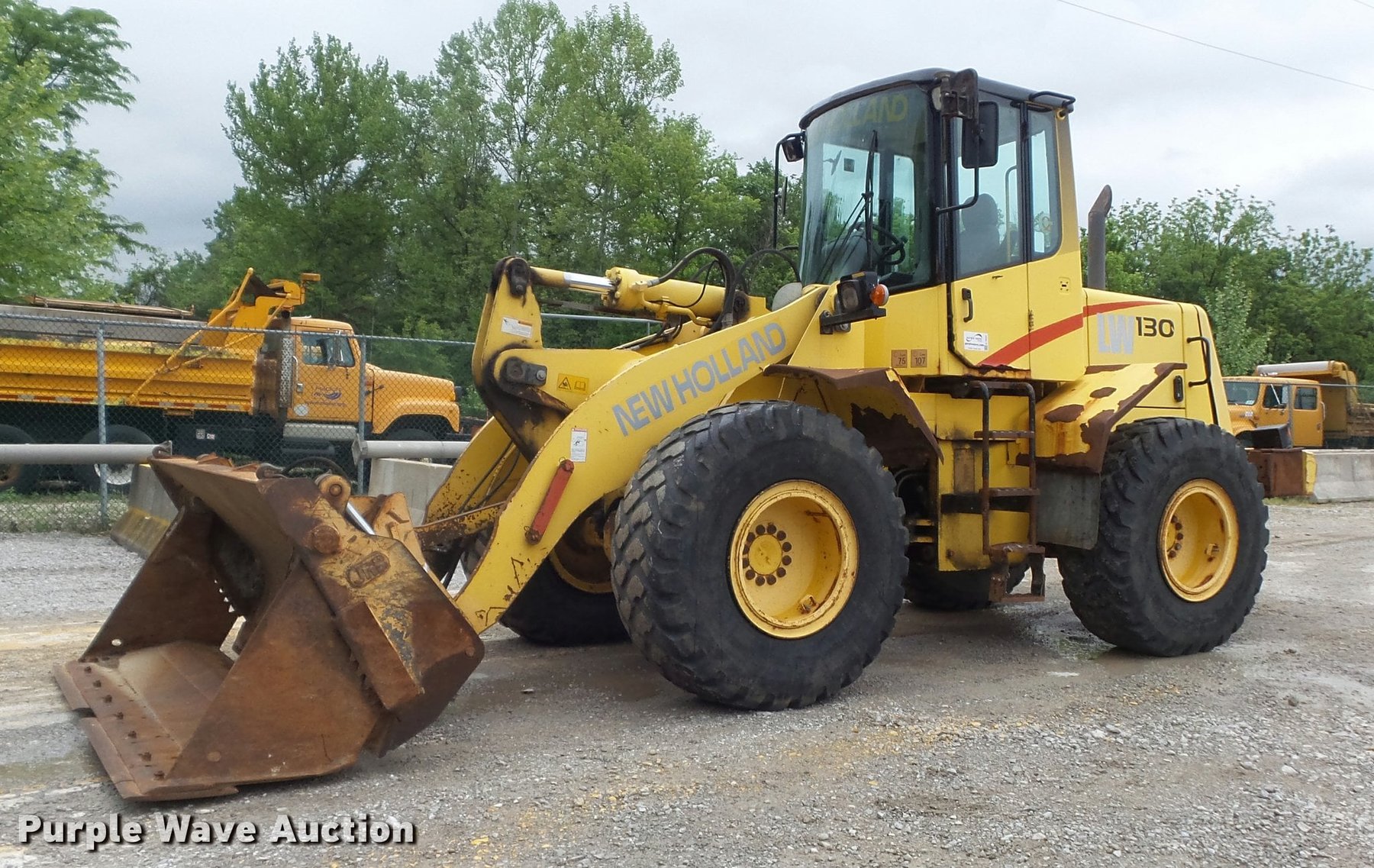

New Holland LW130.B

Series: New Holland Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LW130.B from New Holland is part of the New Holland Wheel Loader series. The engine delivers 140.9 hp (111.1 kW), with a displacement of 6,700.7 cm³. Torque is 671.1 Nm. Rated speed is 2,000 rpm. The wheelbase measures 2,901.7 mm. Ground clearance is 475.5 mm. The tank holds 189.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The pump delivers 171.1 l/min. The hydraulic tank holds 113.9 litres. The cooling system holds 24.2 litres. The electrical system runs on 24 V. The engine fitted is the 668TA/M2. Tier 2 certified. Tyre size: 20,5x25 12 ply. The New Holland Wheel Loader series covers 42 models. Rated output within it ranges from 54.7 to 310.2 hp; the LW130.B sits in the lower part of that range with 140.9 hp. Its immediate neighbours are the LW130TC below it with 131.8 hp and the W130 above it with 150.1 hp. 502 New Holland models across 32 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model668TA/M2, Tier 2 certifiedcorrect
Power140.9 hp (111.1 kW)correct
Rated speed2,000 rpmcorrect
Torque671.1correct
Displacement6,700.7 cm³correct
AspirationTurbocharged, air to air cooledcorrect
Coolant capacity24.2 lcorrect

Dimensions and weights

Wheelbase2,901.7correct
Ground clearance475.5correct

Drivetrain and chassis

Gearbox typeCountershaft, power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5x25 12 plycorrect
System voltage24 Vcorrect

Working data

Pump flow171.1 l/mincorrect
Hydraulic oil capacity113.9 lcorrect
Fuel tank capacity189.3 lcorrect

Other data

Height3,291.8correct

Frequently asked questions

How much power does the New Holland LW130.B have?

The New Holland LW130.B delivers 141 hp.

What engine does the New Holland LW130.B have?

6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
