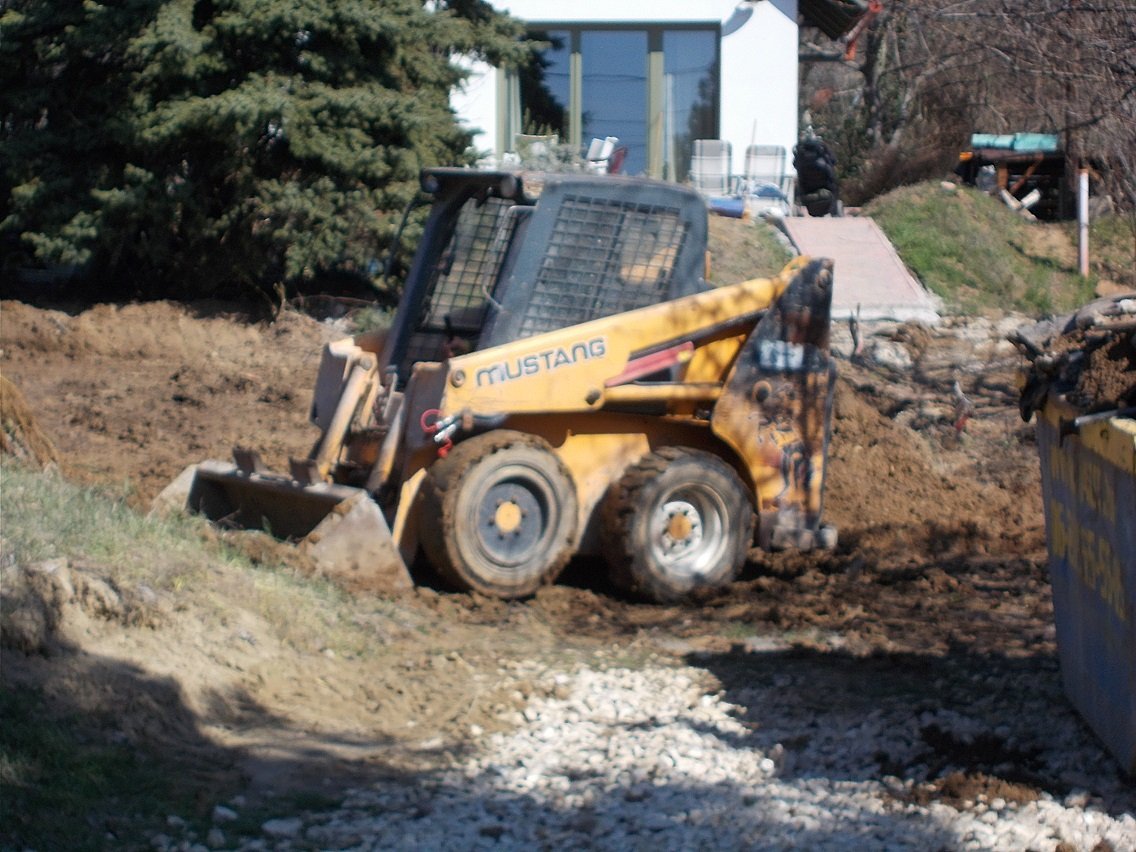

Mustang 2076

Series: Mustang Skid Steer Loader

Source: https://commons.wikimedia.org/w/index.php?curid=163140658 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 2076 from Mustang is part of the Mustang Skid Steer Loader series. The engine delivers 62.6 kW, has 4 cylinders, with a displacement of 3,310.2 cm³. Rated speed is 2,500 rpm. The wheelbase measures 1,094.2 mm. Ground clearance is 200.7 mm. Top speed is 18.3 km/h. The tank holds 71.9 litres. The pump delivers 81.4 l/min. The hydraulic tank holds 60.6 litres. Working pressure is 206.8 bar. The electrical system runs on 12 V. The engine fitted is the 4TNV98T / Tier III. The Mustang Skid Steer Loader series covers 9 models. Rated output within it ranges from 26.1 to 73.8 kW; the 2076 sits in the upper part of that range with 62.6 kW. Its immediate neighbours are the 2066 below it with 50.7 kW and the 2099 above it with 64.1 kW. 37 Mustang models across 8 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV98T / Tier IIIcorrect
Power62.6 kWcorrect
Rated speed2,500 rpmcorrect
Cylinders4correct
Displacement3,310.2 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase1,094.2correct
Ground clearance200.7correct

Drivetrain and chassis

Top speed18.3 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow81.4 l/mincorrect
Hydraulic oil capacity60.6 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity71.9 lcorrect

Other data

Height2,060.4correct

Frequently asked questions

How much power does the Mustang 2076 have?

The Mustang 2076 delivers 62.6 kW.

What engine does the Mustang 2076 have?

4 cylinders, 3,310 cm³ displacement.

How fast does the Mustang 2076 go?

Top speed is 18.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
