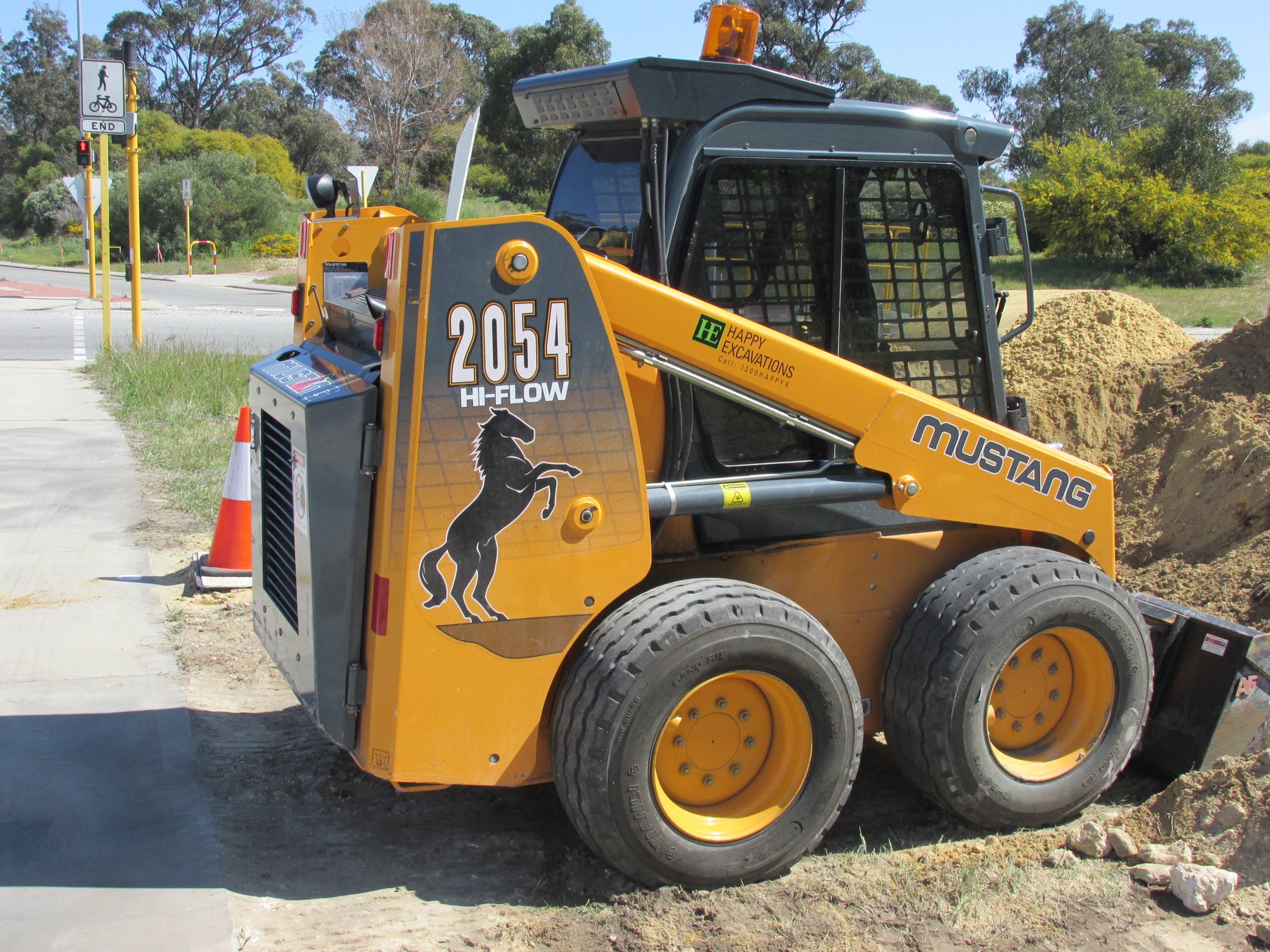

Mustang 2054

Series: Mustang Skid Steer Loader

Source: https://commons.wikimedia.org/w/index.php?curid=71024035

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mustang 2054 is a model in the Mustang Skid Steer Loader series. The engine delivers 35 kW, has 4 cylinders, with a displacement of 2,189.3 cm³. Rated speed is 3,000 rpm. The wheelbase measures 978.4 mm. Ground clearance is 190.5 mm. Top speed is 11.6 km/h. The tank holds 54.1 litres. The pump delivers 106 l/min. The hydraulic tank holds 49.2 litres. Working pressure is 206.8 bar. The electrical system runs on 12 V. The engine fitted is the 4TNV88. The Mustang Skid Steer Loader series covers 9 models. Rated output within it ranges from 26.1 to 73.8 kW; the 2054 sits in the lower part of that range with 35 kW. Its immediate neighbours are the 2041 below it with 34.3 kW and the 2066 above it with 50.7 kW. 37 Mustang models across 8 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV88correct
Power35 kWcorrect
Rated speed3,000 rpmcorrect
Cylinders4correct
Displacement2,189.3 cm³correct

Dimensions and weights

Wheelbase978.4correct
Ground clearance190.5correct

Drivetrain and chassis

Top speed11.6 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow106 l/mincorrect
Hydraulic oil capacity49.2 lcorrect
Hydraulic pressure206.8correct
Fuel tank capacity54.1 lcorrect

Other data

Height2,923correct

Frequently asked questions

How much power does the Mustang 2054 have?

The Mustang 2054 delivers 35 kW.

What engine does the Mustang 2054 have?

4 cylinders, 2,189 cm³ displacement.

How fast does the Mustang 2054 go?

Top speed is 11.6 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
