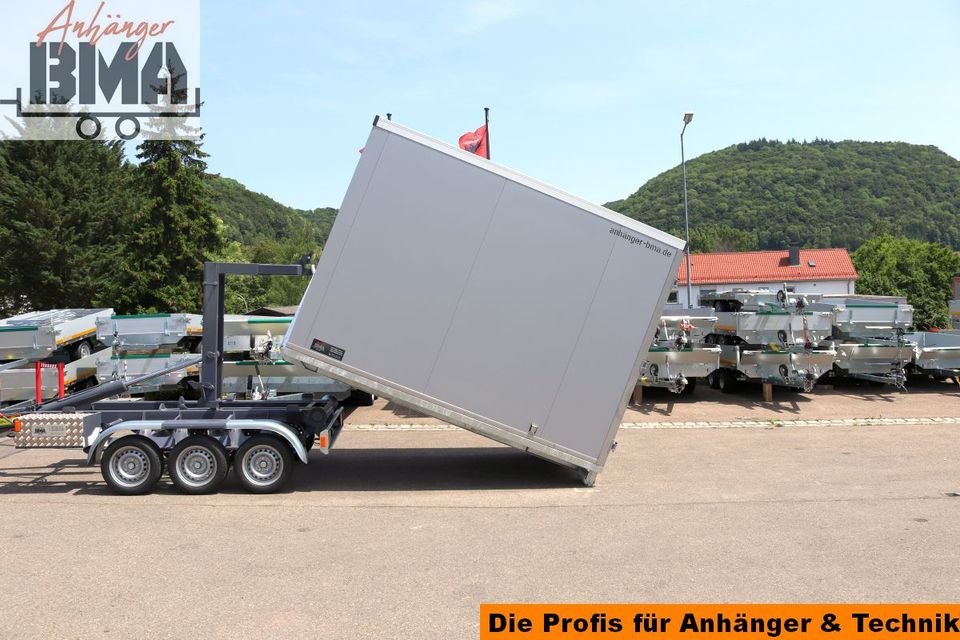

Mollen CONTAINER CARRIER
Built: 2016-2016 · Series: Other models
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
CONTAINER CARRIER – EU class O4 container chassis with a 27,000 kg gross weight, only 3,580 kg kerb weight and 23,420 kg payload
As its name suggests, the CONTAINER CARRIER is a trailer for transporting swap containers, and with a gross weight of 27,000 kg it sits in EU class O4, above ten tonnes. Trailers in this class come with air brakes as standard and are built for use behind suitably approved tractor units in commercial transport.
Read on 3 more paragraphs
At only 3,580 kg kerb weight and 23,420 kg payload, it uses almost 87 per cent of its gross weight as cargo – a ratio typical of container chassis, since the frame only has to carry the container itself and needs no closed load bed of its own. At 8,840 mm long, 2,430 mm wide and with a 5,350 mm wheelbase, the build is matched to the standard dimensions of swap containers.
Container chassis of this kind transfer the load through locking points onto the frame rather than through a continuous load bed, which is what makes such a low kerb weight possible in the first place. Driving a combination in this weight class requires at least a category CE licence, and the locks must match the respective container size and engage securely.
When buying a used container chassis, the condition of the locking points matters most: wear, play or corrosion on the turntables and twist-locks reduce the secure hold on the container. The light frame deserves a check for torsion and cracks on the cross-members, and the air brake system should, despite the chassis's low kerb weight, be rated for the full payload and in working order.
Technical data
Dimensions and weights
| Length | 8,840 mmcorrect |
|---|---|
| Width | 2,430 mmcorrect |
| Wheelbase | 5,350 mmcorrect |
| Unladen weight | 3,580 kgcorrect |
| Gross vehicle weight | 27,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Mollen CONTAINER CARRIER weigh?
The unladen weight is 3,580 kg.
What is the gross vehicle weight of the Mollen CONTAINER CARRIER?
27,000 kg.
Up to what speed is the Mollen CONTAINER CARRIER approved?
Approved up to 100 km/h.
What are the dimensions of the Mollen CONTAINER CARRIER?
8,840 mm × 2,430 mm.
When was the Mollen CONTAINER CARRIER built?
Production years: 2016.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: [1]
