Mecalac 7MWR

Series: Mecalac Mobile Excavator

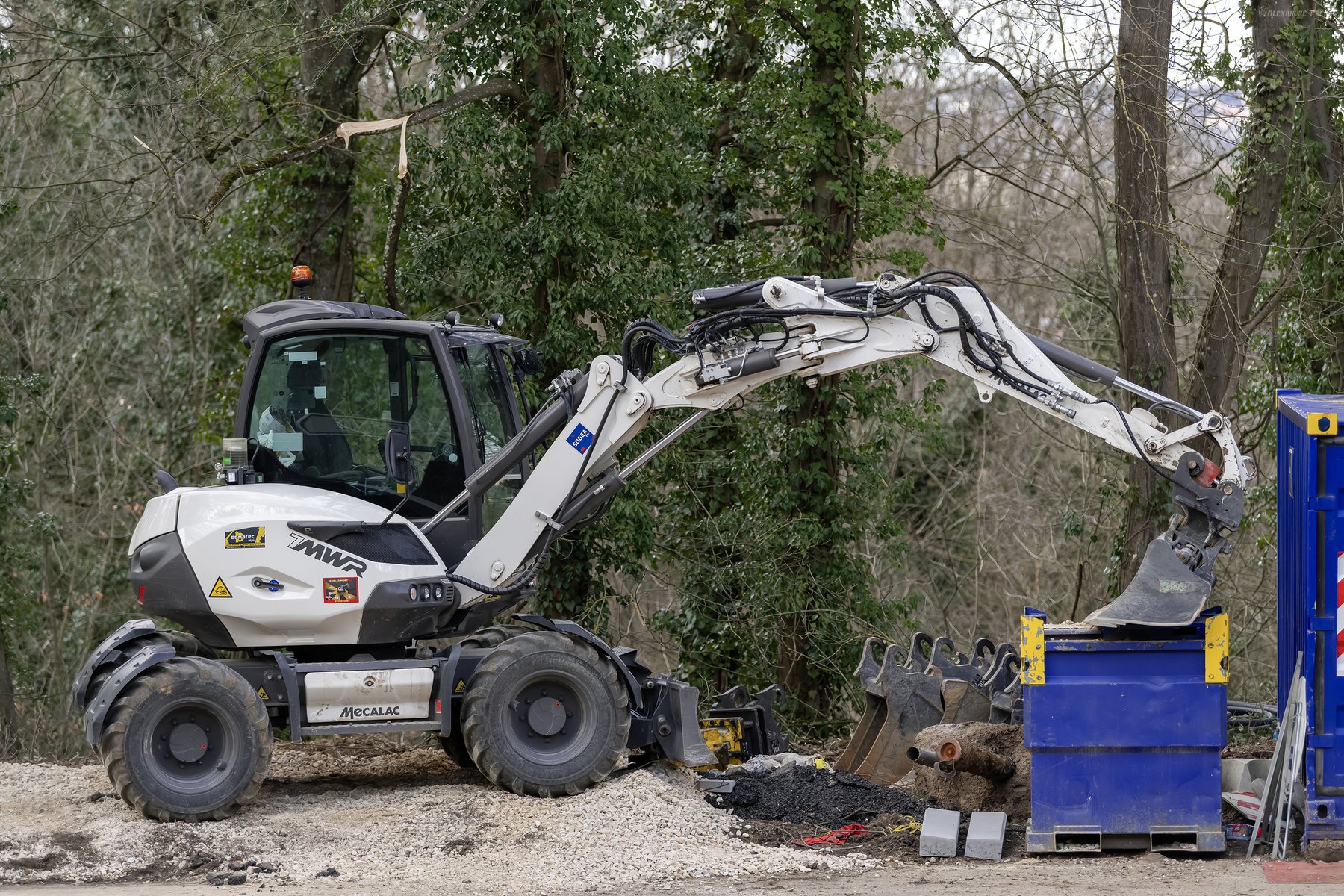

Source: https://commons.wikimedia.org/w/index.php?curid=133482597 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mecalac 7MWR is a model in the Mecalac Mobile Excavator series. The engine delivers 76 hp (55.9 kW), with a displacement of 2,900.5 cm³. Rated speed is 2,300 rpm. The unladen weight is 7,335 kg. The wheelbase measures 2,100.1 mm. Ground clearance is 432.8 mm. The tank holds 108.3 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 100.3 l/min. The hydraulic tank holds 56 litres. Working pressure is 279.9 bar. The engine fitted is the DEUTZ TCD 2,9 L4. The Mecalac Mobile Excavator series covers 5 models. Rated output within it ranges from 76 to 135.9 hp; the 7MWR sits at the bottom of that range with 76 hp. Its immediate neighbours are the 12MTX above it with 115.6 hp. 24 Mecalac models across 5 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDEUTZ TCD 2.9 L4correct
Power76 hp (55.9 kW)correct
Rated speed2,300 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Displacement2,900.5 cm³correct

Dimensions and weights

Width2,180.1correct
Wheelbase2,100.1correct
Ground clearance432.8correct
Unladen weight7,335 kgcorrect

Working data

Pump flow100.3 l/mincorrect
Hydraulic oil capacity56 lcorrect
Hydraulic pressure279.9 barcorrect
Fuel tank capacity108.3 lcorrect

Other data

Height2,816.4correct

Where this model stands

Power-to-weight ratio: 7.6 kW/t (56 kW / 7.3 t)

Stronger than 17% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Mecalac 7MWR have?

The Mecalac 7MWR delivers 76 hp.

How much does the Mecalac 7MWR weigh?

The unladen weight is 7,335 kg.

What engine does the Mecalac 7MWR have?

2,900 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

11MWR

12MTX

15MWR

9MWR

Sources: [1]
