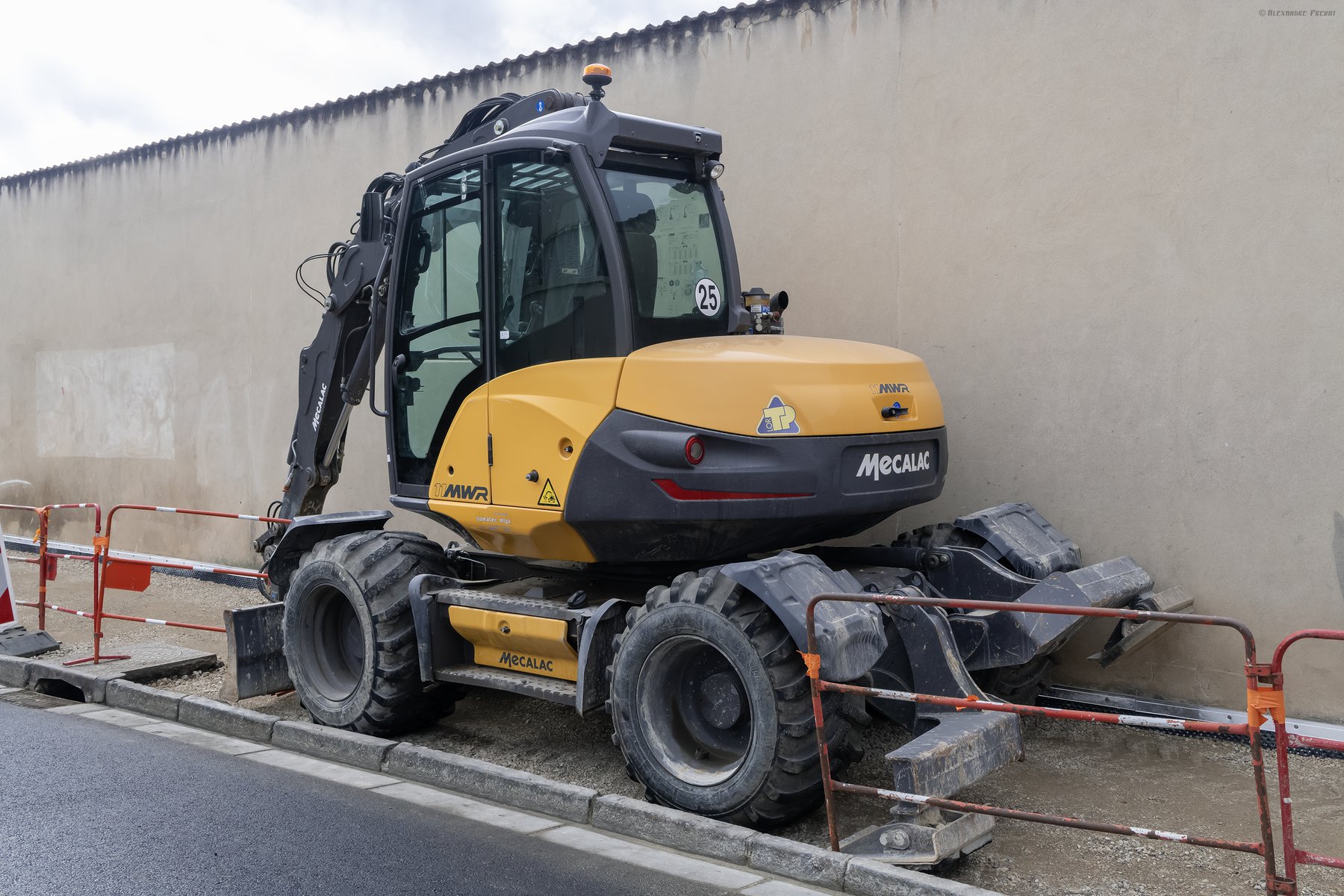

Mecalac 11MWR

Series: Mecalac Mobile Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=133482891 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mecalac 11MWR is a model in the Mecalac Mobile Excavator series. The engine delivers 76 hp (55.9 kW), with a displacement of 3,605.2 cm³. Rated speed is 2,200 rpm. The unladen weight is 10,990 kg. The wheelbase measures 2,301.2 mm. Ground clearance is 460.2 mm. The tank holds 165 litres. Maximum torque is reached at 1,300 rpm. The pump delivers 165 l/min. The hydraulic tank holds 77.2 litres. Working pressure is 299.9 bar. The engine fitted is the DEUTZ TCD 3,6 L4. The Mecalac Mobile Excavator series covers 5 models. Rated output within it ranges from 76 to 135.9 hp; the 11MWR sits at the bottom of that range with 76 hp. Its immediate neighbours are the 12MTX above it with 115.6 hp. 24 Mecalac models across 5 series are on record. The model is listed under Excavators & compaction. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDEUTZ TCD 3.6 L4correct
Power76 hp (55.9 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,300 rpmcorrect
Displacement3,605.2 cm³correct

Dimensions and weights

Width2,500.1correct
Wheelbase2,301.2correct
Ground clearance460.2correct
Unladen weight10,990 kgcorrect

Working data

Pump flow165 l/mincorrect
Hydraulic oil capacity77.2 lcorrect
Hydraulic pressure299.9 barcorrect
Fuel tank capacity165 lcorrect

Other data

Height2,944.4correct

Where this model stands

Power-to-weight ratio: 5.1 kW/t (56 kW / 11 t)

Stronger than 17% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Mecalac 11MWR have?

The Mecalac 11MWR delivers 76 hp.

How much does the Mecalac 11MWR weigh?

The unladen weight is 10,990 kg.

What engine does the Mecalac 11MWR have?

3,605 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
