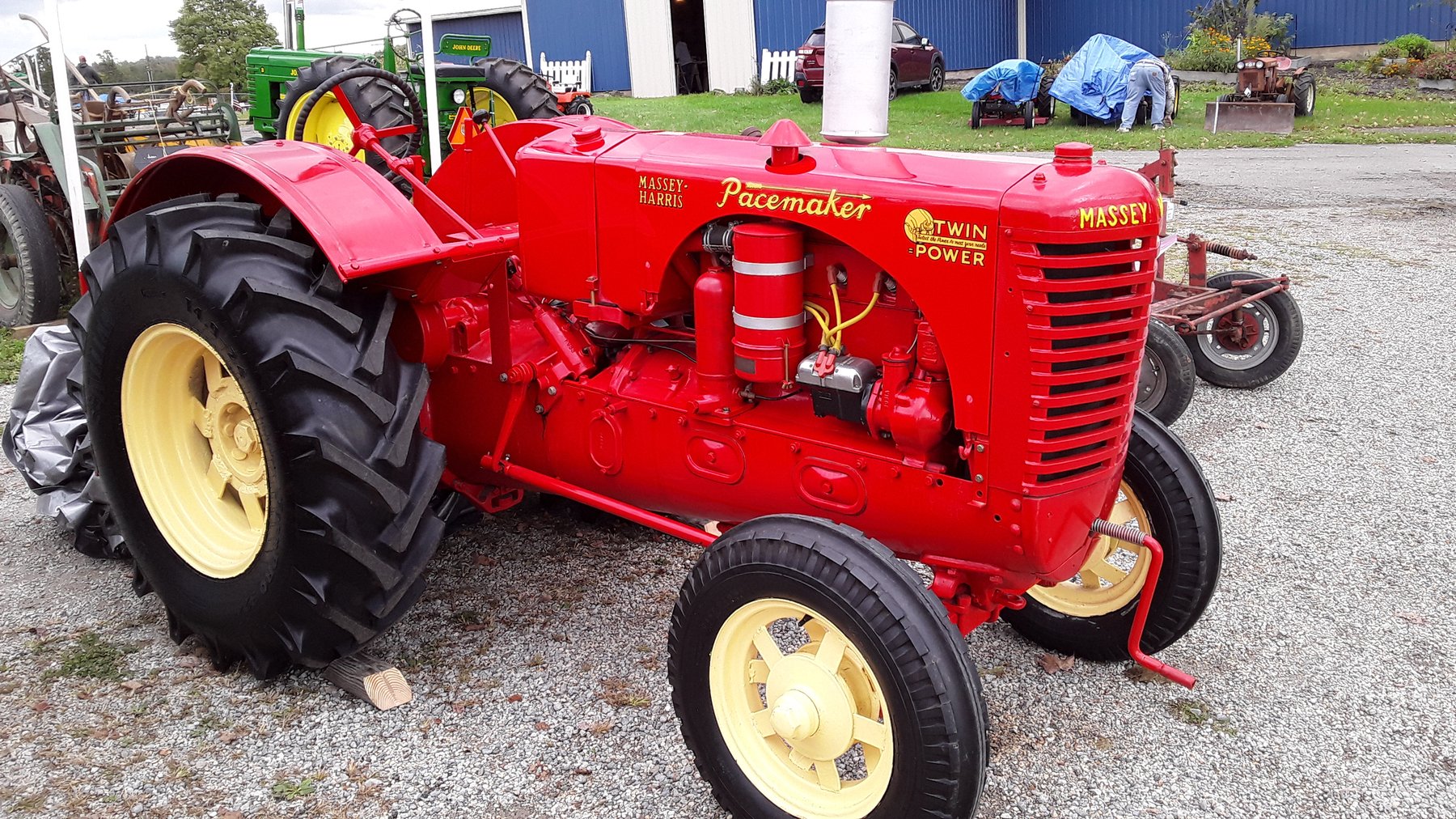

Massey Harris Pacemaker
Built: 1938-1938 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Massey Harris Pacemaker is a tractor built in 1938. It runs on a four-cylinder engine. Rated speed is 1,200 rpm.
Power is transmitted through a manual gearbox, drive type: 2-WD.
It runs on petrol or kerosene; the engine is water-cooled. As standard, it runs on 6.00x16 tyres at the front and 11.25 or 12.75 x 38 at the rear. This model followed the Massey-Harris 15-30, before the Massey-Harris 25 took over.
Technical data
Engine
| Engine make | Massey-Harriscorrect |
|---|---|
| Fuel | Gasoline/Kerosenecorrect |
| Power | 29 hp (belt) hpcorrect |
| Rated speed | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 201 cu inches (3.29 litre)correct |
| Bore | 3.875"correct |
| Stroke | 5.25"correct |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 122 inchcorrect |
|---|---|
| Width | 56 inchcorrect |
| Wheelbase | 78 inchcorrect |
| Turning circle | 11.5 ftcorrect |
| Unladen weight | 3,755 lbcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | manual gearboxcorrect |
| Gearbox make | M-Hcorrect |
| Forward gears | 4correct |
| Reverse gears | 1correct |
| Clutch | single plate (twin disc) - hand opcorrect |
| Front tyres | 6.00x16correct |
| Rear tyres | 11.25 or 12.75 x 38correct |
Working data
| Fuel tank capacity | 15 impcorrect |
|---|---|
| PTO speed | not statedcorrect |
Origin and approval
| Plant | Canadacorrect |
|---|---|
| Predecessor | Massey-Harris 15-30correct |
| Successor | Massey-Harris 25correct |
Frequently asked questions
How much power does the Massey Harris Pacemaker have?
The Massey Harris Pacemaker delivers 29 hp.
What engine does the Massey Harris Pacemaker have?
4 cylinders, Gasoline/Kerosene.
When was the Massey Harris Pacemaker built?
Production years: 1938.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
