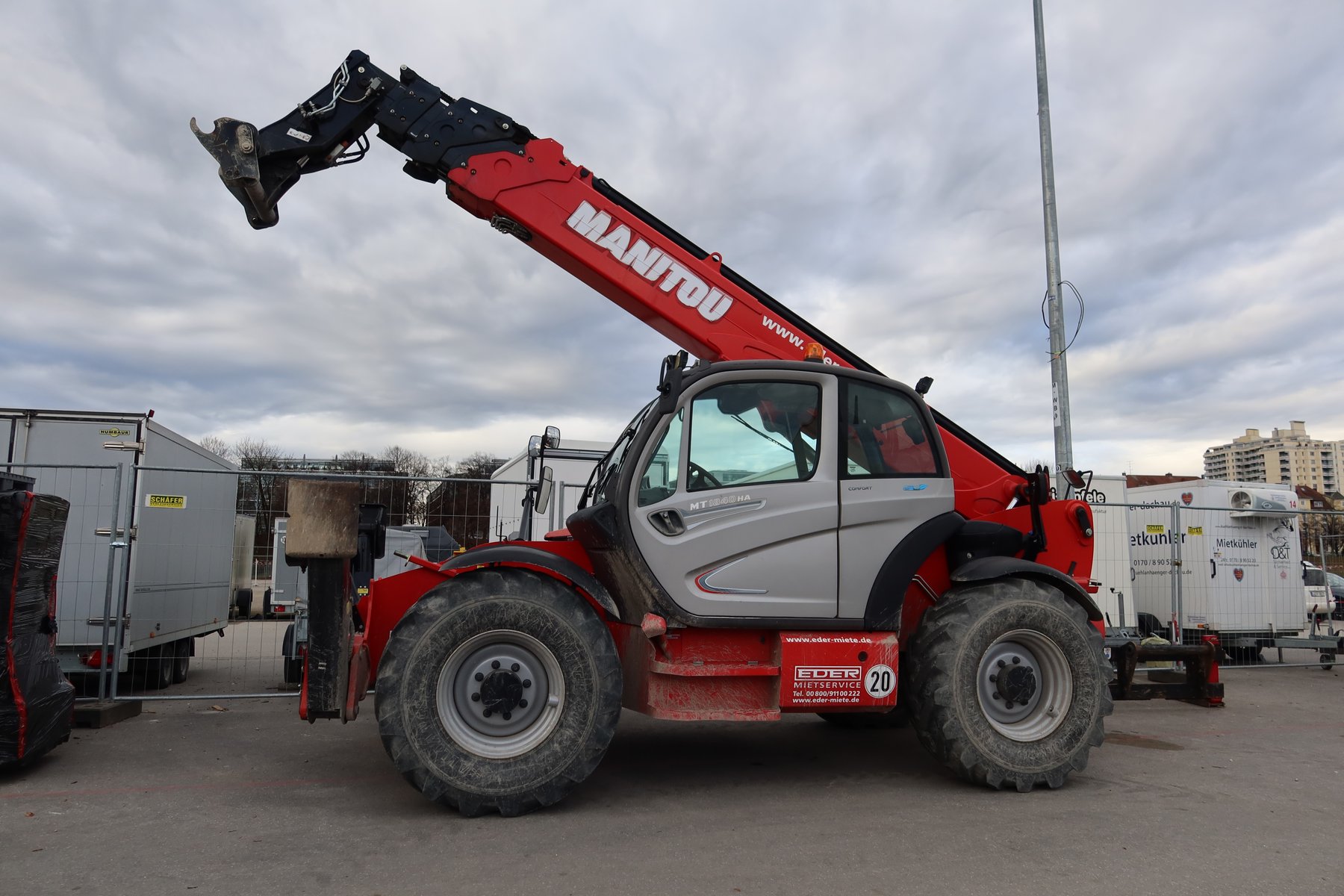

Manitou MT 1840 A

Series: Manitou Telescopic Forklift

Source: https://commons.wikimedia.org/w/index.php?curid=165685014 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the MT 1840 A, Manitou offers a model from the Manitou Telescopic Forklift series. The engine delivers 103.4 hp (76.1 kW), with a displacement of 3,400.3 cm³. The engine comes from PERKINS. Torque is 420 Nm. The unladen weight is 12,400 kg. The wheelbase measures 3,072.4 mm. Ground clearance is 420.6 mm. The tank holds 140.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 170.3 l/min. The hydraulic tank holds 135.1 litres. Working pressure is 270 bar. The engine fitted is the 854E-E34TA. Tyre size: 440/80-24. The Manitou Telescopic Forklift series covers 109 models. Rated output within it ranges from 40.3 to 216.3 hp; the MT 1840 A sits in the lower part of that range with 103.4 hp. Its immediate neighbours are the MT 1745 HSLT ULTRA below it with 102.4 hp and the MVT 665 T above it with 106.1 hp. 759 Manitou models across 21 series are on record. The model is listed under Telehandlers. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine makePERKINScorrect
Engine model854E-E34TAcorrect
Power103.4 hp (76.1 kW)correct
Torque420correct
Speed at max. torque1,400 rpmcorrect
Displacement3,400.3 cm³correct

Dimensions and weights

Wheelbase3,072.4correct
Ground clearance420.6correct
Unladen weight12,400 kgcorrect

Drivetrain and chassis

Gearbox typeTorque convertercorrect
Forward gears4correct
Reverse gears4correct
Tyre size440/80-24correct

Working data

Pump flow170.3 l/mincorrect
Hydraulic oil capacity135.1 lcorrect
Hydraulic pressure270correct
Fuel tank capacity140.1 lcorrect

Where this model stands

Power-to-weight ratio: 6.1 kW/t (76 kW / 12.4 t)

Stronger than 55% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MT 1840 A have?

The Manitou MT 1840 A delivers 103 hp.

How much does the Manitou MT 1840 A weigh?

The unladen weight is 12,400 kg.

What engine does the Manitou MT 1840 A have?

3,400 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
