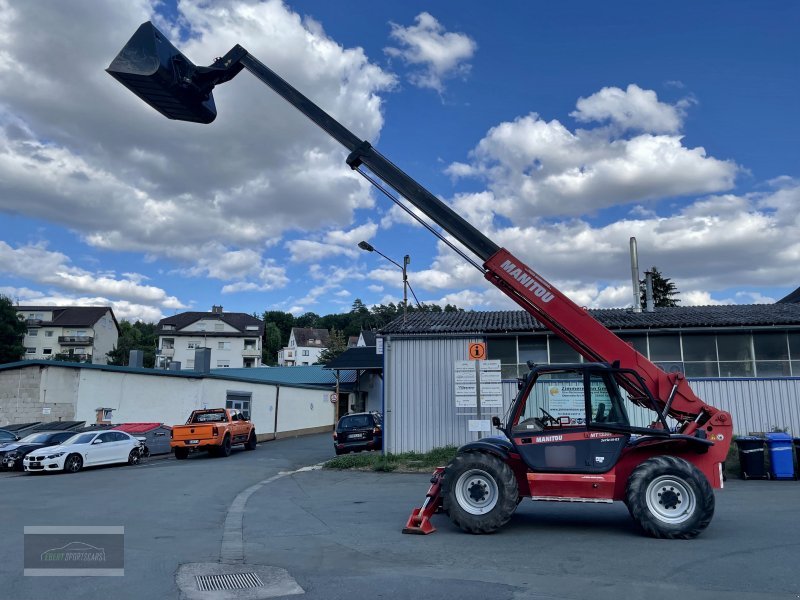

Manitou MT 1235 S

Series: Manitou Telescopic Forklift

Source: https://www.technikboerse.at/marke/manitou-754

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Manitou MT 1235 S belongs to the Manitou Telescopic Forklift series. The engine delivers 83.6 hp (61.5 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Torque is 302.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 8,960 kg. The wheelbase measures 2,770.6 mm. The tank holds 135.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. The pump delivers 105.2 l/min. The hydraulic tank holds 120.4 litres. Working pressure is 260 bar. The engine fitted is the 1104C,44. Tyre size: 400/80-24 TL 156 B. The Manitou Telescopic Forklift series covers 109 models. Rated output within it ranges from 40.3 to 216.3 hp; the MT 1235 S sits in the lower part of that range with 83.6 hp. Its immediate neighbours are the MT 732 EASY below it with 76 hp and the MT 1436 R above it with 87.1 hp. 759 Manitou models across 21 series are on record. The model is listed under Telehandlers. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model1104C.44correct
Power83.6 hp (61.5 kW)correct
Rated speed2,200 rpmcorrect
Torque302.1correct
Cylinders4correct
Displacement4,401.6 cm³correct

Dimensions and weights

Height2,760 mmcorrect
Wheelbase2,770.6correct
Unladen weight8,960 kgcorrect

Drivetrain and chassis

Gearbox typetorque convertorcorrect
Forward gears4correct
Reverse gears4correct
Tyre size400/80-24 TL 156 Bcorrect

Working data

Lift height12,000 mmcorrect
Pump flow105.2 l/mincorrect
Hydraulic oil capacity120.4 lcorrect
Hydraulic pressure260correct
Fuel tank capacity135.1 lcorrect

More machines with this engine (Perkins 1104C-44, 72)

Where this model stands

Power-to-weight ratio: 6.9 kW/t (62 kW / 9 t)

Stronger than 23% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MT 1235 S have?

The Manitou MT 1235 S delivers 83.6 hp.

How much does the Manitou MT 1235 S weigh?

The unladen weight is 8,960 kg.

What engine does the Manitou MT 1235 S have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
