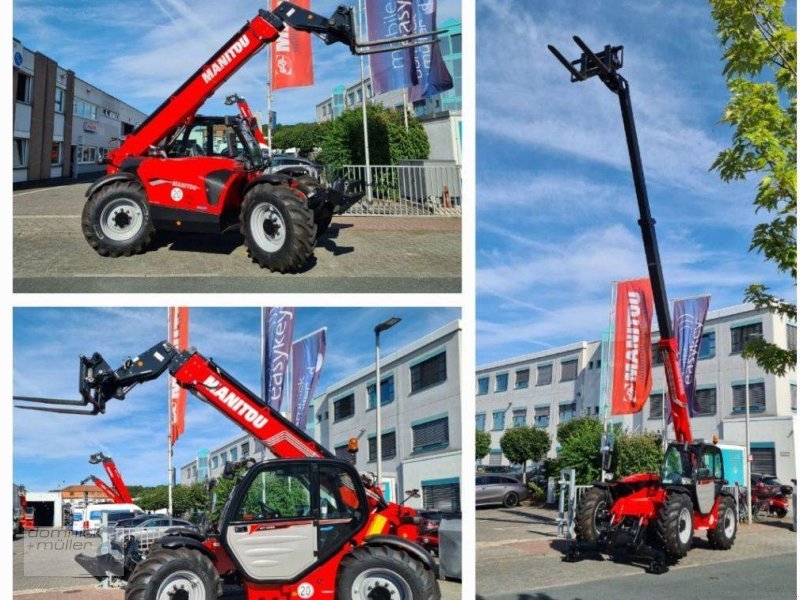

Manitou MT 1033 HLT

Series: Manitou Telescopic Forklift

Source: https://www.technikboerse.com/gebraucht/teleskoplader-354

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Manitou Telescopic Forklift series from Manitou includes the MT 1033 HLT. The engine delivers 101.4 hp (74.6 kW), with a displacement of 4,401.6 cm³. Torque is 412 Nm. The unladen weight is 7,845 kg. The wheelbase measures 2,810.3 mm. The tank holds 120.4 litres. The gearbox has 4 forward gears. There are also 2 reverse gears. The pump delivers 105.2 l/min. The hydraulic tank holds 128.3 litres. Working pressure is 250 bar. The engine fitted is the 1104,C 44 Turbo. Tyre size: 400/80-24. The Manitou Telescopic Forklift series covers 109 models. Rated output within it ranges from 40.3 to 216.3 hp; the MT 1033 HLT sits in the lower part of that range with 101.4 hp. Its immediate neighbours are the MT 1436 R below it with 87.1 hp and the MLT 627 Turbo above it with 102.4 hp. 759 Manitou models across 21 series are on record. The model is listed under Telehandlers. 16 verified figures from 1 source are on file.

Manitou MT – how lift height and capacity hide inside the model number

Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.

Read on 3 more paragraphs

Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.

Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.

When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.

Sources: Kennwerte der Modelle Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m

Technical data

Engine

Engine model1104.C 44 Turbocorrect
Power101.4 hp (74.6 kW)correct
Torque412correct
Displacement4,401.6 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Height2,550 mmcorrect
Wheelbase2,810.3correct
Unladen weight7,845 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears4correct
Reverse gears2correct
Tyre size400/80-24correct

Working data

Lifting capacity3,300 kgcorrect
Lift height9,610 mmcorrect
Mast typetelescopiccorrect
Pump flow105.2 l/mincorrect
Hydraulic oil capacity128.3 lcorrect
Hydraulic pressure250correct
Fuel tank capacity120.4 lcorrect

Where this model stands

Power-to-weight ratio: 9.5 kW/t (75 kW / 7.8 t)

Stronger than 39% of the telehandlers in the register — out of 661 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Manitou MT 1033 HLT have?

The Manitou MT 1033 HLT delivers 101 hp.

How much does the Manitou MT 1033 HLT weigh?

The unladen weight is 7,845 kg.

What engine does the Manitou MT 1033 HLT have?

4,402 cm³ displacement.

What is the load capacity of the Manitou MT 1033 HLT?

Load capacity is 3,300 kg, lift height 9,610 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
