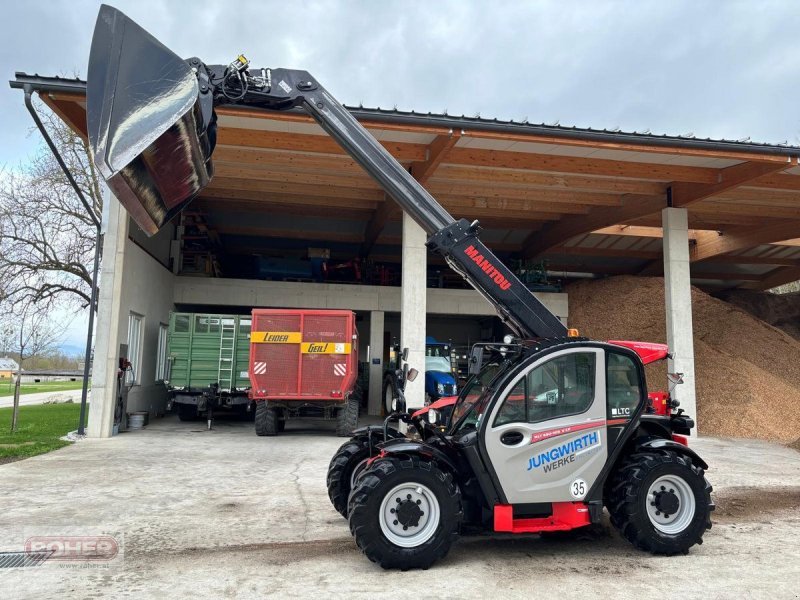

Manitou MLT 630 T
Series: Manitou Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Manitou MT – how lift height and capacity hide inside the model number
Manitou's MT range is the French manufacturer's classic telehandler line for construction and agriculture, spanning lift heights from 4 to 18 metres and capacities from 2 to 4 tonnes. Both figures are encoded in the type number at once: on the MT 420 H, the "4" reflects a 4.35 m lift height at 2,000 kg capacity; the MT 625 H offers 5.85 m and 2.5 t; and the large MT 1840 reaches 17.55 m at 4 t — so the first digit group roughly codes lift height in metres, the second capacity in hundreds of kilograms.
Read on 3 more paragraphs
Suffix letters such as "H" mark particularly compact, manoeuvrable versions for tight sites, while lines like MT-X or MRT (rotating telehandlers) form separate sub-ranges for extended reach or 360° slewing.
Models recorded in the database span engine outputs of 18 to 159 kW, own weights of 1,154 to 28,350 kg, and displacement of 1,147 to 6,600 cm³ across 3 to 4 cylinders — the bucket therefore covers everything from compact farmyard telehandlers to heavy construction machines, represented by models such as MT 523, MT 620, MT 732 or MT 932.
When buying a used telehandler, the condition of the telescopic boom and its slide pads, plus the lift and tilt hydraulic cylinders, matter most — play in the fully extended boom is a typical wear sign. It's also worth checking the load chart: the stated rated capacity only applies at short reach, and the permissible load drops sharply as the boom extends.
Sources: Kennwerte der Modelle Manitou Telescopic Forklift, - Manitou: MT-Baureihe, Hubhöhen 4-18 m, Tragkraft 2-4 t, - Manitou: MT 420 H, 2.000 kg / 4,35 m, - Manitou: MT 625 H, 2,5 t / 5,85 m, - Colle/Manitou: MT 1840, 4 t / 17,55 m
Technical data
Engine
| Engine model | 1104C-44Tcorrect |
|---|---|
| Power | 101.4 hp (74.6 kW)correct |
| Torque | 412correct |
| Displacement | 4,401.6 cm³correct |
| Aspiration | turbochargedcorrect |
Dimensions and weights
| Height | 2,550 mmcorrect |
|---|---|
| Wheelbase | 2,560.3correct |
| Unladen weight | 6,450 kgcorrect |
Drivetrain and chassis
| Gearbox type | torque convertercorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| Tyre size | 460/70-24 XMCLcorrect |
Working data
| Lift height | 6,050 mmcorrect |
|---|---|
| Pump flow | 105.2 l/mincorrect |
| Hydraulic oil capacity | 125.3 lcorrect |
| Fuel tank capacity | 120.4 lcorrect |
More machines with this engine (Perkins 1104C-44T, 80)
Where this model stands
Power-to-weight ratio: 11.6 kW/t (75 kW / 6.5 t)
Stronger than 39% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Manitou MLT 630 T have?
The Manitou MLT 630 T delivers 101 hp.
How much does the Manitou MLT 630 T weigh?
The unladen weight is 6,450 kg.
What engine does the Manitou MLT 630 T have?
4,402 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
