Start › Trucks › MAN › TGS › 26.320 6X4H-2BL/450+135

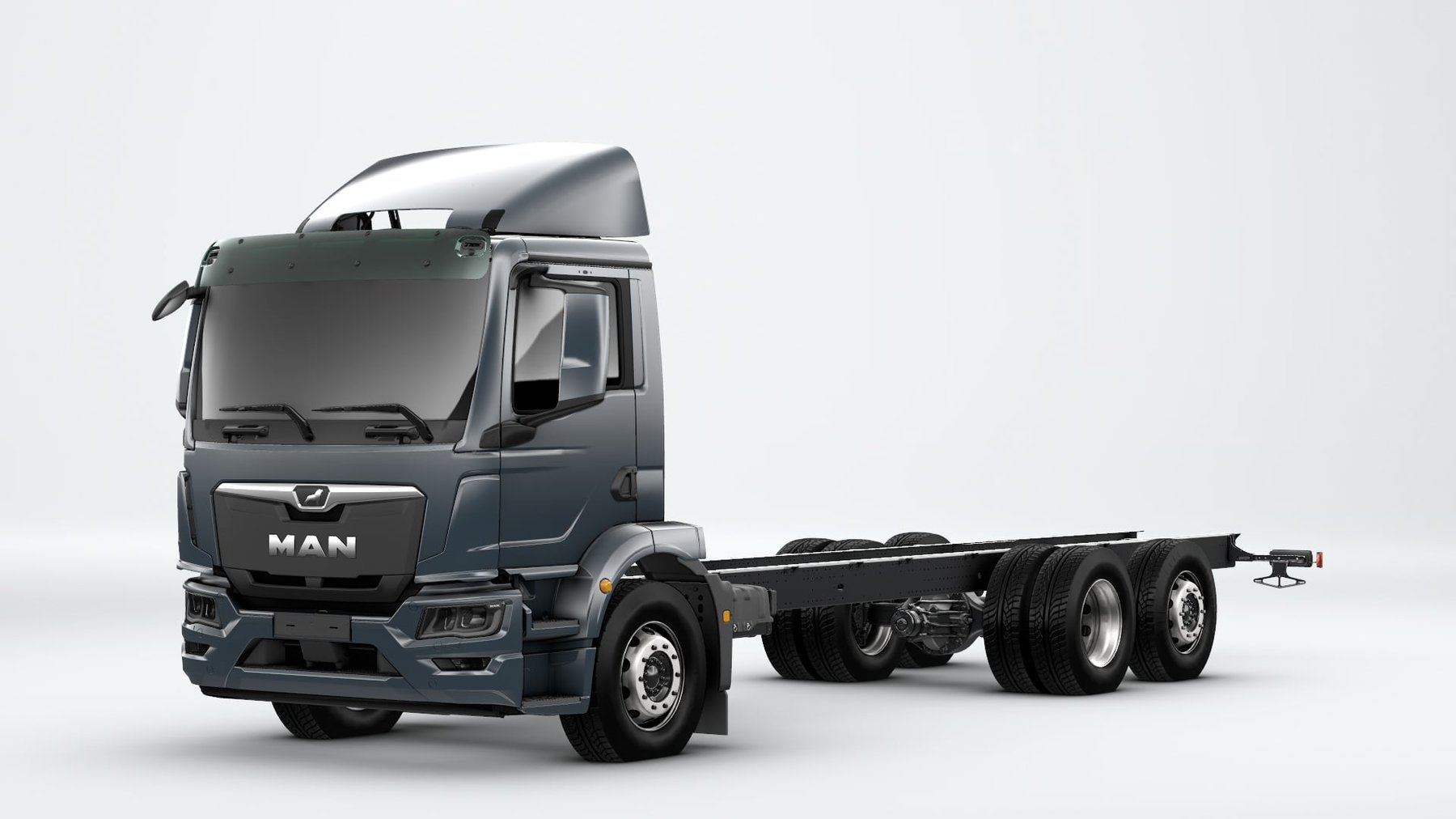

MAN 26.320 6X4H-2BL/450+135

Built: 2008 · Series: TGS

More machines from model year 2008

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 26.320 6X4H-2BL/450+135 from MAN is part of the TGS series. Production: 2008. The engine delivers 235 kW, with a displacement of 10,518 cm³. The vehicle is 8,450 mm long and 2,550 mm wide. The unladen weight is 14,350 kg. The gross vehicle weight is 26,000 kg. The TGS series covers 791 models. Rated output within it ranges from 184 to 427 kW; the 26.320 6X4H-2BL/450+135 sits in the lower part of that range with 235 kW. Its immediate neighbours are the TGS 12.250 below it with 184 kW and the TGS 18.330 above it with 243 kW. Unladen weight within it ranges from 6,400 to 43,750 kg; here the 26.320 6X4H-2BL/450+135 sits in the lower part of that range with 14,350 kg. 5237 MAN models across 68 series are on record.

MAN TGS — heavy class, read the same way as TGL and TGM

The TGS follows the same rule as its smaller siblings: gross vehicle weight in tonnes before the dot, engine output in horsepower after it. A TGS 18.440 is rated at 18 tonnes and delivers 440 hp. Anyone who knows the TGL or TGM has nothing new to learn — only the class is different.

Read on 4 more paragraphs

The four abbreviations together form MAN's Trucknology Generation: TGL for the light class, TGM for the medium, TGS for the heavy and TGX for the heavy long-haul class. TGS and TGX share their engineering largely; what separates them is the cab and the layout. The TGS is the worker, the TGX the traveller.

The practical dividing line follows from that. Anyone running construction, tipper, silo, hooklift or heavy distribution work ends up with the TGS. Anyone sleeping in the vehicle night after night is better served by the TGX. Between the two it is not power that decides but the cab and frame design.

The axle configuration usually stands right after the type number: 4x2, 6x2, 6x4, 8x4. It says how many wheels there are and how many of them are driven. For site work it is the single most important figure — an 8x4 reaches places where a 4x2 stops, regardless of horsepower.

For used purchases the rule of all commercial vehicles applies: the type number gives weight and power but no year. Two TGS 18.440 can be a decade apart in emissions stage, gearbox and equipment. What decides is first registration and emissions standard.

Sources: MAN: Guidelines for Fitting Bodies TGS/TGX, MAN Trucknology Generation TGS/TGX

Technical data

Engine

Power235 kWcorrect
Displacement10,518 cm³correct

Dimensions and weights

Length8,450 mmcorrect
Width2,550 mmcorrect
Unladen weight14,350 kgcorrect
Gross vehicle weight26,000 kgcorrect

Where this model stands

Power-to-weight ratio: 16.4 kW/t (235 kW / 14.3 t)

Stronger than 37% of the trucks in the register — out of 25,242 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the MAN 26.320 6X4H-2BL/450+135 have?

The MAN 26.320 6X4H-2BL/450+135 delivers 235 kW.

How much does the MAN 26.320 6X4H-2BL/450+135 weigh?

The unladen weight is 14,350 kg.

What is the gross vehicle weight of the MAN 26.320 6X4H-2BL/450+135?

26,000 kg.

What engine does the MAN 26.320 6X4H-2BL/450+135 have?

10,518 cm³ displacement.

What are the dimensions of the MAN 26.320 6X4H-2BL/450+135?

8,450 mm × 2,550 mm.

When was the MAN 26.320 6X4H-2BL/450+135 built?

Production years: 2008.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
