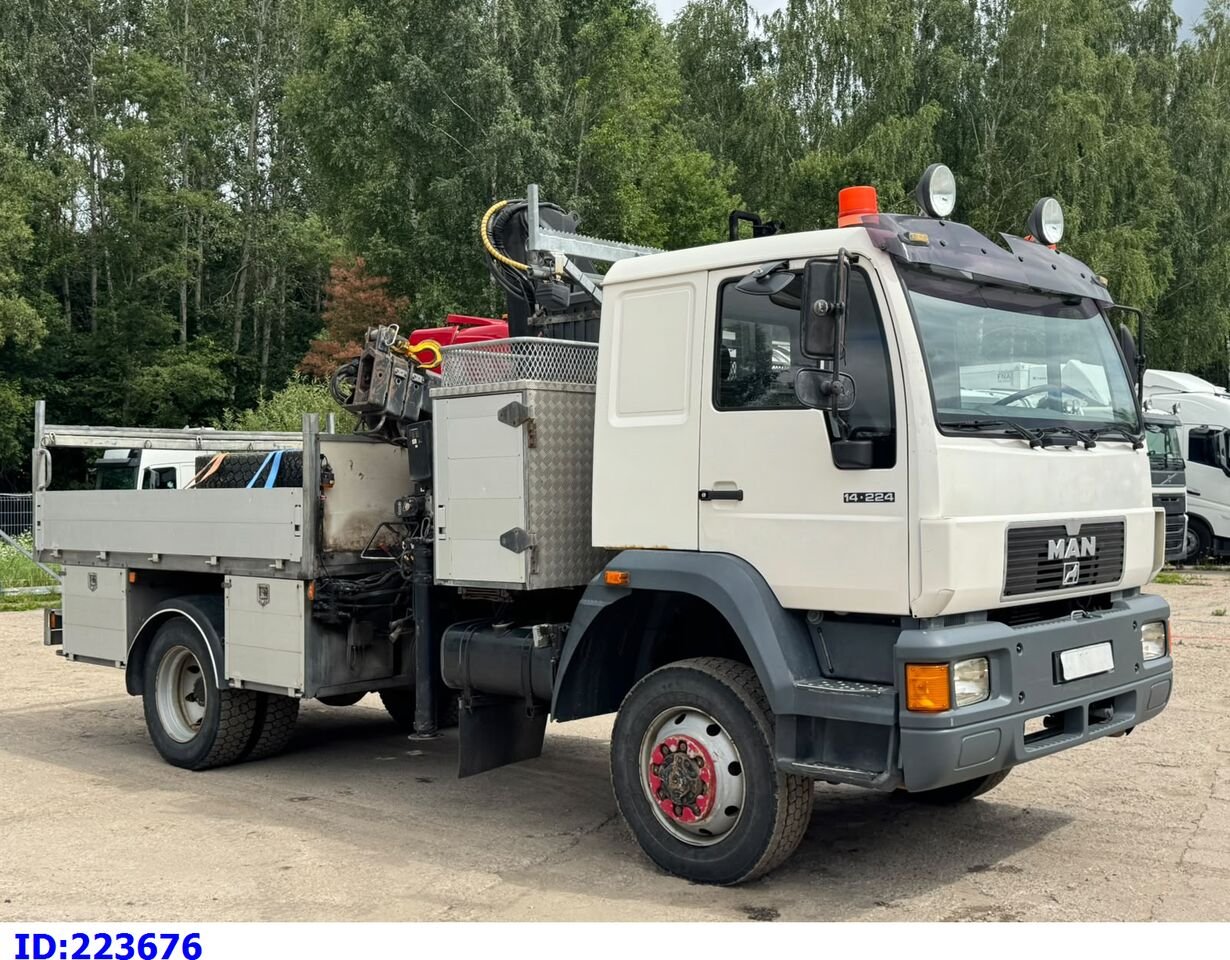

MAN 14.224 LA-4X4/360
Built: 1997 · Series: 14.224
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
MAN 14.224 – the 14-tonne class of the F90 generation with a 224 hp six-cylinder, L, LL and LLL wheelbase versions plus LA-4x4 all-wheel-drive chassis, 6.87-litre displacement, gross weights of 14 to 14.5 t
The 14.224 belongs to MAN's classic two-number type logic: the first number gives the gross weight class in tonnes, here 14, the second the engine output in hp, here 224, matching the 162 to 180 kW recorded in the register. The six-cylinder of 6.87 litres comes from MAN's D08 engine family and was offered in the F90 generation from the mid-1980s into the 1990s in numerous wheelbase and drive variants: L as a mid-length chassis, LL and LLL as long and very long wheelbase for box, furniture and fire-service bodies, and the LA chassis, explicitly marked 4x4 in the model name, with all-wheel drive for construction and forestry traffic.
Read on 3 more paragraphs
The register lists here 16 versions with 162 to 180 kW from six-cylinders of a consistent 6,870 cm³, unladen weights from 6,200 to 9,350 kg, gross weights from 14,000 to 14,500 kg, lengths from 6,800 to 9,600 mm and widths from 2,490 to 2,600 mm.
In its class the 14.224 was a bread-and-butter truck for municipalities, hauliers and building firms needing a rugged two-axle chassis between the lighter 8 and 10-tonners and the heavy three-axle trucks; the all-wheel-drive versions remain sought after by fire brigades and in forestry to this day.
On used examples, the condition of the frame and suspension, mileage on the D08 six-cylinder, clutch and gearbox, on the LA-4x4 chassis the transfer case and portal axles, and rust on the cab and mudguards count; spare parts run through the MAN network and specialist commercial-vehicle workshops.
Sources: SpecCodex register, model data: MAN 14.224, MAN Truck & Bus (manufacturer)
Technical data
Engine
| Displacement | 6,870 cm³correct |
|---|
Dimensions and weights
| Length | 6,970 mmcorrect |
|---|---|
| Width | 2,490 mmcorrect |
| Unladen weight | 9,200 kgcorrect |
| Gross vehicle weight | 14,000 kgcorrect |
Frequently asked questions
How much does the MAN 14.224 LA-4X4/360 weigh?
The unladen weight is 9,200 kg.
What is the gross vehicle weight of the MAN 14.224 LA-4X4/360?
14,000 kg.
What engine does the MAN 14.224 LA-4X4/360 have?
6,870 cm³ displacement.
What are the dimensions of the MAN 14.224 LA-4X4/360?
6,970 mm × 2,490 mm.
When was the MAN 14.224 LA-4X4/360 built?
Production years: 1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
