Technical register for agricultural, construction and commercial machinery · sourced data

Mahindra & Mahindra Limited CE49

Built: 2012 · Series: Other models

More machines from model year 2012

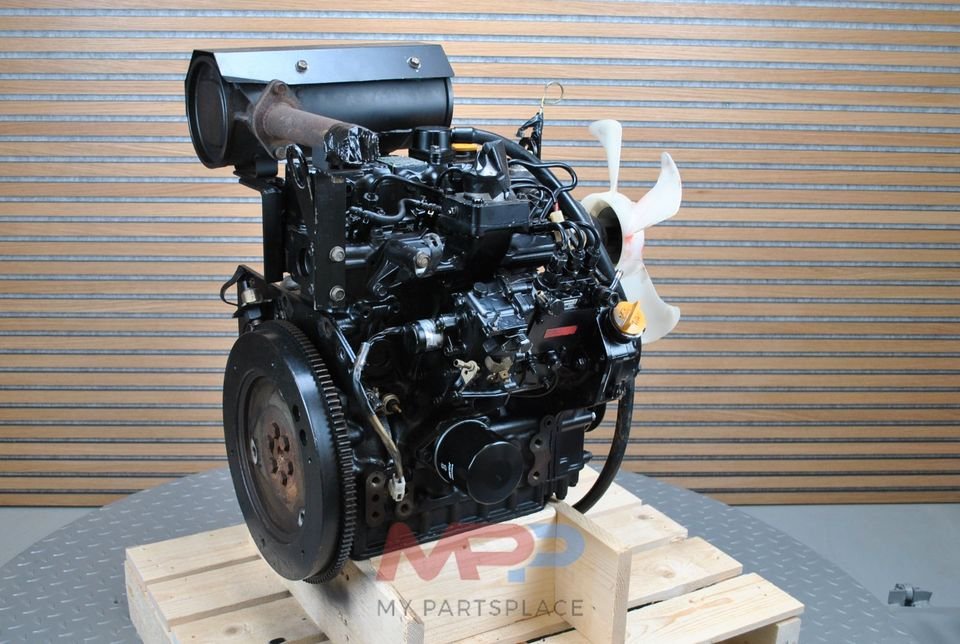

The photo shows the HE-42 from the same series. Source: kleinanzeigen.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Mahindra & Mahindra Limited CE49 is a machine built by Mahindra & Mahindra Limited. Production: 2012. The fuel is 300-500 ppm Low Sulfur Diesel. The rated output is 37 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Mahindra & Mahindra Limited range ranges from 18 to 90 kW; the CE49 sits in the lower part of that range with 37 kW. Its immediate neighbours are the HCE348 below it with 36 kW and the VNE352 above it with 39 kW. 65 Mahindra & Mahindra Limited models across 2 series are on record.

Mahindra & Mahindra Limited – other nonroad diesel engines: the collective page of construction- and farm-machinery engines outside the named models, 18 to 90 kW from three- to four-cylinders, Tier 3 to Tier 4 Final

Mahindra & Mahindra Limited, headquartered in Mumbai and founded in 1945, is one of India's largest conglomerates and one of the highest-selling tractor makers worldwide; its engine division supplies small-displacement diesel engines both for its own compact tractors and construction machinery and for the US market. This page gathers the engines the register could not assign to a named range, from the CE-33 to CE-49 series through DH-45 to DH-65 and HCE343 to HCE374 to HE-39, HE-42, KLU70 and the KSU modelswhile the appended number on several series clearly tracks the rated output.

Read on 3 more paragraphs

The register lists here 64 versions with 18 to 90 kW rated output at 2,100 to 2,800 rpm, from three- to four-cylinders with 88.9 to 98 mm bore and 96 to 132 mm stroke, all with direct injection. Among the emission stages Tier 4 (Final or Phase-in) leads with 52 ahead of Interim Tier 4 with 12 versions; the 37 to 56 kW power category is the largest with 31 versions, maximum torque ranges from 105 to 458 Nm. 63 of the 64 versions are certified for both US certification areas, one solely for states outside California.

Engines of this class drive mini excavators, compact loaders and small farm implements; Mahindra thereby serves both the domestic Indian market and, through its own US subsidiaries, the North American compact construction-machinery segment, where the brand competes chiefly with Kubota and Yanmar.

On a used purchase, operating hours count, the turbocharger (fixed and waste-gate designs depending on the model, some of the smaller engines remain naturally aspirated), the injection pump or injectors, and on Tier 4 Final versions the exhaust aftertreatment; parts supply on the US market is worth clarifying in advance.

Sources: SpecCodex register, model data: Mahindra & Mahindra Limited (weitere Nonroad-Dieselmotoren), Mahindra & Mahindra Limited (manufacturer)

Technical data

Engine

Engine familyCMMLL02.5C49correct
Fuel300-500 ppm Low Sulfur Dieselcorrect
Rated output37 kWcorrect
Power band19<=kW<37correct
Rated speed2,800 rpmcorrect
Maximum torque146.4 N·mcorrect
Speed at max. torque2,100 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore88.9 mmcorrect
Stroke101.6 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect
Emissions stageInterim Tier 4correct

Origin and approval

Sales regionbothcorrect

Frequently asked questions

How much power does the Mahindra & Mahindra Limited CE49 have?

The Mahindra & Mahindra Limited CE49 delivers 37 kW.

When was the Mahindra & Mahindra Limited CE49 built?

Production years: 2012.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data
