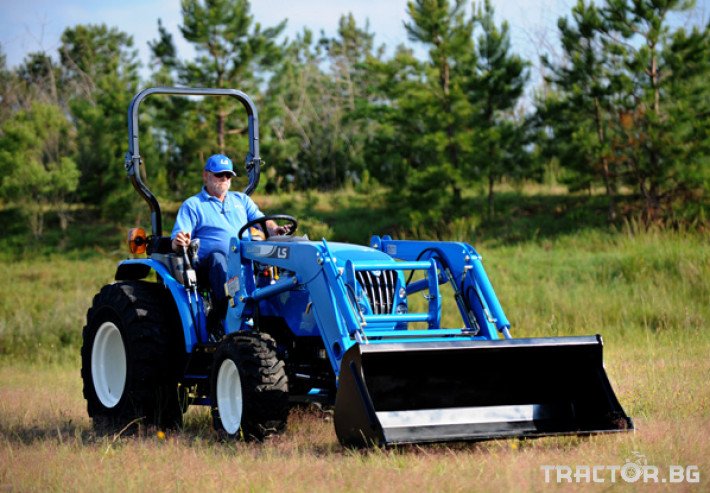

LS Tractor R41 4WD
Series: Other models
The LS Tractor R41 is a tractor from the LS Tractor 4WD Tractor series. Power comes from a four-cylinder engine; from 2.3 litres it draws 42 hp (30.6 kW). With a rated speed of 2,600 rpm, it is built for pulling power, not for revving.
At 30 km/h, that is as fast as it goes.
Within the range, rated power spans from 28.4 to 47.7 hp; with 41.6 hp, the R41 sits in the mid-field. Directly alongside are the R36i with 39 hp below and the R50 with 47.7 hp above.
Technical data
Engine
| Engine model | S4QScorrect |
|---|---|
| Power | 41.6 hp (30.6 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,312.2 cm³correct |
Drivetrain and chassis
| Gearbox type | synchro shuttlecorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Tyre size | 7-14, 4PR(6-14)correct |
| Top speed | 30.3 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Hydraulic pressure | 170correct |
|---|---|
| Fuel tank capacity | 40.1 lcorrect |
Other data
| Height | 2,417.1correct |
|---|
Frequently asked questions
How much power does the LS Tractor R41 have?
The LS Tractor R41 delivers 41.6 hp.
What engine does the LS Tractor R41 have?
4 cylinders, 2,312 cm³ displacement.
How fast does the LS Tractor R41 go?
Top speed is 30.3 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
