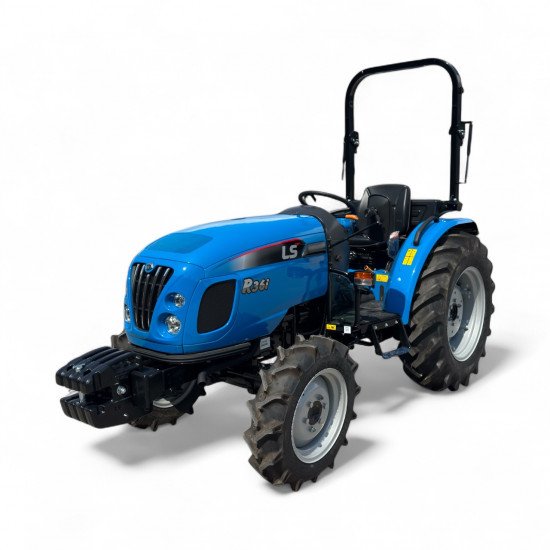

LS Tractor R36i 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the LS Tractor R36i belongs to the LS Tractor 4WD Tractor series. Under the bonnet works a four-cylinder engine displacing 1.8 litres, producing 39 hp (28.7 kW). Rated power is reached at 2,600 rpm.
Top speed is 28 km/h.
Within the range, rated power spans from 28.4 to 47.7 hp; with 39 hp, the R36i sits in the lower third. Directly alongside are the R28i with 28.4 hp below and the R41 with 41.6 hp above.
Technical data
Engine
| Engine model | S4L2correct |
|---|---|
| Power | 39 hp (28.7 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,758.3 cm³correct |
Drivetrain and chassis
| Gearbox type | synchro shuttlecorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 12correct |
| Tyre size | 7-14, 4PR(6-14)correct |
| Top speed | 27.5 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Hydraulic pressure | 170correct |
|---|---|
| Fuel tank capacity | 32.2 lcorrect |
Other data
| Height | 2,353.1correct |
|---|
Frequently asked questions
How much power does the LS Tractor R36i have?
The LS Tractor R36i delivers 39 hp.
What engine does the LS Tractor R36i have?
4 cylinders, 1,758 cm³ displacement.
How fast does the LS Tractor R36i go?
Top speed is 27.5 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
