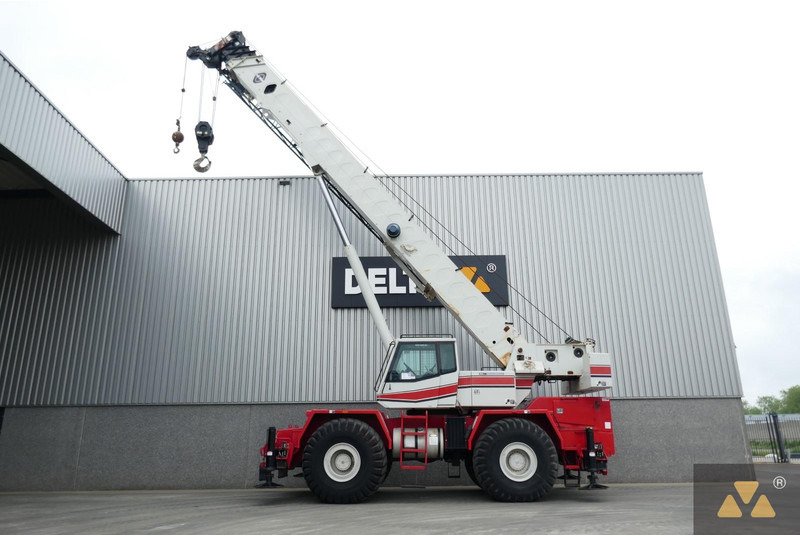

Link-Belt RTC8075

Series: Link-Belt Rough Terrain Crane

Source: https://www.truck1.eu/construction-machinery/rough-terrain-c

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The RTC8075 from Link-Belt is part of the Link-Belt Rough Terrain Crane series. The engine delivers 175.2 kW, with a displacement of 6,600.7 cm³. Torque is 985.7 Nm. Rated speed is 2,000 rpm. The unladen weight is 42,841.3 kg. Ground clearance is 292.6 mm. The tank holds 359.6 litres. The gearbox has 6 forward gears. There are also 6 reverse gears. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 606 litres. The oil fill is 17.4 litres. The electrical system runs on 12 V. The engine fitted is the C6,6. Tyre size: 29,5x25. The Link-Belt Rough Terrain Crane series covers 32 models. Rated output within it ranges from 82 to 257.3 kW; the RTC8075 sits in the middle of that range with 175.2 kW. Its immediate neighbours are the RTC8060 below it with 167.8 kW and the 110 RT above it with 201.3 kW. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine modelC6.6correct
Power175.2 kWcorrect
Rated speed2,000 rpmcorrect
Torque985.7correct
Speed at max. torque1,400 rpmcorrect
Displacement6,600.7 cm³correct
Engine oil capacity17.4 lcorrect

Dimensions and weights

Ground clearance292.6correct
Unladen weight42,841.3 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears6correct
Reverse gears6correct
Tyre size29.5x25correct
System voltage12 Vcorrect

Working data

Hydraulic oil capacity606 lcorrect
Fuel tank capacity359.6 lcorrect

Where this model stands

Power-to-weight ratio: 4.1 kW/t (175 kW / 42.8 t)

Stronger than 39% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Link-Belt RTC8075 have?

The Link-Belt RTC8075 delivers 175 kW.

How much does the Link-Belt RTC8075 weigh?

The unladen weight is 42,841 kg.

What engine does the Link-Belt RTC8075 have?

6,601 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
