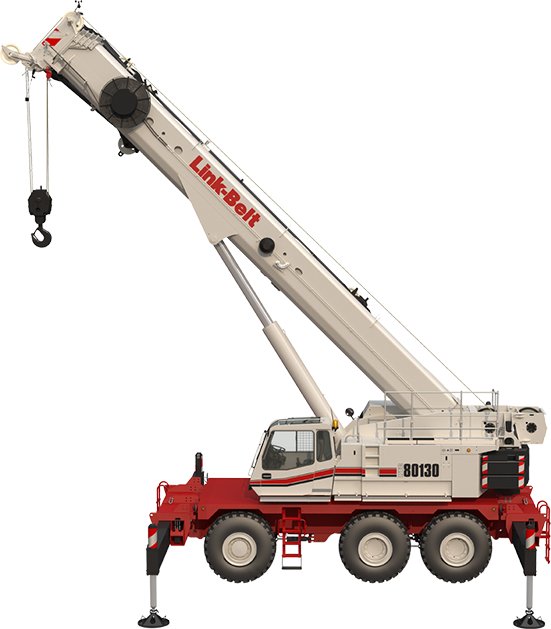

Link-Belt RTC-80130 SERIES II

Series: Link-Belt Rough Terrain Crane

Source: https://www.linkbelt.com/cranes/rough-terrain-cranes/rtc-801

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The RTC-80130 SERIES II from Link-Belt is part of the Link-Belt Rough Terrain Crane series. The engine delivers 349.8 hp (257.3 kW), has 6 cylinders, with a displacement of 8,901.5 cm³. The engine comes from Cummins QSL. Torque is 1,424 Nm. Rated speed is 2,000 rpm. The unladen weight is 59,951 kg. The wheelbase measures 4,900.2 mm. Ground clearance is 292.6 mm. The tank holds 340.7 litres. The gearbox has 6 forward gears. There are also 6 reverse gears. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 965.7 litres. The electrical system runs on 12 V. The engine fitted is the C6,6. Tyre size: 26,5 x 25. The Link-Belt Rough Terrain Crane series covers 32 models. Rated output within it ranges from 111.5 to 349.8 hp; the RTC-80130 SERIES II sits at the top of that range with 349.8 hp. Its immediate neighbours are the RTC80100 Series II below it with 334.6 hp. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCummins QSLcorrect
Engine modelC6.6correct
Power349.8 hp (257.3 kW)correct
Rated speed2,000 rpmcorrect
Torque1,424correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement8,901.5 cm³correct

Dimensions and weights

Wheelbase4,900.2correct
Ground clearance292.6correct
Unladen weight59,951 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears6correct
Reverse gears6correct
Tyre size26.5 x 25correct
System voltage12 Vcorrect

Working data

Hydraulic oil capacity965.7 lcorrect
Fuel tank capacity340.7 lcorrect

Where this model stands

Power-to-weight ratio: 4.3 kW/t (257 kW / 60 t)

Stronger than 67% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Link-Belt RTC-80130 SERIES II have?

The Link-Belt RTC-80130 SERIES II delivers 350 hp.

How much does the Link-Belt RTC-80130 SERIES II weigh?

The unladen weight is 59,951 kg.

What engine does the Link-Belt RTC-80130 SERIES II have?

6 cylinders, 8,902 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
