Start › Mobile & rough terrain cranes › Link-Belt › ATC822

Link-Belt ATC822

Series: Link-Belt All Terrain Crane

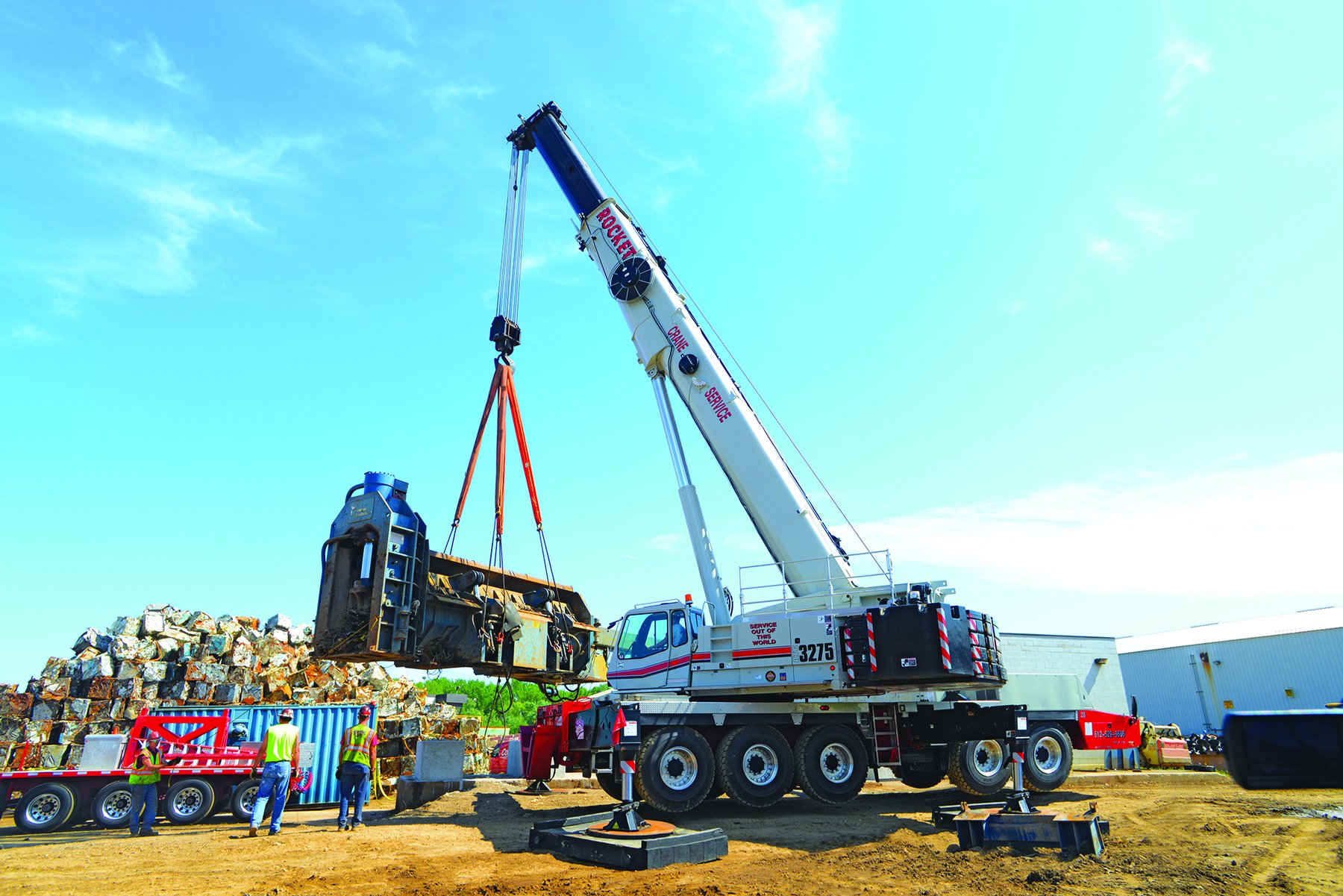

The photo shows the ATC-3275 from the same series. Source: https://www.lectura-specs.fr/fr/modele/grues/grues-tous-terr

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Link-Belt All Terrain Crane series from Link-Belt includes the ATC822. The engine delivers 233.2 hp (171.5 kW), has 6 cylinders, with a displacement of 5,883 cm³. Torque is 820.3 Nm. Rated speed is 2,500 rpm. The unladen weight is 17,791 kg. Ground clearance is 411.5 mm. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The electrical system runs on 24 V. Tyre size: 16,0 R 20. The Link-Belt All Terrain Crane series covers 7 models. Rated output within it ranges from 233.2 to 562.7 hp; the ATC822 sits at the bottom of that range with 233.2 hp. Its immediate neighbours are the ATC3130 above it with 530.3 hp. 157 Link-Belt models across 10 series are on record. The model is listed under Cranes & access platforms. 14 verified figures from 1 source are on file.

Technical data

Engine

Power233.2 hp (171.5 kW)correct
Rated speed2,500 rpmcorrect
Torque820.3correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement5,883 cm³correct

Dimensions and weights

Ground clearance411.5correct
Unladen weight17,791 kgcorrect

Drivetrain and chassis

Gearbox typeZF full powershift transmissioncorrect
Forward gears6correct
Reverse gears3correct
Tyre size16.0 R 20correct
System voltage24 Vcorrect

Where this model stands

Power-to-weight ratio: 9.6 kW/t (172 kW / 17.8 t)

Stronger than 38% of the mobile & rough terrain cranes in the register — out of 591 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Link-Belt ATC822 have?

The Link-Belt ATC822 delivers 233 hp.

How much does the Link-Belt ATC822 weigh?

The unladen weight is 17,791 kg.

What engine does the Link-Belt ATC822 have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
