Liebherr Machines Bulle D946 A7
Built: 2012-2013 · Series: D946
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

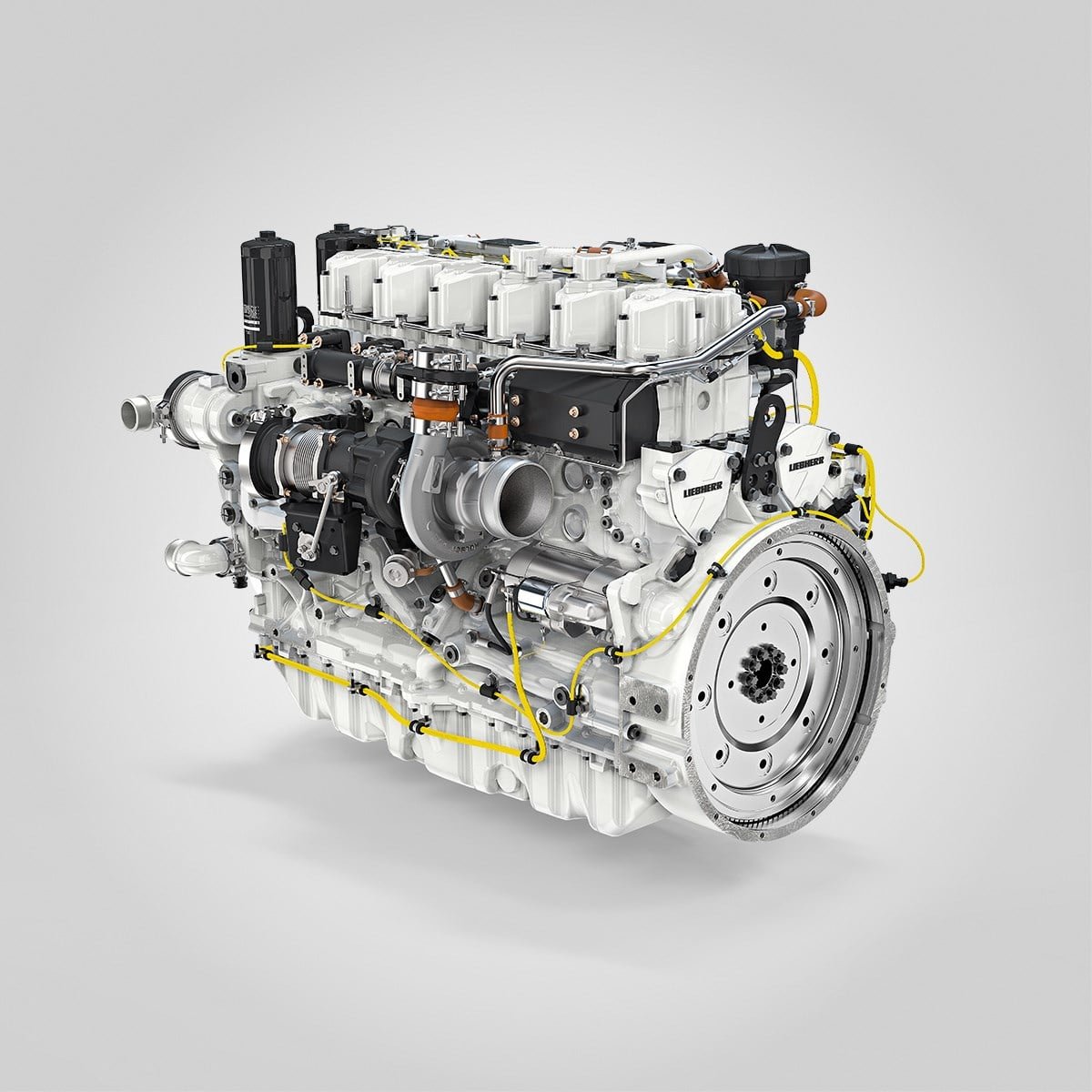

Liebherr D946 A7 (Liebherr Machines Bulle) – six-cylinder diesel engine from Switzerland: 300 to 400 kW, 1,900 to 2,000 rpm, 130 mm bore, Tier 4 Final, 1,890 to 2,523 Nm torque
Liebherr Machines Bulle is the Liebherr group's engine plant in Bulle, Switzerland, building diesel engines both for Liebherr's own construction and earthmoving machinery and for outside customers. The D946 A7 range is the six-cylinder version alongside the smaller four-cylinder D934 and appears here in five designations (A7, A7-04, A7-05, A7-24, A7-25).
Read on 3 more paragraphs
The register lists here five versions with 300 to 400 kW rated output at 1,900 to 2,000 rpm. The six-cylinder inline engine measures 130 mm bore and 150 mm stroke, maximum torque ranges from 1,890 to 2,523 Nm at 1,350 to 1,500 rpm. The engines are direct-injection, turbocharged and predominantly certified to Tier 4 (Final or Phase-in), in the 130 to 560 kW power category.
In this power class, the D946 drives large wheel loaders, crawler excavators and other heavy mobile earthmoving machines from Liebherr as well as outside manufacturers; with its own engine plant in Bulle, Liebherr covers the entire drivetrain development in-house, from four-cylinders to heavy six-cylinders.
On a used purchase, operating hours and the service history of the high-pressure injection system count, along with the condition of the turbocharger and charge-air ducting, the function of the diesel particulate filter and SCR catalyst with AdBlue dosing, and the tightness of the cooling system and intake tract; parts supply runs through Liebherr's own service network.
Sources: SpecCodex register, model data: Liebherr Machines Bulle D946, Liebherr (manufacturer)
Technical data
Engine
| Engine code | D946 R06K72001correct |
|---|---|
| Engine family | DLHAL12.0TECcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 300 kWcorrect |
| Power band | 130<=kW<=560correct |
| Rated speed | 2,000 rpmcorrect |
| Maximum torque | 1,890 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 130 mmcorrect |
| Stroke | 150 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Waste Gate Turbocharger, Non Waste Gate Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Interim Tier 4correct |
Origin and approval
| Version | D946 R06K72001correct |
|---|---|
| Sales region | USA excluding Californiacorrect |
Frequently asked questions
How much power does the Liebherr Machines Bulle D946 A7 have?
The Liebherr Machines Bulle D946 A7 delivers 300 kW.
When was the Liebherr Machines Bulle D946 A7 built?
Production years: 2012-2013.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
