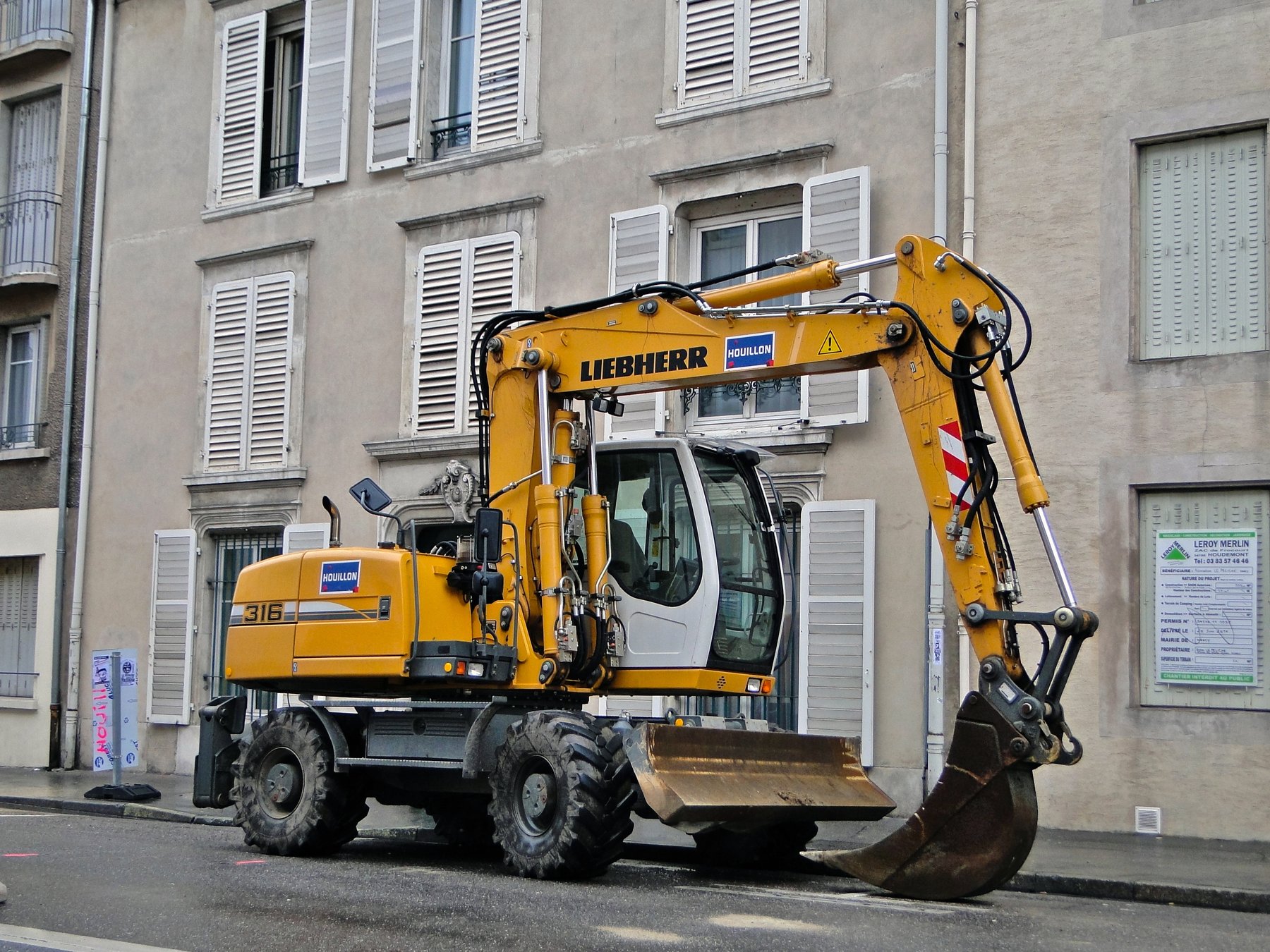

Liebherr A316

Series: Liebherr Mobile Excavator

Source: https://commons.wikimedia.org/w/index.php?curid=18468172 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the A316, Liebherr offers a model from the Liebherr Mobile Excavator series. The engine delivers 118.6 hp (87.2 kW), has 4 cylinders, with a displacement of 4,801.4 cm³. Rated speed is 1,800 rpm. The unladen weight is 18,890 kg. The wheelbase measures 2,542 mm. Ground clearance is 390.1 mm. The tank holds 290.3 litres. The pump delivers 270.3 l/min. The hydraulic tank holds 170.3 litres. Working pressure is 350 bar. The cooling system holds 52.2 litres. The oil fill is 18.2 litres. The engine fitted is the BF4M1013EC. The Liebherr Mobile Excavator series covers 18 models. Rated output within it ranges from 118.6 to 306.2 hp; the A316 sits at the bottom of that range with 118.6 hp. Its immediate neighbours are the A900CUS above it with 119.6 hp. 480 Liebherr models across 20 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBF4M1013ECcorrect
Power118.6 hp (87.2 kW)correct
Rated speed1,800 rpmcorrect
Cylinders4correct
Displacement4,801.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity52.2 lcorrect
Engine oil capacity18.2 lcorrect

Dimensions and weights

Wheelbase2,542correct
Ground clearance390.1correct
Unladen weight18,890 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect

Working data

Pump flow270.3 l/mincorrect
Hydraulic oil capacity170.3 lcorrect
Hydraulic pressure350 barcorrect
Fuel tank capacity290.3 lcorrect

Other data

Height3,160.8correct

Where this model stands

Power-to-weight ratio: 4.6 kW/t (87 kW / 18.9 t)

Stronger than 34% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Liebherr A316 have?

The Liebherr A316 delivers 119 hp.

How much does the Liebherr A316 weigh?

The unladen weight is 18,890 kg.

What engine does the Liebherr A316 have?

4 cylinders, 4,801 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
