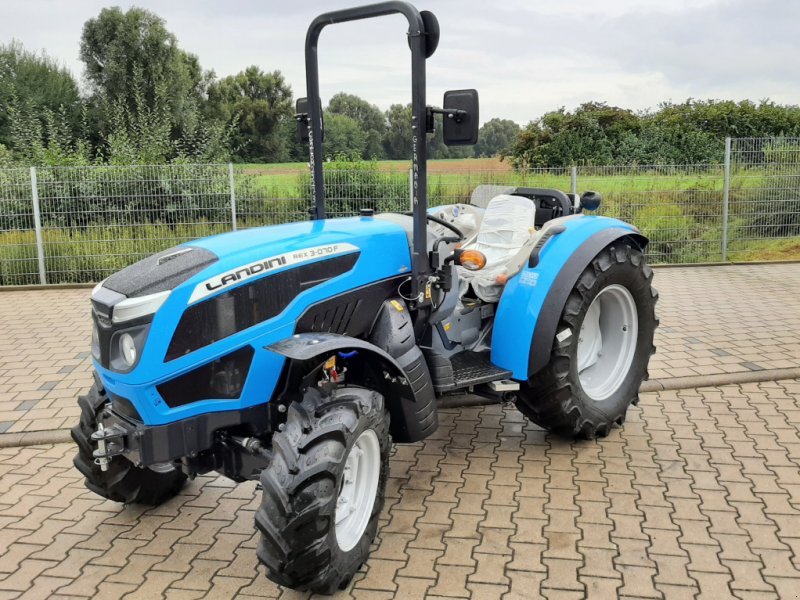

Landini Rex 60 F 4WD
Series: Rex
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Landini Rex – the specialty tractors from Fabbrico for fruit and wine: Rex 60 F to Rex 4-120, F for Frutteto, V for Vigneto, S as intermediate track, Perkins engines, 44 to 74 kW
Landini of Fabbrico in Emilia-Romagna is Italy's oldest tractor maker – founded in 1884, since 1994 the core of the Argo group with McCormick – and the Rex is its specialty-tractor range for orchards, vineyards and greenhouses: low, narrow and agile, with bonnet and cab that fit under canopies and between vine rows. The type logic: the letters name the track width – F for Frutteto, the orchard version of medium width, V for Vigneto, the narrow vineyard version, S for an intermediate track – and the number roughly the output in hp. The older generation is called Rex 60 F to Rex 105 F, the younger from the 2010s Rex 3-070 to Rex 4-120, where the first digit gives the cylinder count and the following ones the hp: a Rex 4-120 F is a four-cylinder with 120 hp in orchard track.
Read on 3 more paragraphs
The register lists 21 versions with 43.6 to 73.5 kW from Perkins three- and four-cylinders of 3,294 to 4,400 cm³ – 1103C-33 and 1104C-44, partly with turbo – at 2,200 rpm, PTO outputs of 54 to 91 hp, unladen weights from 2,440 to 2,839 kg and lengths from 3,820 to 4,010 mm.
Landini's hallmarks in the Rex are the shuttle transmission with many creeper gears for spraying, the low height under 2.3 m and the cab with carbon filter for crop protection – equipment with which Landini belongs, alongside Fendt, Same and New Holland, to the big names of the specialty-tractor market.
On used tractors, operating hours, the condition of engine and shuttle, front axle and steering, which suffer from constant lock, and the hydraulics, which in orchard work stand under constant load from sprayers, are what count.
Sources: Kennwerte der Modelle Landini Rex, Landini (Argo Tractors, Hersteller)
Technical data
Engine
| Engine model | 1103C-33correct |
|---|---|
| Power | 59.3 hp (43.6 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,293.8 cm³correct |
Dimensions and weights
| Length | 3,900 mmcorrect |
|---|---|
| Ground clearance | 380.2correct |
| Unladen weight | 2,669.4 kgcorrect |
Drivetrain and chassis
| Gearbox type | Speed fivecorrect |
|---|---|
| Forward gears | 15correct |
| Reverse gears | 15correct |
| Tyre size | Front 280/70R18, Rear 14.9R24correct |
| Turning radius | 2,530 mmcorrect |
Working data
| Pump flow | 81.8 l/mincorrect |
|---|---|
| Hydraulic pressure | 180correct |
| Fuel tank capacity | 43.9 lcorrect |
Other data
| Cab height | 2,252.5correct |
|---|---|
| PTO output | 54 hpcorrect |
More machines with this engine (Perkins 1103C-33, 9)
Where this model stands
Power-to-weight ratio: 16.3 kW/t (44 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Landini Rex 60 F have?
The Landini Rex 60 F delivers 59.3 hp.
How much does the Landini Rex 60 F weigh?
The unladen weight is 2,669 kg.
What engine does the Landini Rex 60 F have?
3 cylinders, 3,294 cm³ displacement.
What is the PTO output of the Landini Rex 60 F?
PTO output is 54 hp.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
