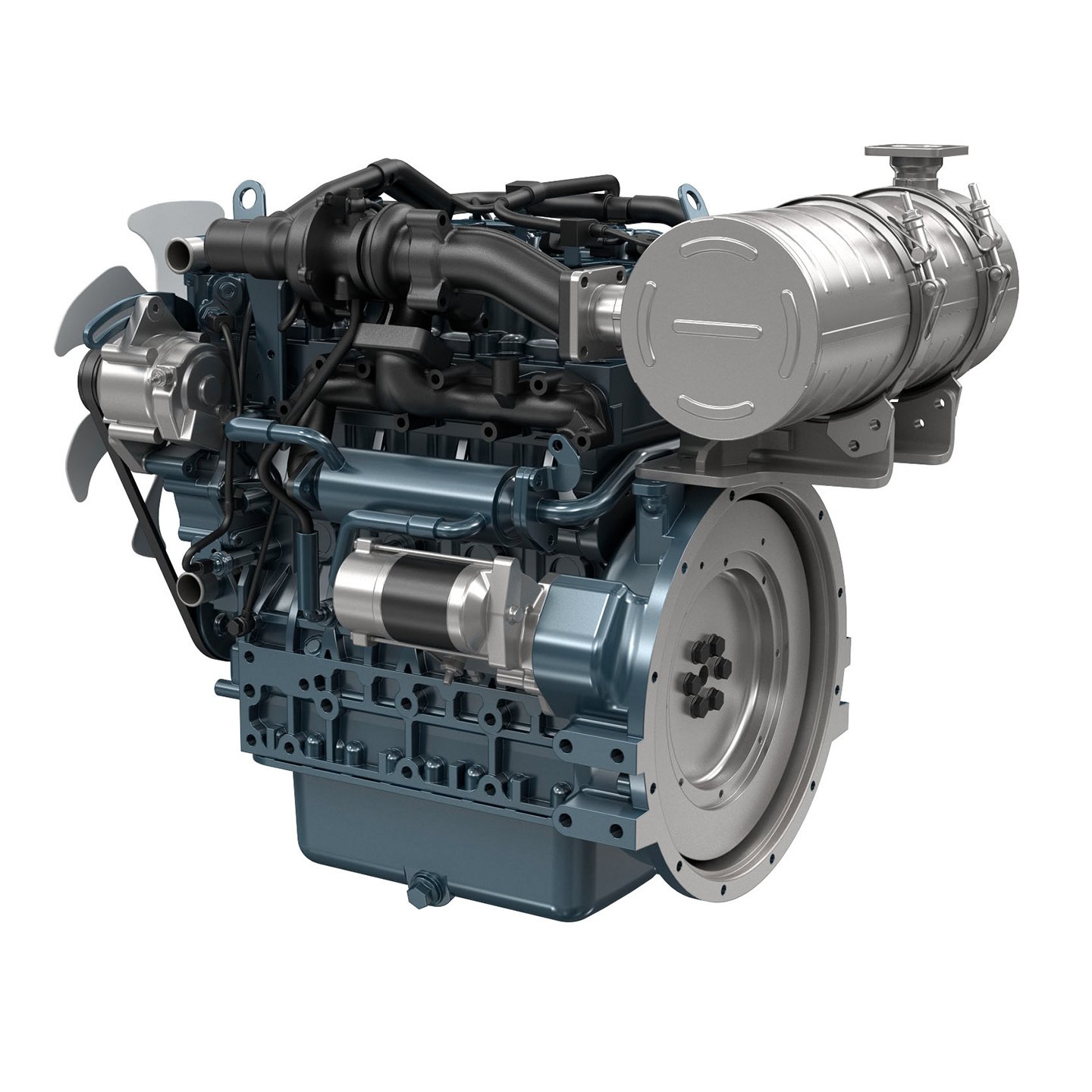

Kubota V2403-CR-NTI-BG-EF
Built: 2022-2026 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Reading a Kubota engine — the letter is the cylinder count
On Kubota industrial engines the first letter gives the number of cylinders: Z for two, D for three, V for four. The number that follows gives the displacement. A Z482 is therefore a twin of 0.479 litres, a D722 a three-cylinder of 0.719 litres, a V1505 a four-cylinder of around 1.5 litres and a V2403 a four-cylinder of 2,434 cc. Know the scheme and the designation alone tells you the layout.
Read on 3 more paragraphs
The engines fall into families. The Super Mini series covers the Z482, Z602, D722 and D902 — the smallest units, designed for compact dimensions and quiet running. The 05 series spans D905 to V1505, the 03 series D1403 to V2403. Within a family many components are shared, which eases servicing and parts supply.
These engines rarely work alone. They sit in mini excavators, compact loaders, generators, sweepers and access platforms — wherever tight space meets high operating hours. The Z482 even powers light vehicles from the French manufacturer Aixam; the turbocharged V1505 works in the SHERP amphibious vehicle.
When buying a used machine it is therefore worth reading the engine plate rather than the machine name: parts availability follows the engine type, not the device it sits in.
Sources: Kubota Engine, Encyclopedia MDPI: Kubota Engines, Typhon Machinery
Technical data
Engine
| Engine code | V2403-CR-NTI-BG-EF02correct |
|---|---|
| Engine family | NKBXL02.4GMCcorrect |
| Engine families | NKBXL02.4GMC; PKBXL02.4GMC; SKBXL02.4GMC; RKBXL02.4GMCcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 52 kWcorrect |
| Power band | 37<=kW<56correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 273.7 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 87 mmcorrect |
| Stroke | 102.4 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Non Waste Gate Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | V2403-CR-NTI-BG-EF02correct |
|---|---|
| Built from | 2022correct |
| Built to | 2025correct |
| Model year from | 2022correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Kubota V2403-CR-NTI-BG-EF have?
The Kubota V2403-CR-NTI-BG-EF delivers 52 kW.
When was the Kubota V2403-CR-NTI-BG-EF built?
Production years: 2022-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
