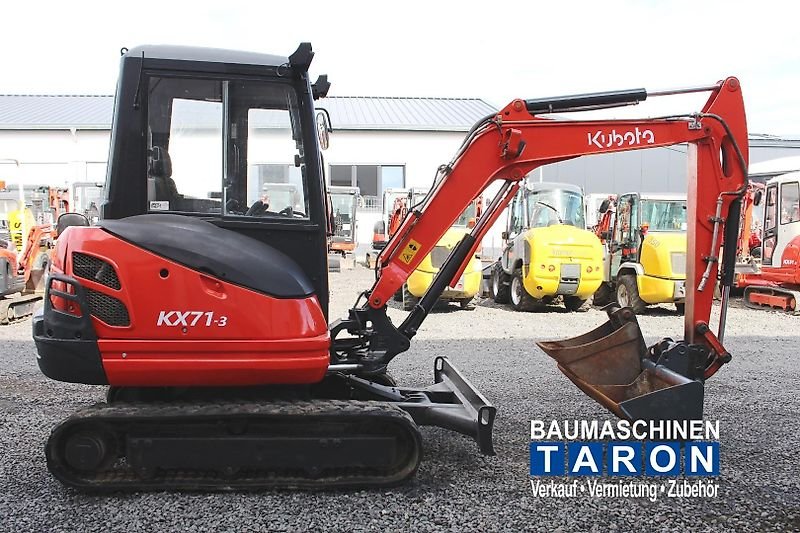

Kubota KX71-3HGLS
Series: Kubota Mini Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kubota Mini Excavators: the U and KX Series Split on Tail Swing, Plus the Hydraulically Retractable Track Gauge on the Smallest Models
Kubota splits its mini excavators into two families: the KX-series with conventional tail swing (the rear overhangs the tracks when the upper structure rotates) and the U-series with tight to zero tail swing (the rear stays within the track width). The "Kubota Mini Excavator" bucket holds 51 models spanning 5 to 46 kW, from the tiny K008-3 up to larger U- and KX-series machines.
Read on 4 more paragraphs
The U-series is built for working right against walls, fences or buildings, since the machine doesn't hit anything as it rotates — examples include the U15, U25, U27 and U35. The KX-series (e.g. KX41-3, KX91-3) trades that for the stability of conventional tail swing on open jobsites.
The digit after the hyphen marks the emissions generation: Kubota has revised its engine families several times, from E2 (Tier 2) through E3/E3B (Tier 3) to E4 (Tier 4 Final) and E5 (EU Stage V) — parts aren't necessarily interchangeable across generations.
On the smallest models such as the K008-3, the track gauge can be hydraulically retracted so the machine fits through narrow doorways or garden gates, then widened back out to the sturdier working gauge on site; the larger KX- and U-series models, by contrast, have a fixed track gauge.
When buying used, check the generation alongside cylinder count (3 or 4, depending on class) and the condition of the undercarriage and hydraulic cylinders — a common wear point especially on the compact K- and U-series machines.
Technical data
Engine
| Engine make | Kubotacorrect |
|---|---|
| Engine model | V1505-E4correct |
| Fuel | dieselcorrect |
| Power | 24.7 hp (19.7 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,497.8 cm³correct |
| Cooling | liquid-cooledcorrect |
| Coolant capacity | 5.7 lcorrect |
Dimensions and weights
| Ground clearance | 286.5correct |
|---|---|
| Unladen weight | 2,970 kgcorrect |
Working data
| Pump flow | 32.6 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 50.7 lcorrect |
| Fuel tank capacity | 45 lcorrect |
Other data
| Cab height | 2,432.3correct |
|---|
Where this model stands
Power-to-weight ratio: 6.6 kW/t (20 kW / 3 t)
Stronger than 58% of the mini excavators in the register — out of 400 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Kubota KX71-3HGLS have?
The Kubota KX71-3HGLS delivers 24.7 hp.
How much does the Kubota KX71-3HGLS weigh?
The unladen weight is 2,970 kg.
What engine does the Kubota KX71-3HGLS have?
4 cylinders, 1,498 cm³ displacement, Diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
