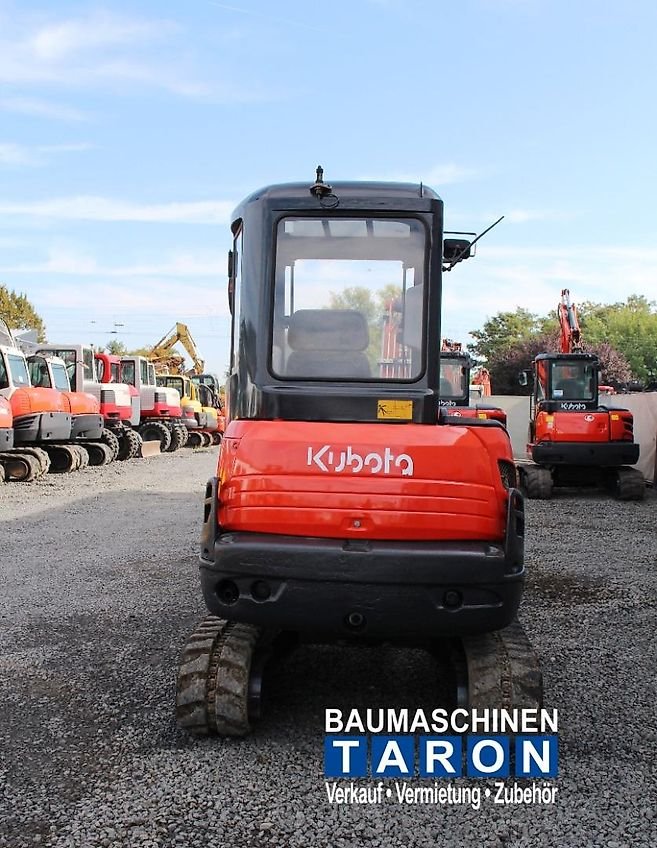

Kubota KX71-3GLS

Series: Kubota Mini Excavator

Source: https://cn.baupool.com/details/%E5%BE%AE%E5%9E%8B%E6%8C%96%E

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kubota Mini Excavator series from Kubota includes the KX71-3GLS. The engine delivers 24.7 hp (19.7 kW), has 4 cylinders, with a displacement of 1,497.8 cm³. The engine comes from Kubota. Rated speed is 2,300 rpm. The unladen weight is 2,970 kg. Ground clearance is 286.5 mm. The tank holds 45 litres. The engine is liquid-cooled. The fuel is diesel. The pump delivers 32.6 l/min. The hydraulic tank holds 50.7 litres. The cooling system holds 5.7 litres. The engine fitted is the V1505-E4. The Kubota Mini Excavator series covers 51 models. Rated output within it ranges from 7.8 to 67.5 hp; the KX71-3GLS sits in the lower part of that range with 24.7 hp. Its immediate neighbours are the U25-HGS below it with 21.2 hp and the KX033-4G above it with 25.1 hp. 1026 Kubota models across 33 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine makeKubotacorrect
Engine modelV1505-E4correct
Fueldieselcorrect
Power24.7 hp (19.7 kW)correct
Rated speed2,300 rpmcorrect
Cylinders4correct
Displacement1,497.8 cm³correct
Coolingliquid-cooledcorrect
Coolant capacity5.7 lcorrect

Dimensions and weights

Ground clearance286.5correct
Unladen weight2,970 kgcorrect

Working data

Pump flow32.6 l/mincorrect
Hydraulic oil capacity50.7 lcorrect
Fuel tank capacity45 lcorrect

Other data

Height2,432.3correct

Where this model stands

Power-to-weight ratio: 6.6 kW/t (20 kW / 3 t)

Stronger than 58% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kubota KX71-3GLS have?

The Kubota KX71-3GLS delivers 24.7 hp.

How much does the Kubota KX71-3GLS weigh?

The unladen weight is 2,970 kg.

What engine does the Kubota KX71-3GLS have?

4 cylinders, 1,498 cm³ displacement, Diesel.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 16 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
