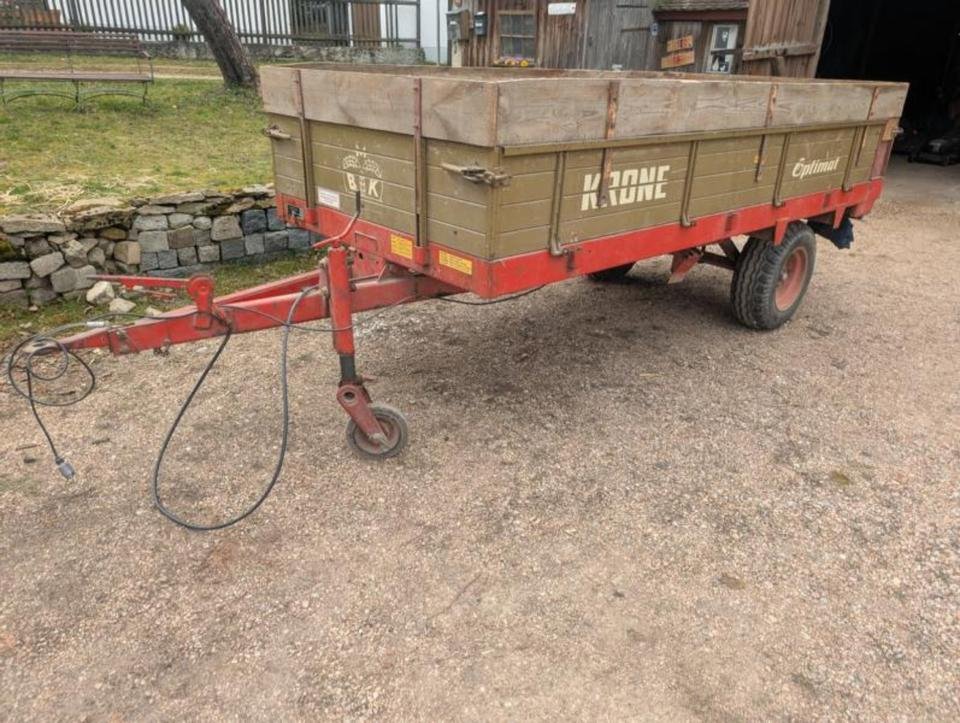

Krone AZW 20
Built: 1984-1984 · Series: AZW
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Krone AZW – trailer from the Werlte commercial vehicle maker: six versions with 18 to 20 t gross weight, the type number matches the gross weight in tonnes
Fahrzeugwerk Bernard Krone grew out of the blacksmith's business Bernard Krone founded in Spelle in 1906; after years of building agricultural machinery, the commercial vehicle division for trailers and semi-trailers was set up in 1971 at the new Werlte plant. The AZW range covers the brand's trailers in the register; on models such as AZW 18 and AZW 20, the number in the type designation matches the gross weight in tonnes.
Read on 3 more paragraphs
The register lists 6 versions with unladen weights from 3,000 to 5,280 kg, gross weights from 18,000 to 20,000 kg, lengths from 8,240 to 9,250 mm and widths from 2,420 to 2,510 mm.
Trailers of this class extend truck chassis into drawbar combinations for general freight and are used where swap-body or pallet loads are split between two loading decks; in this market segment Krone competes with manufacturers such as Schmitz Cargobull and Fliegl. Their shorter length compared with semi-trailers also makes manoeuvring on tight depot yards easier.
When buying used, check the drawbar and overrun brake for play and braking effect, the frame and side members for corrosion, the axles, brakes and tyres, and, depending on the body, the tarpaulin, roller shutters and lashing rails; the registration papers should be checked against the actual vehicle condition for the permitted axle loads.
Sources: Kennwerte der Modelle Krone AZW, Krone Trailer (Hersteller)
Technical data
Dimensions and weights
| Length | 8,240 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 4,670 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Krone AZW 20 weigh?
The unladen weight is 3,200 kg.
What is the gross vehicle weight of the Krone AZW 20?
20,000 kg.
Up to what speed is the Krone AZW 20 approved?
Approved up to 100 km/h.
What are the dimensions of the Krone AZW 20?
8,240 mm × 2,500 mm.
When was the Krone AZW 20 built?
Production years: 1984.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
