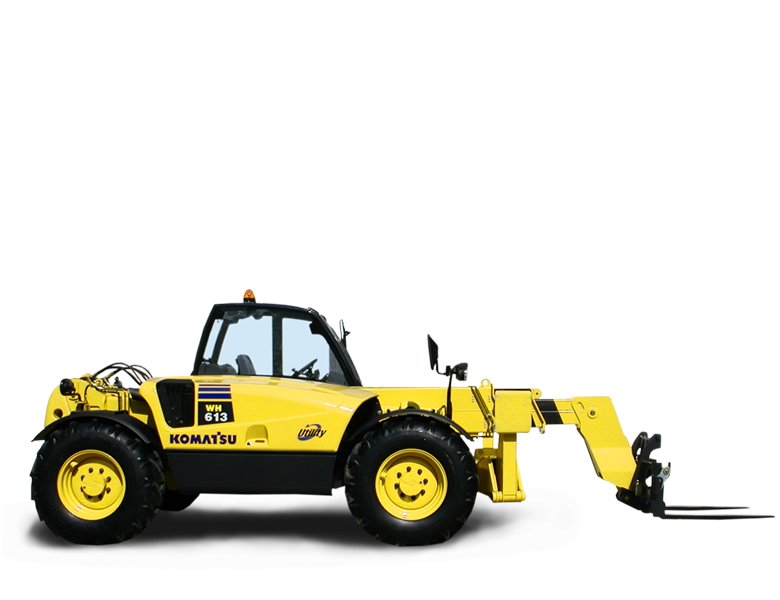

Komatsu WH613

Series: Komatsu Telescopic Forklift

Source: https://www.komatsu.eu/de/alte-modelle/teleskoplader/wh613

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Komatsu Telescopic Forklift series from Komatsu includes the WH613. The engine delivers 74 kW, has 4 cylinders, with a displacement of 4,485.1 cm³. Torque is 420 Nm. Rated speed is 2,200 rpm. The unladen weight is 9,800 kg. The wheelbase measures 3,020.6 mm. Ground clearance is 402.3 mm. The tank holds 130.2 litres. The gearbox has 5 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 142.3 l/min. The hydraulic tank holds 107.1 litres. Working pressure is 260 bar. The electrical system runs on 12 V. The engine fitted is the SAA4D104E-2. Tyre size: 405/70-24 PR14. The Komatsu Telescopic Forklift series covers 5 models. 1159 Komatsu models across 39 series are on record. The model is listed under Telehandlers. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine modelSAA4D104E-2correct
Power74 kWcorrect
Rated speed2,200 rpmcorrect
Torque420correct
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Displacement4,485.1 cm³correct
AspirationTurbo-intercooledcorrect

Dimensions and weights

Wheelbase3,020.6correct
Ground clearance402.3correct
Unladen weight9,800 kgcorrect

Drivetrain and chassis

Gearbox typeFull power shiftcorrect
Forward gears5correct
Reverse gears3correct
Tyre size405/70-24 PR14correct
System voltage12 Vcorrect

Working data

Pump flow142.3 l/mincorrect
Hydraulic oil capacity107.1 lcorrect
Hydraulic pressure260correct
Fuel tank capacity130.2 lcorrect

Where this model stands

Power-to-weight ratio: 7.6 kW/t (74 kW / 9.8 t)

Stronger than 34% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Komatsu WH613 have?

The Komatsu WH613 delivers 74 kW.

How much does the Komatsu WH613 weigh?

The unladen weight is 9,800 kg.

What engine does the Komatsu WH613 have?

4 cylinders, 4,485 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
