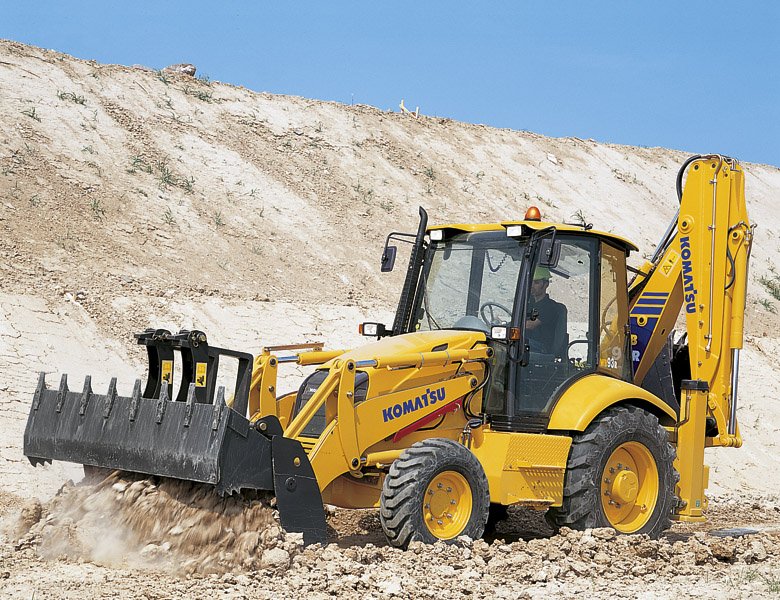

Komatsu WB93R-2

Series: Komatsu Loader Backhoe

Source: https://www.komatsu.eu/de/alte-modelle/baggerlader/wb93r-2

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Komatsu WB93R-2 is a model in the Komatsu Loader Backhoe series. The engine delivers 101.4 hp (72.9 kW), has 4 cylinders, with a displacement of 4,413 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,176.3 mm. Ground clearance is 432.8 mm. The tank holds 130.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 165 l/min. The hydraulic tank holds 92.4 litres. Working pressure is 200 bar. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The engine fitted is the S4D106-2SFA. The Komatsu Loader Backhoe series covers 16 models. Rated output within it ranges from 26.6 to 114.6 hp; the WB93R-2 sits at the top of that range with 101.4 hp. Its immediate neighbours are the WB93R-5 below it with 100.7 hp and the WB97R-2 above it with 114.6 hp. 1159 Komatsu models across 39 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelS4D106-2SFAcorrect
Power101.4 hp (72.9 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement4,413 cm³correct
Aspirationnaturalcorrect
Coolant capacity18.2 lcorrect

Dimensions and weights

Wheelbase2,176.3correct
Ground clearance432.8correct

Drivetrain and chassis

Gearbox typefull power shift 4WDcorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow165 l/mincorrect
Hydraulic oil capacity92.4 lcorrect
Hydraulic pressure200correct
Fuel tank capacity130.2 lcorrect

Frequently asked questions

How much power does the Komatsu WB93R-2 have?

The Komatsu WB93R-2 delivers 101 hp.

What engine does the Komatsu WB93R-2 have?

4 cylinders, 4,413 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
