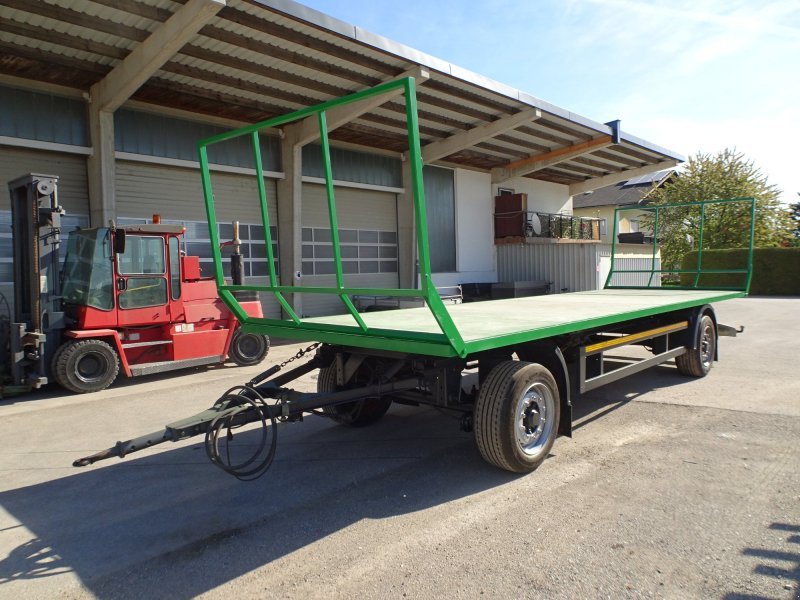

Kogel SP 18
Built: 2011-2011 · Series: Other models
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Kögel – other models: German semi-trailers of the S/SN/SNCO series, from curtainsiders to box bodies, gross weights up to 45,000 kg
Kögel is a German semi-trailer manufacturer based in Bavaria; this collective page gathers models outside the named series. S and SN denote semi-trailers, the figure, usually 18 or 24, the payload class in tonnes, SNCO marks curtainsider versions with a sliding tarpaulin — tautliner is the English term for this —, while GN and AW mark curtain-side and box-body builds respectively.
Read on 3 more paragraphs
The register lists 59 versions with kerb weights from 1,900 to 9,600 kg and gross weights from 3,500 to 45,000 kg. Widths run from 2,350 to 2,600 mm; the longer models carry recorded lengths up to 14,550 mm, typical of classic three-axle semi-trailers.
Semi-trailers of this type form the backbone of European road freight, from the classic tarpaulin trailer and tautliner to box bodies for temperature-sensitive cargo. Kögel ranks among the established German semi-trailer makers, supplying hauliers and fleet operators across Europe.
When buying used, check the frame and axle units for rust and wear; on curtainsiders, also check the sliding tarpaulin, the tensioning ratchets and roof bows. The brake system, kingpin and landing legs should be inspected, along with the tyres and lighting system. Spare parts for axles, brakes and tarpaulins are available from the manufacturer and independent commercial-vehicle parts dealers.
Sources: Kennwerte der Modelle Kögel (weitere Modelle), Kögel (Hersteller)
Technical data
Dimensions and weights
| Length | 14,040 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,650 mmcorrect |
| Unladen weight | 6,350 kgcorrect |
| Gross vehicle weight | 30,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Kogel SP 18 weigh?
The unladen weight is 6,350 kg.
What is the gross vehicle weight of the Kogel SP 18?
30,000 kg.
Up to what speed is the Kogel SP 18 approved?
Approved up to 100 km/h.
What are the dimensions of the Kogel SP 18?
14,040 mm × 2,550 mm.
When was the Kogel SP 18 built?
Production years: 2011.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
