Kobelco CK800

Series: Kobelco Crawler Crane

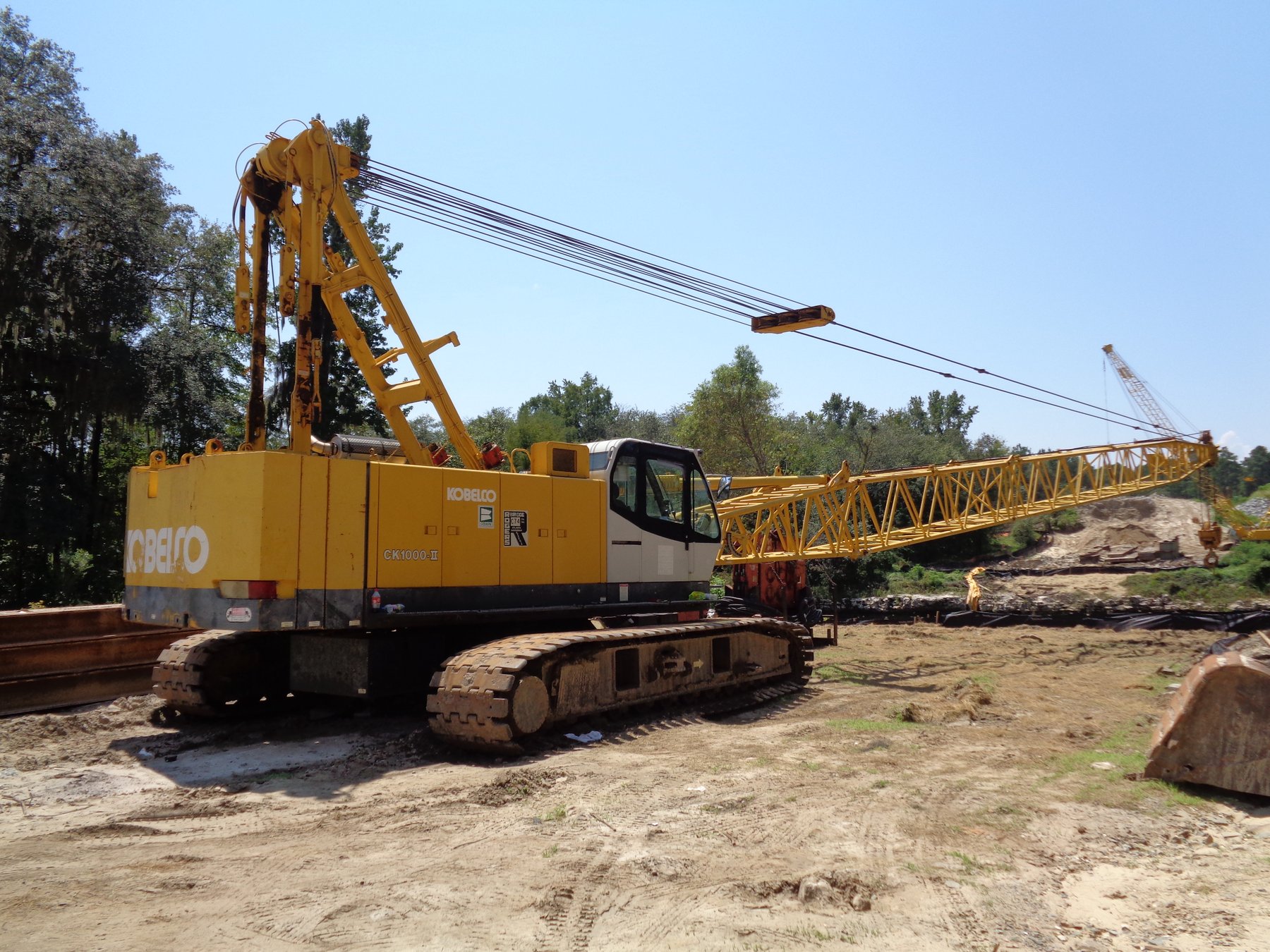

The photo shows the CK1000 from the same series. Source: https://commons.wikimedia.org/w/index.php?curid=42704736

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Kobelco Crawler Crane series from Kobelco includes the CK800. The engine delivers 176.8 hp (130.1 kW), has 6 cylinders, with a displacement of 11,094 cm³. The engine comes from Mitsubishi. Torque is 675.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 59,600 kg. Ground clearance is 396.2 mm. Top speed is 1.3 km/h. The tank holds 280.1 litres. Maximum torque is reached at 1,200 rpm. The hydraulic tank holds 249.8 litres. The engine fitted is the 6D22C. The Kobelco Crawler Crane series covers 10 models. Rated output within it ranges from 176.8 to 370.1 hp; the CK800 sits at the bottom of that range with 176.8 hp. Its immediate neighbours are the CK850-II above it with 216 hp. 98 Kobelco models across 6 series are on record. The model is listed under Cranes & access platforms. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine makeMitsubishicorrect
Engine model6D22Ccorrect
Power176.8 hp (130.1 kW)correct
Rated speed2,000 rpmcorrect
Torque675.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders6correct
Displacement11,094 cm³correct
Aspirationwater-cooledcorrect

Dimensions and weights

Width4,785.4correct
Ground clearance396.2correct
Unladen weight59,600 kgcorrect

Drivetrain and chassis

Top speed1.3 km/hcorrect

Working data

Hydraulic oil capacity249.8 lcorrect
Fuel tank capacity280.1 lcorrect

Where this model stands

Power-to-weight ratio: 2.2 kW/t (130 kW / 59.6 t)

Stronger than 24% of the crawler cranes in the register — out of 56 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kobelco CK800 have?

The Kobelco CK800 delivers 177 hp.

How much does the Kobelco CK800 weigh?

The unladen weight is 59,600 kg.

What engine does the Kobelco CK800 have?

6 cylinders, 11,094 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
