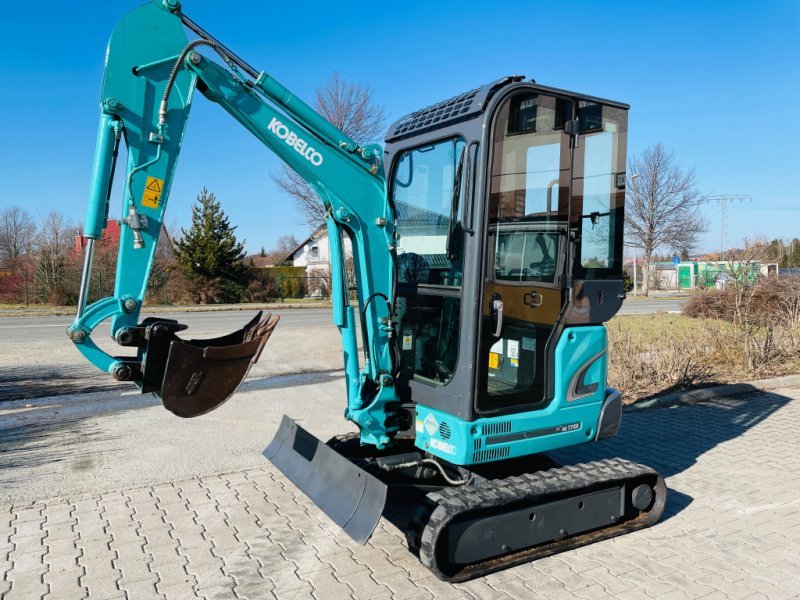

Kobelco 17SR ACERA

Series: Kobelco Mini Excavator

Source: https://www.technikboerse.com/gebraucht/minibagger-759

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 17SR ACERA, Kobelco offers a model from the Kobelco Mini Excavator series. The engine delivers 11.3 kW, has 3 cylinders, with a displacement of 952.1 cm³. Rated speed is 2,200 rpm. The unladen weight is 1,650 kg. Ground clearance is 182.9 mm. The tank holds 22.3 litres. The pump delivers 32.9 l/min. The hydraulic tank holds 15.1 litres. Working pressure is 206 bar. The engine fitted is the L3E-W231KBS. The Kobelco Mini Excavator series covers 16 models. Rated output within it ranges from 8.9 to 29.3 kW; the 17SR ACERA sits at the bottom of that range with 11.3 kW. Its immediate neighbours are the SK17SR-5E below it with 10.8 kW and the SK25SR-6E above it with 14.7 kW. 98 Kobelco models across 6 series are on record. The model is listed under Excavators & compaction. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine modelL3E-W231KBScorrect
Power11.3 kWcorrect
Rated speed2,200 rpmcorrect
Cylinders3correct
Displacement952.1 cm³correct

Dimensions and weights

Ground clearance182.9correct
Unladen weight1,650 kgcorrect

Working data

Pump flow32.9 l/mincorrect
Hydraulic oil capacity15.1 lcorrect
Hydraulic pressure206 barcorrect
Fuel tank capacity22.3 lcorrect

Other data

Height2,350correct

Where this model stands

Power-to-weight ratio: 6.8 kW/t (11 kW / 1.6 t)

Stronger than 15% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Kobelco 17SR ACERA have?

The Kobelco 17SR ACERA delivers 11.3 kW.

How much does the Kobelco 17SR ACERA weigh?

The unladen weight is 1,650 kg.

What engine does the Kobelco 17SR ACERA have?

3 cylinders, 952 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
