Junge ZNST11P061
Built: 2010-2010 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

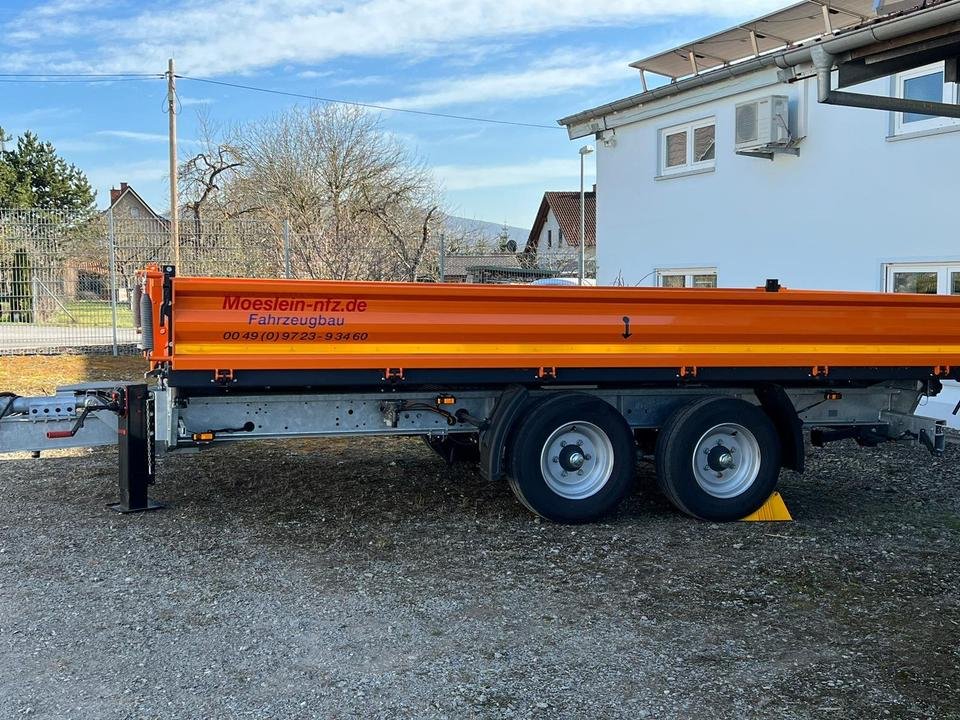

Junge Fahrzeugbau – other models: the collective page of semi-trailers and tipper trailers outside the named ranges, from ZKO-10T to ZPPX-M070, gross weight 6,000 to 10,500 kg
Junge Fahrzeugbau of Hagenow builds semi-trailers and tipper trailers; this page gathers the models outside the named ranges. Designations such as ZKO-10T point with the number 10 to the 10-tonne weight class, ZNST11P061, ZNSX11P and APSX11P072 stand for further versions of the same construction group, while SAHN-T 5/2 and ZPPX-M070 add further individual models to the range.
Read on 3 more paragraphs
The register lists here 7 versions with unladen weights from 3,075 to 3,875 kg, gross weights from 6,000 to 10,500 kg, lengths from 8,030 to 10,650 mm and a constant width of 2,550 mm.
With gross weights up to a little over 10 tonnes, the range sits on the boundary between trailer classes O3 and O4 and is used as a tipper or semi-trailer in building-materials and agricultural transport, where the uniform width of 2.55 m makes full use of the permitted road width. The narrow band of unladen weights from about 3.1 to 3.9 tonnes points to a fairly uniform frame construction across the whole range.
On used tipper trailers, the tightness and condition of the body, the operation of the tipping hydraulics and side-panel locking, the frame and welds, and axles and brakes count; spare parts for hydraulic cylinders and axles run through the manufacturer and commercial-vehicle specialists. At the periodic inspection, wear on the body and leaks in the hydraulics are common points of attention on tipper trailers.
Technical data
Dimensions and weights
| Length | 8,030 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,650 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
| Gross vehicle weight | 10,500 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Junge ZNST11P061 weigh?
The unladen weight is 3,200 kg.
What is the gross vehicle weight of the Junge ZNST11P061?
10,500 kg.
Up to what speed is the Junge ZNST11P061 approved?
Approved up to 100 km/h.
What are the dimensions of the Junge ZNST11P061?
8,030 mm × 2,550 mm.
When was the Junge ZNST11P061 built?
Production years: 2010.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
