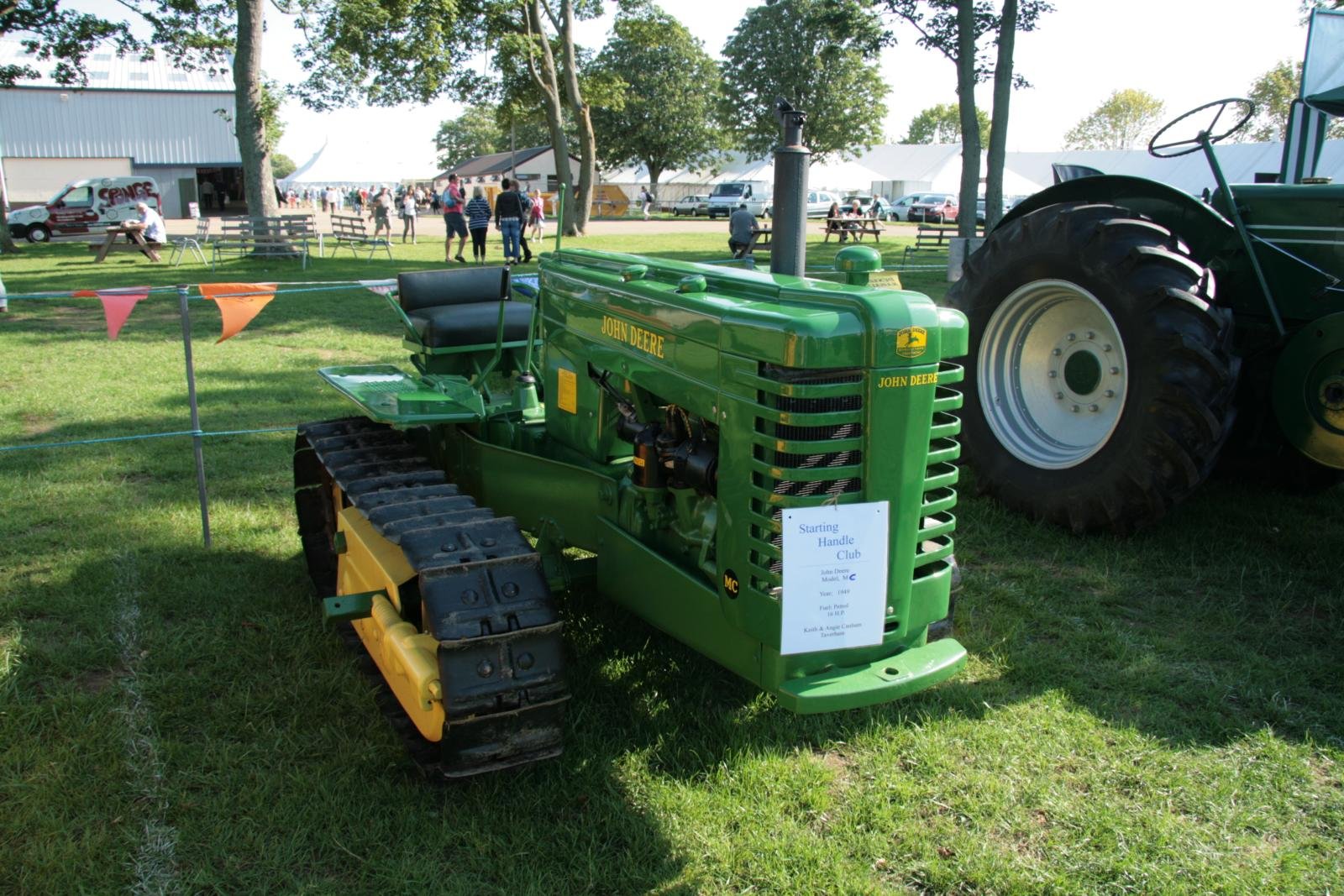

John Deere Model MC
Built: 1949-1952 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere Model MC rolled off the line in 1949-1952 as a tractor. It is powered by a two-cylinder engine producing 13 kW. Rated power is reached at 1,650 rpm.
Propulsion comes from tracked.
It runs on petrol; the engine is water-cooled. It was replaced by the John Deere 40. Within the range, rated power spans from 10 to 420 kW; with 13 kW, the Model MC sits at the bottom end. Directly alongside are the STX38 with 10 kW below and the 670 with 13.7 kW above.
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Fuel | petrolcorrect |
| Power | 18 hp (13 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 100.5 cu incorrect |
| Bore | 4 in (101,6 mm)correct |
| Stroke | 4 in (101,6 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Unladen weight | 2,600 lbs (1179,3 kg)correct |
|---|
Drivetrain and chassis
| Drive | tracked undercarriagecorrect |
|---|
Working data
| Fuel tank capacity | 10 galcorrect |
|---|---|
| PTO speed | 550correct |
Origin and approval
| Plant | Dubuque, Iowa, USAcorrect |
|---|---|
| Successor | John Deere 40correct |
Frequently asked questions
How much power does the John Deere Model MC have?
The John Deere Model MC delivers 18 hp.
What engine does the John Deere Model MC have?
2 cylinders, gasoline.
When was the John Deere Model MC built?
Production years: 1949-1952.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
