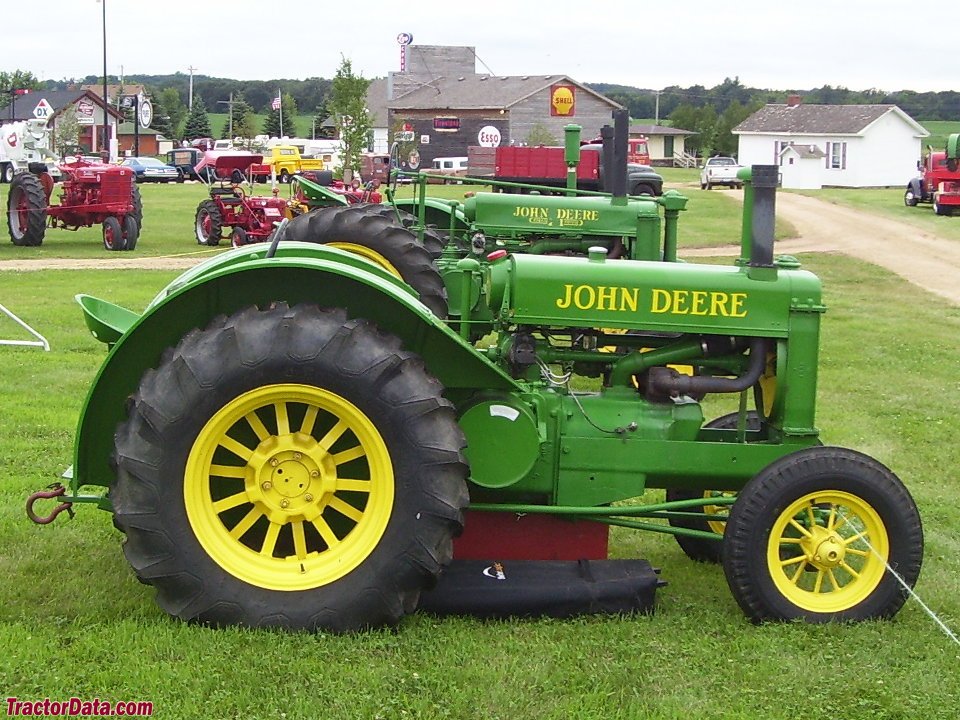

John Deere Model AR
Built: 1935-1953 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere Model AR rolled off the line in 1935-1953 as a tractor. Fitted is a two-cylinder engine.
It combines a manual gearbox with 2-WD.
It runs on All fuel till 1940, petrol or kerosene; the engine is water-cooled. As standard, it runs on 6x28 (steel)/6.0x16 (tyre) tyres at the front and 10x42 (steel/11.25x24 (tyre) at the rear. It was replaced by the JD New Generation series.
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Fuel | All fuel till 1940; Gasoline or Kerosenecorrect |
| Power | 30/26 (belt/Drawbar) hpcorrect |
| Cylinders | 2correct |
| Displacement | 309 cu in (5.1 litre)correct |
| Bore | 5.5 inches (140 mm); 5.5 / 140 (post 1940)correct |
| Stroke | 6.5 inches (165 mm); 6.75 / 171 (post 1940)correct |
| Naturally aspirated | naturally aspiratedcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 124 inches (3140 mm)correct |
|---|---|
| Width | 64/75 (1620/1900 mm)un/styledcorrect |
| Unladen weight | 3, 400/5, 600 ib (1, 542/2540 kg)correct |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | manual gearboxcorrect |
| Gearbox make | John Deerecorrect |
| Forward gears | 4 or 6correct |
| Reverse gears | 1correct |
| Front tyres | 6x28 (steel)/6.0x16 (tyre)correct |
| Rear tyres | 10x42 (steel/11.25x24 (tyre)correct |
Working data
| Fuel tank capacity | 16/20 gal (60/75 litre) Un/styledcorrect |
|---|---|
| Linkage category | Drawbar onlycorrect |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|---|
| Successor | JD New Generation seriescorrect |
| List price when new | $2, 300 (1951)correct |
Frequently asked questions
What engine does the John Deere Model AR have?
2 cylinders, All fuel till 1940; Gasoline or Kerosene.
When was the John Deere Model AR built?
Production years: 1935-1953.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
