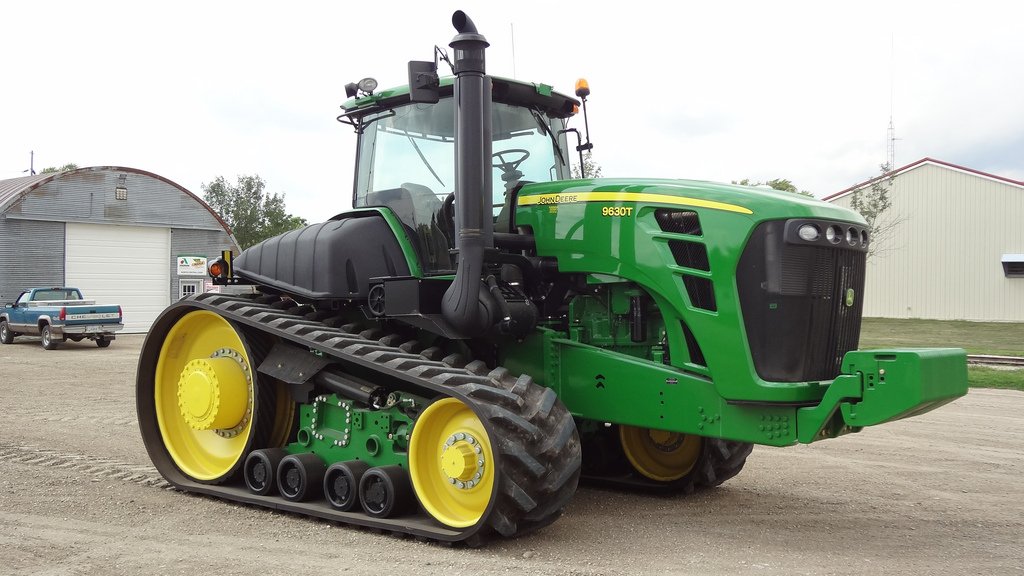

John Deere 9630T
Built: 2007-2011 · Series: Other models
← Predecessor: 9620T · Successor: 9560 RT →
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2007-2011, the John Deere 9630T is a tractor from John Deere. It is powered by a six-cylinder engine producing 395 kW. Rated power is reached at 2,100 rpm.
Drive type: tracked.
It runs on diesel; the engine is water-cooled. The predecessor was the John Deere 9620T, the successor the John Deere 9560 RT. Within the range, rated power spans from 10 to 420 kW; with 395 kW, the 9630T sits at the top. Directly alongside are the 9620 with 373 kW below and the 9560 R with 420 kW above.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW, John Deere, Yanmar and Lombardini engines
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: Kennwerte der Modelle John Deere (weitere Modelle), John Deere (Hersteller)
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Engine model | PowerTech Pluscorrect |
| Fuel | dieselcorrect |
| Power | 537.4 hp (395 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 13,501.3 cm³ (823.8 cu in)correct |
| Bore | 5,197 incorrect |
| Stroke | 6,496 incorrect |
| Aspiration | turbocharged, air-to-air aftercoolingcorrect |
| Cooling | water-cooledcorrect |
| Coolant capacity | 53.4 lcorrect |
| Engine oil capacity | 41.6 lcorrect |
Dimensions and weights
| Length | 6,010 mmcorrect |
|---|---|
| Width | 3,450 mmcorrect |
| Height | 3,400 mmcorrect |
| Wheelbase | 2,940 mm (116 in)correct |
| Unladen weight | 19,992 kg (43,920 lbs)correct |
Drivetrain and chassis
| Drive | tracked undercarriagecorrect |
|---|---|
| Gearbox | 18V/6Rcorrect |
| Gearbox type | 18-speed automatic gearbox powershift transmissioncorrect |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Forward gears | 18correct |
| Reverse gears | 6correct |
| Top speed | 40 km/hcorrect |
Working data
| Lifting capacity | 6,940 kgcorrect |
|---|---|
| Lifting capacity | 15,300 lbs (6 940 kg)correct |
| Pump flow | 182.1 l/mincorrect |
| Hydraulic oil capacity | 102.2 lcorrect |
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 1,249.2 l (330 gal)correct |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|
Other data
| Linkage category | Cat IV/IV Ncorrect |
|---|---|
| Predecessor | John Deere 9620Tcorrect |
| Successor | John Deere 9560 RTcorrect |
| System voltage | 12 Vcorrect |
More machines with this engine (John Deere PowerTech Plus, 10)
Where this model stands
Power-to-weight ratio: 19.8 kW/t (395 kW / 20 t)
Power class: Heavy (> 180 hp)
Stronger than 100% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 9630T have?
The John Deere 9630T delivers 537 hp.
How much does the John Deere 9630T weigh?
The unladen weight is 19,992 kg.
What engine does the John Deere 9630T have?
6 cylinders, 13,501 cm³ displacement, Diesel.
How fast does the John Deere 9630T go?
Top speed is 40 km/h.
How much does the rear linkage of the John Deere 9630T lift?
The rear linkage lifts 6,940 kg.
What are the dimensions of the John Deere 9630T?
6,010 mm × 3,450 mm × 3,400 mm.
When was the John Deere 9630T built?
Production years: 2007-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
