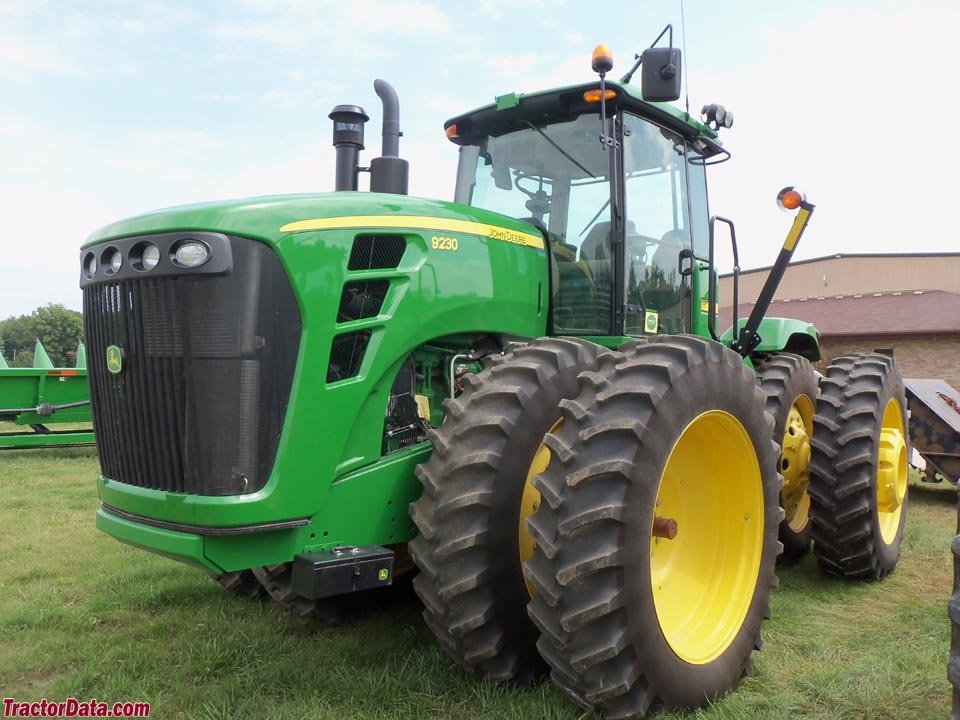

John Deere 9230
Built: 2007-2011 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2007-2011, the John Deere 9230 is a tractor from John Deere. 330 hp (242 kW) is what the six-cylinder engine gets out of 9 litres. Rated power is reached at 2,100 rpm.
It runs on diesel; the engine is water-cooled. The predecessor was the John Deere 9220, the successor the John Deere 9360 R. Within the range, rated power spans from 24.3 to 507 hp; with 330 hp, the 9230 sits in the mid-field. Directly alongside are the 3720 with 44.6 hp below and the 9620 with 507 hp above.
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Engine model | PowerTech Pluscorrect |
| Fuel | dieselcorrect |
| Power | 329.5 hp (242 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 9,001.4 cm³ (549.2 cu in)correct |
| Aspiration | turbocharged, air-to-air aftercoolingcorrect |
| Cooling | water-cooledcorrect |
| Coolant capacity | 47.3 lcorrect |
| Engine oil capacity | 32.2 lcorrect |
Dimensions and weights
| Wheelbase | 137.8 in (3500,1 mm)correct |
|---|---|
| Unladen weight | 32, 170 to 34, 510 lbscorrect |
Drivetrain and chassis
| Drive | four-wheel driveWDcorrect |
|---|---|
| Gearbox type | 24-speed manual gearboxshiftcorrect |
| Forward gears | 24correct |
| Reverse gears | 6correct |
| Tyre size | 620/70R42correct |
| System voltage | 12 Vcorrect |
Working data
| Lifting capacity | 15,300 lbs (6 940 kg)correct |
|---|---|
| Pump flow | 181.3 l/mincorrect |
| Hydraulic oil capacity | 106.4 lcorrect |
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 1,325.3 l (350 gal)correct |
| PTO speed | 1,000correct |
| Linkage category | Cat IV N/IIIcorrect |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|---|
| Predecessor | John Deere 9220correct |
| Successor | John Deere 9360 Rcorrect |
Frequently asked questions
How much power does the John Deere 9230 have?
The John Deere 9230 delivers 330 hp.
What engine does the John Deere 9230 have?
6 cylinders, 9,001 cm³ displacement, Diesel.
When was the John Deere 9230 built?
Production years: 2007-2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
