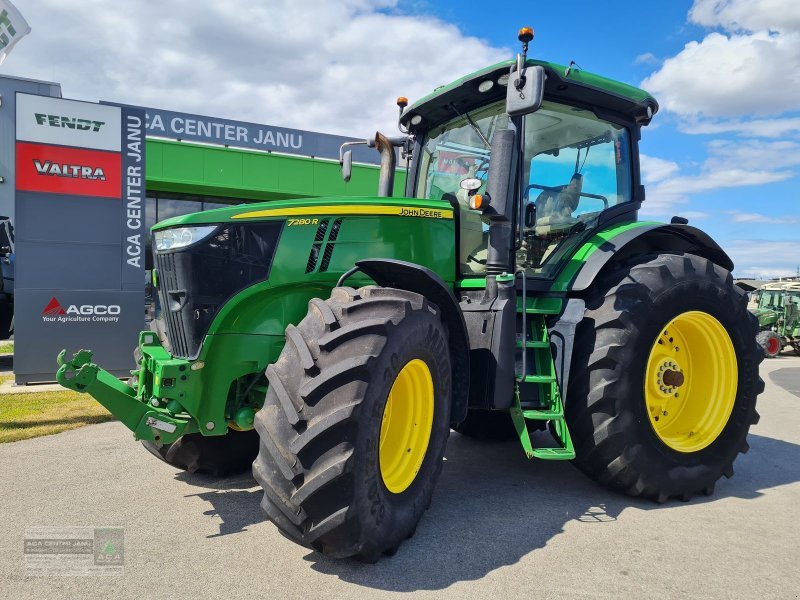

John Deere 7280R
Built: 2014-2014 · Series: Other models
← Predecessor: 7630
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Built in 2014, the John Deere 7280R is a tractor from John Deere. 235 kW is what the six-cylinder engine gets out of 9 litres. Rated power is reached at 2,100 rpm.
Drive type: MFWD. Dimensions are 5.35 m by 2.55 m. Unladen weight is 10,625 kg.
It runs on diesel; the engine is water-cooled. The predecessor was the John Deere 7630. Within the range, rated power spans from 10 to 420 kW; with 235 kW, the 7280R sits at the top. Directly alongside are the 8520T with 220 kW below and the 9230 with 242 kW above.
John Deere – other models: the collective page of tractors outside the named ranges, from the two-cylinders and the 10 series (1020, 2020) through the 40s and 50s from Mannheim to the 1023E, 3038E and 9RX, 6 to 468 kW, John Deere, Yanmar and Lombardini engines
This page gathers the John Deere tractors the register could not assign to a named range – from the successors of the two-cylinders through the European ranges from Mannheim to the compact tractors from Augusta, Georgia. John Deere, founded in 1837 as a plough smithy in Illinois, has built tractors in Waterloo, Iowa, since 1918 and since 1956, with the takeover of Lanz, in Mannheim, today the largest tractor plant outside North America. The type logic: the 10 series of 1960 (1010 to 5010) brought the four- and six-cylinders after the two-cylinder era, the 20s, 30s and 40s (1020, 2130, 2140) the Mannheim generations of the 1960s to 1980s, in which the first digit gives the size and the last ones the generation; the 50s (1750 to 3650) followed in 1986, the 55s and 6000s in 1992. Since 1992 the first digit marks the range (1 to 9) and the following ones the power – 1023E as a 1 series compact with 23 hp, 3038E as a 3 series with 38 hp, 5075E as a 5 series with 75 hp – E, M and R the equipment lines from basic to premium. The engines are Deere's own PowerTech range in the big, Yanmar in the compact and Lombardini in the smallest tractors.
Read on 3 more paragraphs
The register lists here 925 versions with 6.3 to 468.3 kW from one- to six-cylinders of 341 to 13,503 cm³, PTO outputs from 17 to 365 hp, lift capacities from 309 to 13,494 kg, unladen weights from 363 to 20,371 kg, lengths from 2,362 to 6,880 mm and widths from 1,194 to 3,952 mm.
John Deere has been the world's largest farm-equipment maker for decades; the Mannheim 6 series is Europe's best-selling tractor, the compacts from Augusta North America's.
On used tractors, originality and engine condition count on classics, transmission (Synchron or Power-Synchron) and hydraulics on the Mannheim 40s and 50s, and on the E, M and R models operating hours, transmission (PowrQuad, AutoQuad, AutoPowr), electronics and exhaust aftertreatment; parts run through the Deere network.
Sources: Kennwerte der Modelle John Deere (weitere Modelle), John Deere (Hersteller)
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Engine model | PowerTech PSXcorrect |
| Fuel | dieselcorrect |
| Power | 280 hp (235 kW)correct |
| Rated speed | 2,100correct |
| Cylinders | 6correct |
| Displacement | 8,984 cm³ (548 cu in)correct |
| Bore | 4.66correct |
| Stroke | 5.35correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,350 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 115.2correct |
| Unladen weight | 10,625 kg (27,180 lbs)correct |
| Gross vehicle weight | 16,000 kgcorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Working data
| Lifting capacity | 12,000correct |
|---|---|
| Fuel tank capacity | 133correct |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|
Other data
| Linkage category | Cat III/III Ncorrect |
|---|---|
| PTO speed | 540/1000correct |
| Predecessor | John Deere 7630correct |
More machines with this engine (John Deere PowerTech PSX, 23)
Where this model stands
Power-to-weight ratio: 22.1 kW/t (235 kW / 10.6 t)
Power class: Heavy (> 180 hp)
Stronger than 97% of the tractors in the register — out of 15,659 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the John Deere 7280R have?
The John Deere 7280R delivers 280 hp.
How much does the John Deere 7280R weigh?
The unladen weight is 10,625 kg.
What is the gross vehicle weight of the John Deere 7280R?
16,000 kg.
What engine does the John Deere 7280R have?
6 cylinders, 8,984 cm³ displacement, Diesel.
What are the dimensions of the John Deere 7280R?
5,350 mm × 2,550 mm.
When was the John Deere 7280R built?
Production years: 2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 28 individual figures for this model. They come from 3 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
