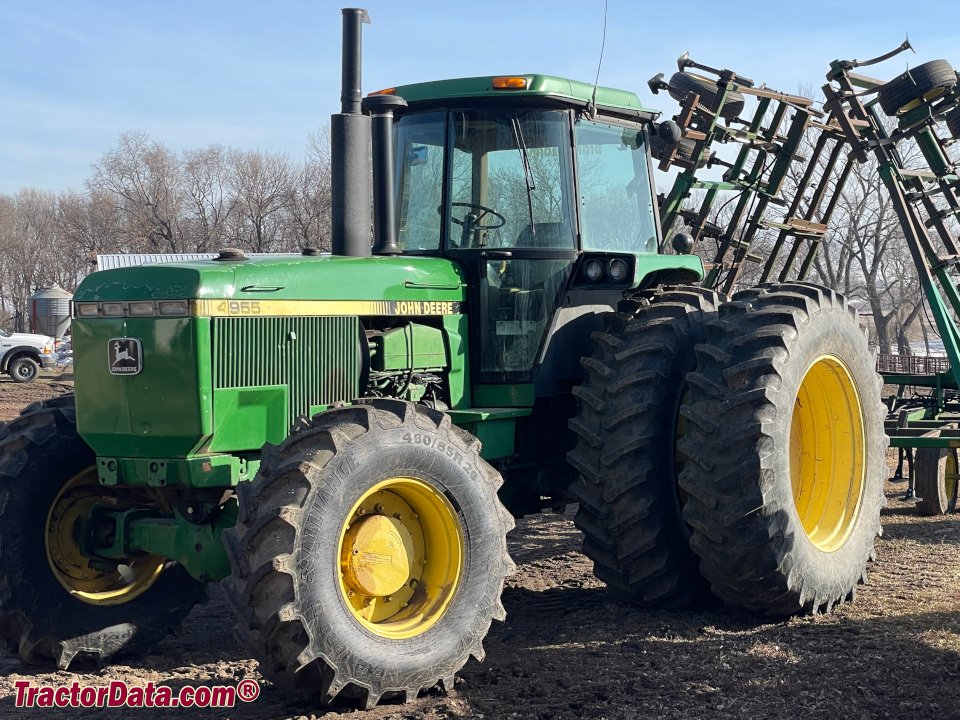

John Deere 4955
Built: 1988-1992 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 4955 rolled off the line in 1988-1992 as a tractor. The six-cylinder engine produces 149 kW. Rated speed is 2,200 rpm.
Propulsion comes from 2WD / MFWD.
It runs on diesel; the engine is water-cooled. It was replaced by the John Deere 4960. Within the range, rated power spans from 10 to 420 kW; with 149 kW, the 4955 sits at the top. Directly alongside are the 6930-MW2-4X4/265 with 144 kW below and the 6195M with 151 kW above.
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 200 hp (149 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 466 cu incorrect |
| Bore | 4.5625 in (115,9 mm)correct |
| Stroke | 4.75 in (120,6 mm)correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 117.1 in (2974,3 mm)correct |
|---|---|
| Unladen weight | 18, 370 to 24, 665 lbscorrect |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Working data
| Lifting capacity | 7,486 lbs (3395,6 kg)correct |
|---|---|
| Fuel tank capacity | 102 galcorrect |
| PTO speed | 1,000correct |
| Linkage category | Cat IIIcorrect |
Origin and approval
| Plant | Waterloo, Iowa, USAcorrect |
|---|---|
| Successor | John Deere 4960correct |
Frequently asked questions
How much power does the John Deere 4955 have?
The John Deere 4955 delivers 200 hp.
What engine does the John Deere 4955 have?
6 cylinders, Diesel.
When was the John Deere 4955 built?
Production years: 1988-1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
