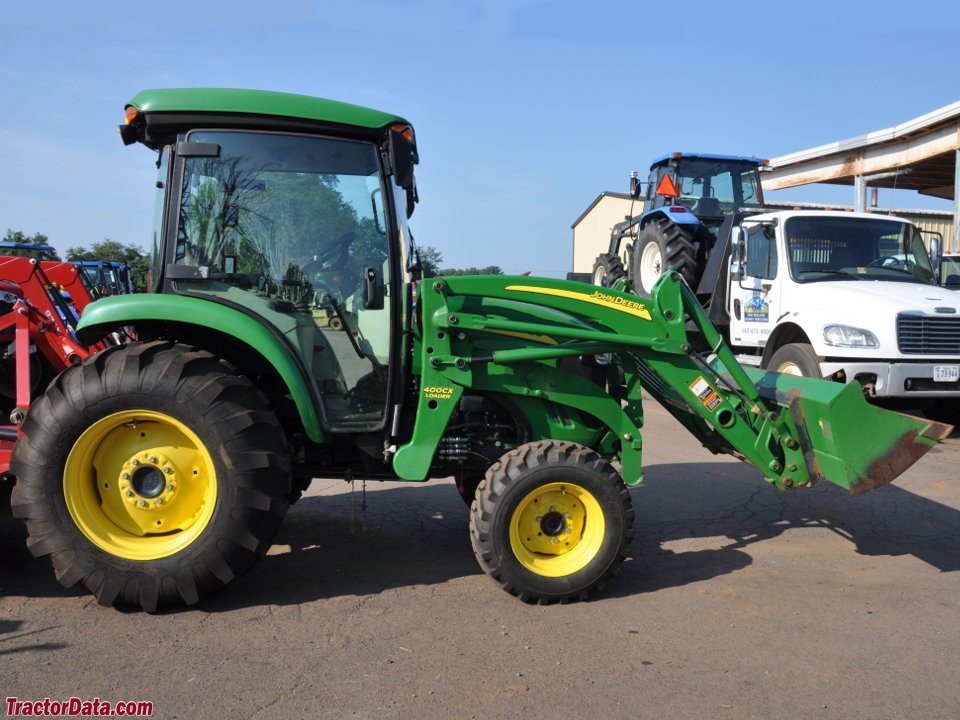

John Deere 4720
Built: 2005-2005 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 4720 rolled off the line in 2005 as a tractor. The four-cylinder engine produces 44 kW. Rated speed is 2,400 rpm.
Propulsion comes from MFWD.
It runs on diesel; the engine is water-cooled. Within the range, rated power spans from 10 to 420 kW; with 44 kW, the 4720 sits in the lower third. Directly alongside are the 5055E with 41 kW below and the 5058E with 44.4 kW above.
Technical data
Engine
| Engine make | John Deerecorrect |
|---|---|
| Engine model | 4,024 Tcorrect |
| Fuel | dieselcorrect |
| Power | 59 hp (44 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 148.9 cu incorrect |
| Bore | 3,386 in (86004,4 mm)correct |
| Stroke | 4,134 incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 71.5 in (1816,1 mm)correct |
|---|---|
| Unladen weight | 3,860 lbs (1750,9 kg)correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|
Working data
| Lifting capacity | 2,500 lbs (1 134 kg)correct |
|---|---|
| Fuel tank capacity | 14.5 galcorrect |
| PTO speed | 540correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | Augusta, Georgia, USAcorrect |
|---|
Frequently asked questions
How much power does the John Deere 4720 have?
The John Deere 4720 delivers 59 hp.
What engine does the John Deere 4720 have?
4 cylinders, Diesel.
When was the John Deere 4720 built?
Production years: 2005.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
