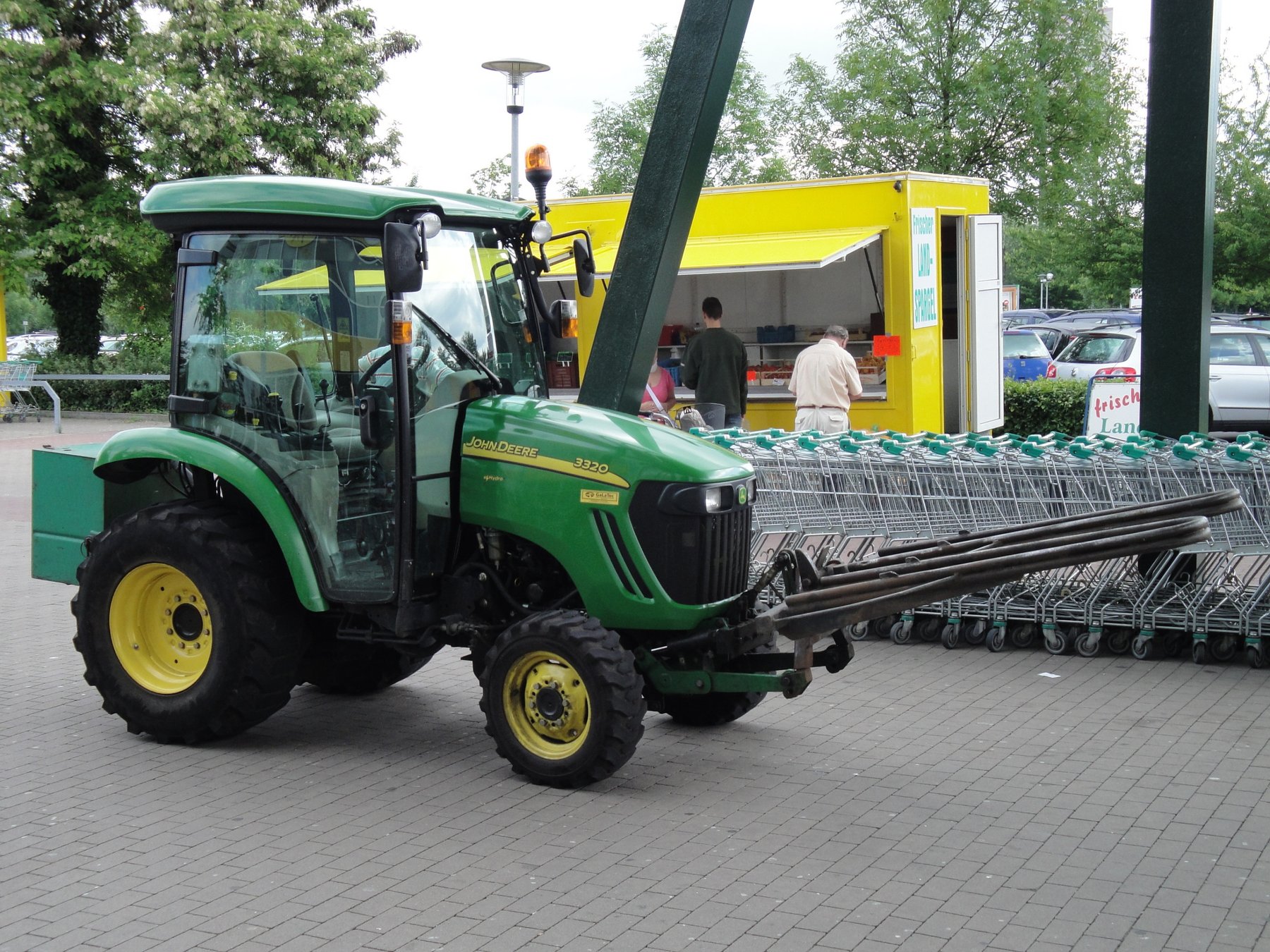

John Deere 3320
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 3320 is a tractor from John Deere. The three-cylinder engine produces 24.5 kW. Rated speed is 2,600 rpm.
Power is transmitted through a partially synchronized with power shuttle ; hydrostatic (optional) gearbox, drive type: MFWD.
It runs on diesel; the engine is water-cooled. It was replaced by the John Deere 3033 R. Within the range, rated power spans from 10 to 420 kW; with 24.5 kW, the 3320 sits at the bottom end. Directly alongside are the 3033R with 24.1 kW below and the Milénio 35C with 26 kW above.
Technical data
Engine
| Engine make | Yanmarcorrect |
|---|---|
| Engine model | 3TNV88correct |
| Fuel | dieselcorrect |
| Power | 32.5 hp (24.5 kW)correct |
| Rated speed | 2,600correct |
| Cylinders | 3correct |
| Displacement | 100.1correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 68correct |
|---|---|
| Turning circle | 9.2correct |
| Unladen weight | 2,900correct |
Drivetrain and chassis
| Drive | selectable four-wheel drivecorrect |
|---|---|
| Gearbox | partly synchromesh gearbox with power shuttle; hydrostatic transmission (optional)correct |
| Forward gears | 12; infinite (optional)correct |
| Reverse gears | 12; infinite (optional)correct |
Working data
| Lifting capacity | 2,530correct |
|---|---|
| Fuel tank capacity | 13.5correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | Japancorrect |
|---|---|
| Successor | John Deere 3033 Rcorrect |
Frequently asked questions
How much power does the John Deere 3320 have?
The John Deere 3320 delivers 32.5 hp.
What engine does the John Deere 3320 have?
3 cylinders, Diesel.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
