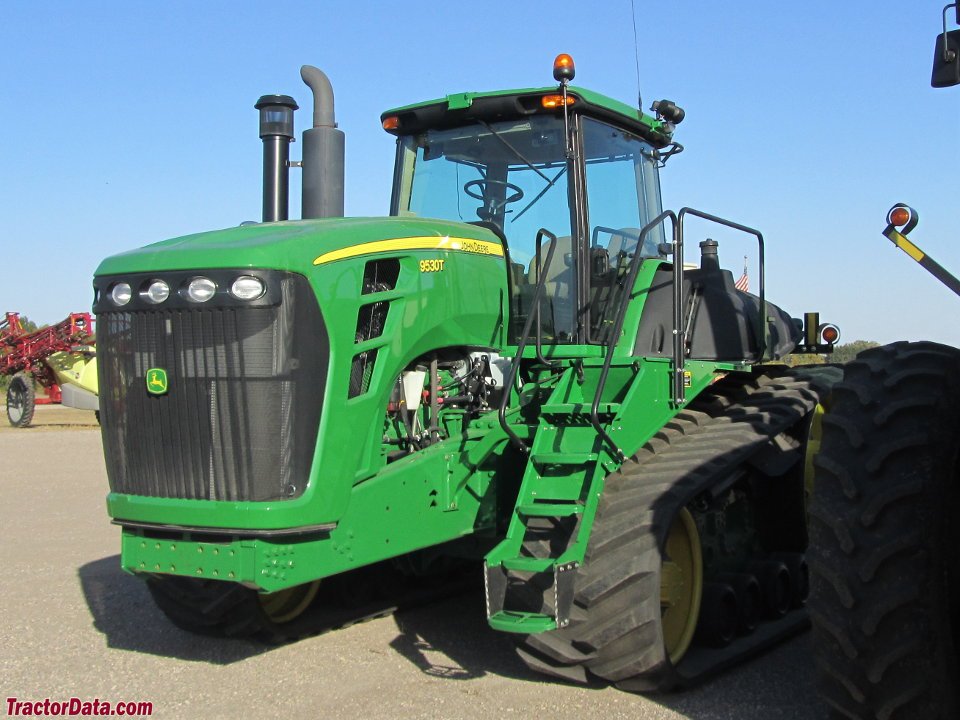

John Deere 9530T 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
As a tractor, the John Deere 9530T belongs to the John Deere 4WD Tractor series. 482 hp (354.2 kW) is what the six-cylinder engine gets out of 13.5 litres. Rated power is reached at 2,100 rpm.
Within the range, rated power spans from 50.7 to 568 hp; with 482 hp, the 9530T sits in the upper third. Directly alongside are the 9520T with 456 hp below and the 9620 with 507 hp above.
Technical data
Engine
| Engine model | PowerTech Pluscorrect |
|---|---|
| Power | 481.6 hp (354.2 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 13,501.3 cm³correct |
| Aspiration | turbocharged, air-to-air aftercoolingcorrect |
| Coolant capacity | 53.4 lcorrect |
| Engine oil capacity | 41.6 lcorrect |
Drivetrain and chassis
| Gearbox type | 18-speed automatic gearbox powershift transmissioncorrect |
|---|---|
| Forward gears | 18correct |
| Reverse gears | 6correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 182.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 102.2 lcorrect |
| Hydraulic pressure | 199.9correct |
| Fuel tank capacity | 1,249.2 lcorrect |
Frequently asked questions
How much power does the John Deere 9530T have?
The John Deere 9530T delivers 482 hp.
What engine does the John Deere 9530T have?
6 cylinders, 13,501 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
