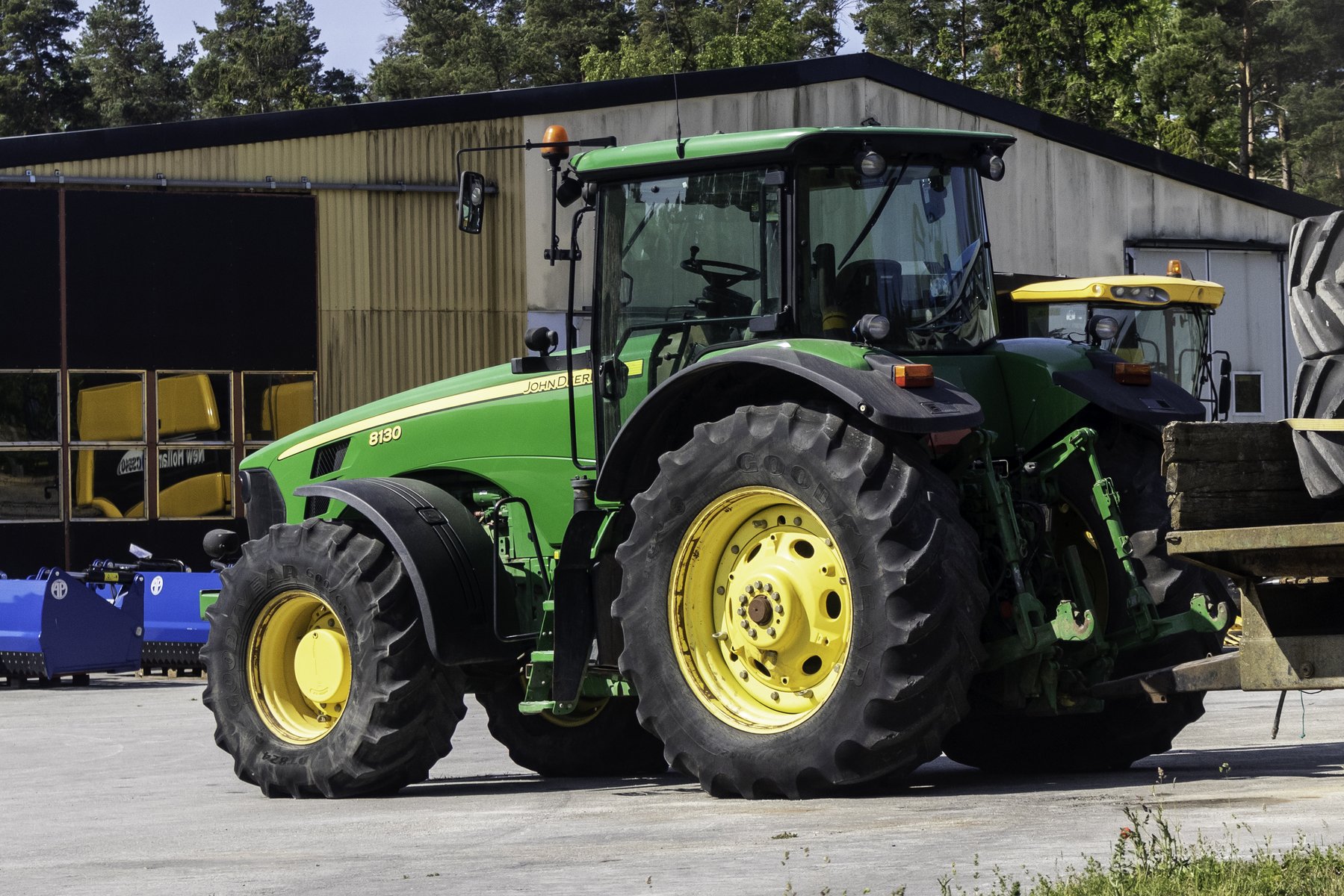

John Deere 8130 180 PTO hp (3221.7 mm) 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 8130 180 PTO hp is a tractor from the John Deere 2WD Tractor series. Power comes from a six-cylinder engine; from 9 litres it draws 228 hp (167.8 kW). Rated speed is 2,100 rpm.
Wheelbase is 3.22 m.
Within the range, rated power spans from 64.9 to 578 hp; with 228 hp, the 8130 180 PTO hp sits in the upper third. Directly alongside are the 7830 165 PTO hp with 208 hp below and the 8230T 200 PTO hp with 243 hp above.
Technical data
Engine
| Power | 228.1 hp (167.8 kW)correct |
|---|---|
| Rated speed | 2,100 rpmcorrect |
| Torque | 913.8correct |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 9,001.4 cm³correct |
| Aspiration | turbocharged, air-to-air aftercooledcorrect |
Dimensions and weights
| Wheelbase | 3,221.7correct |
|---|
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 4correct |
Working data
| Lifting capacity | 5,625 kgcorrect |
|---|---|
| Pump flow | 166.6 l/mincorrect |
| Fuel tank capacity | 681.4 lcorrect |
| PTO output | 182 hpcorrect |
Frequently asked questions
How much power does the John Deere 8130 180 PTO hp have?
The John Deere 8130 180 PTO hp delivers 228 hp.
What engine does the John Deere 8130 180 PTO hp have?
6 cylinders, 9,001 cm³ displacement.
What is the PTO output of the John Deere 8130 180 PTO hp?
PTO output is 182 hp.
How much does the rear linkage of the John Deere 8130 180 PTO hp lift?
The rear linkage lifts 5,625 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
