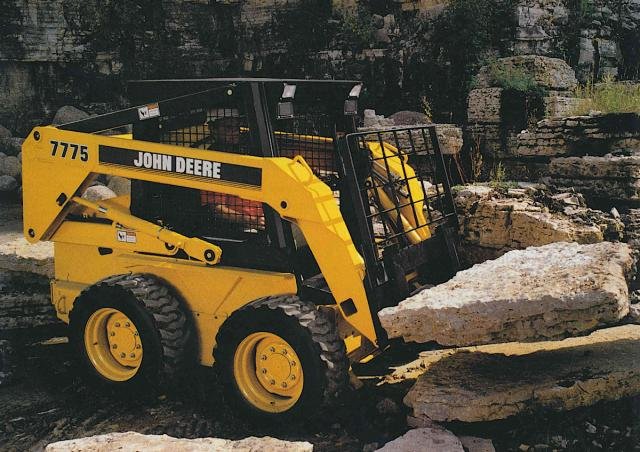

John Deere 7775

Series: John Deere Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 7775, John Deere offers a model from the John Deere Skid Steer Loader series. The engine delivers 52.7 hp (36.5 kW), has 4 cylinders, with a displacement of 2,187.7 cm³. Rated speed is 3,000 rpm. The wheelbase measures 1,082 mm. Ground clearance is 195.6 mm. Top speed is 11.9 km/h. The tank holds 54.5 litres. The pump delivers 64.4 l/min. Working pressure is 182.7 bar. The electrical system runs on 12 V. The engine fitted is the Series 220. The John Deere Skid Steer Loader series covers 29 models. Rated output within it ranges from 19.3 to 92.3 hp; the 7775 sits in the middle of that range with 52.7 hp. Its immediate neighbours are the 315 below it with 49.7 hp and the 240 Series II above it with 53.7 hp. 2153 John Deere models across 96 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine modelSeries 220correct
Power52.7 hp (36.5 kW)correct
Rated speed3,000 rpmcorrect
Cylinders4correct
Displacement2,187.7 cm³correct

Dimensions and weights

Wheelbase1,082correct
Ground clearance195.6correct

Drivetrain and chassis

Top speed11.9 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow64.4 l/mincorrect
Hydraulic pressure182.7correct
Fuel tank capacity54.5 lcorrect

Other data

Height1,902correct

Frequently asked questions

How much power does the John Deere 7775 have?

The John Deere 7775 delivers 52.7 hp.

What engine does the John Deere 7775 have?

4 cylinders, 2,188 cm³ displacement.

How fast does the John Deere 7775 go?

Top speed is 11.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
