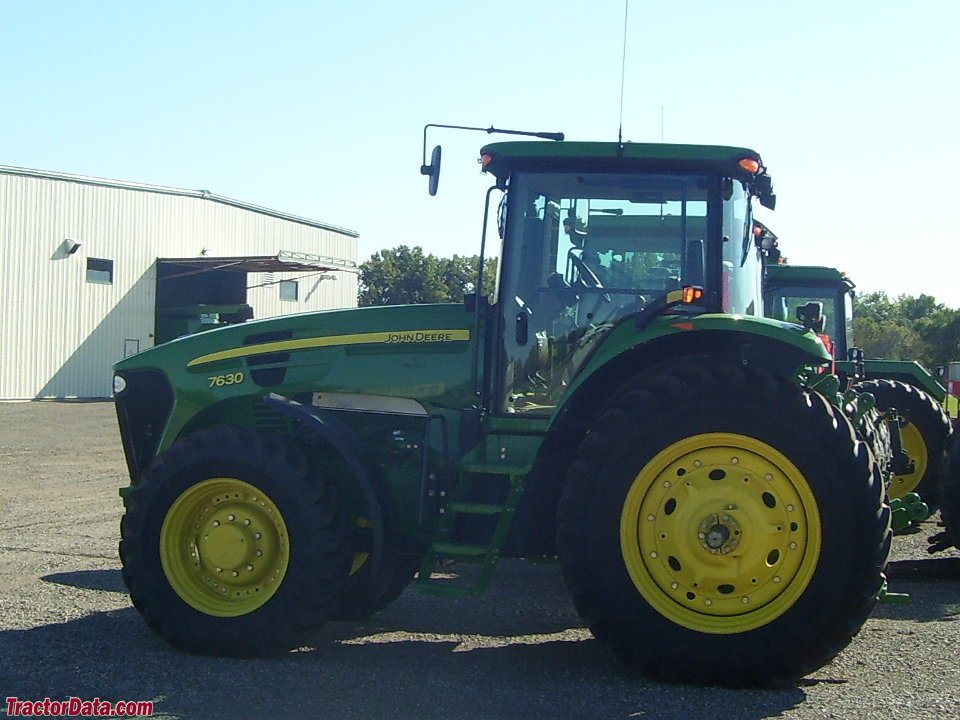

John Deere 7630 140 PTO hp 2WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The John Deere 7630 140 PTO hp is a tractor from the John Deere 2WD Tractor series. The six-cylinder engine, displacing 6.8 litres, produces 177 hp (130.5 kW). Rated speed is 2,100 rpm.
At 31 km/h, that is as fast as it goes. Wheelbase is 2.97 m.
Within the range, rated power spans from 64.9 to 578 hp; with 177 hp, the 7630 140 PTO hp sits in the upper third. Directly alongside are the 7520 with 152 hp below and the 7730 152 PTO hp with 193 hp above.
Technical data
Engine
| Power | 177.4 hp (130.5 kW)correct |
|---|---|
| Rated speed | 2,100 rpmcorrect |
| Torque | 709.1correct |
| Speed at max. torque | 1,602 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,800.6 cm³correct |
| Aspiration | turbocharged, air-to-air aftercooledcorrect |
Dimensions and weights
| Wheelbase | 2,968.8correct |
|---|
Drivetrain and chassis
| Gearbox type | PowrQuad Pluscorrect |
|---|---|
| Forward gears | 16correct |
| Reverse gears | 16correct |
| Top speed | 30.6 km/hcorrect |
Working data
| Pump flow | 122.3 l/mincorrect |
|---|---|
| Fuel tank capacity | 390.3 lcorrect |
Frequently asked questions
How much power does the John Deere 7630 140 PTO hp have?
The John Deere 7630 140 PTO hp delivers 177 hp.
What engine does the John Deere 7630 140 PTO hp have?
6 cylinders, 6,801 cm³ displacement.
How fast does the John Deere 7630 140 PTO hp go?
Top speed is 30.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
